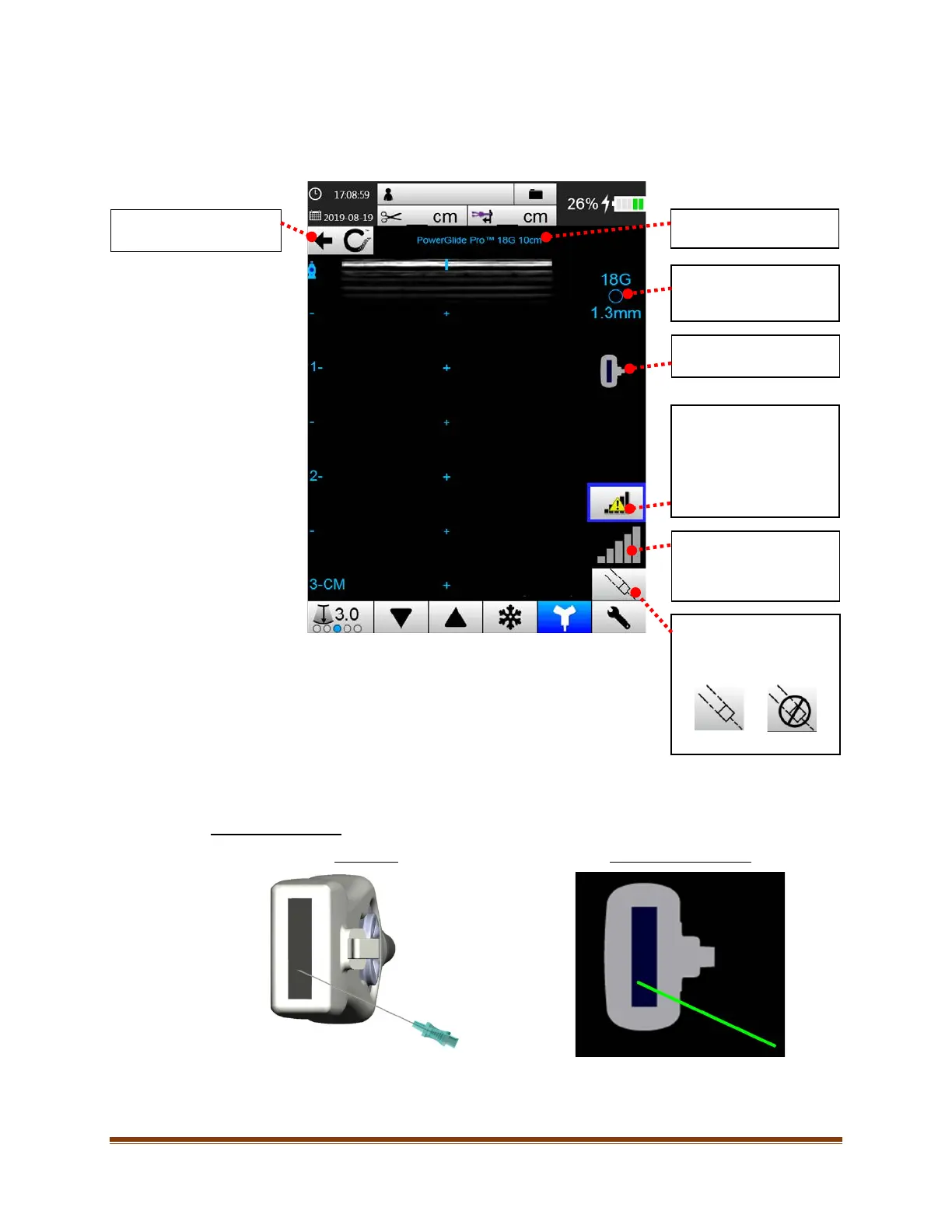

9.3. Cue™ Needle Tracking System Home Screen
9.3.1. Probe Face Overlay
The probe face overlay shows the needle position with respect to the probe face.
Out-of-Plane Insertion
Probe View
Probe Face Overlay View
The probe face overlay for an out-of-plane insertion may be turned off in the Cue™ Needle Tracking System
settings screen (see Section 11.2).
Current selected needle
information.
Catheter size of current
selected needle.
Probe face overlay.
Performance Indicator
Help
Select when Performance
Indicator is low for tips on
how to improve the
Performance Indicator.
Performance Indicator
Measures the quality of
the magnetic environment
for tracking.
Cue™ Tracking Overlay
Toggle
Toggles On/Off the Cue™
tracking overlay.
On
Off
Exit Cue™ Needle
Tracking System mode.
