In-Plane Insertion

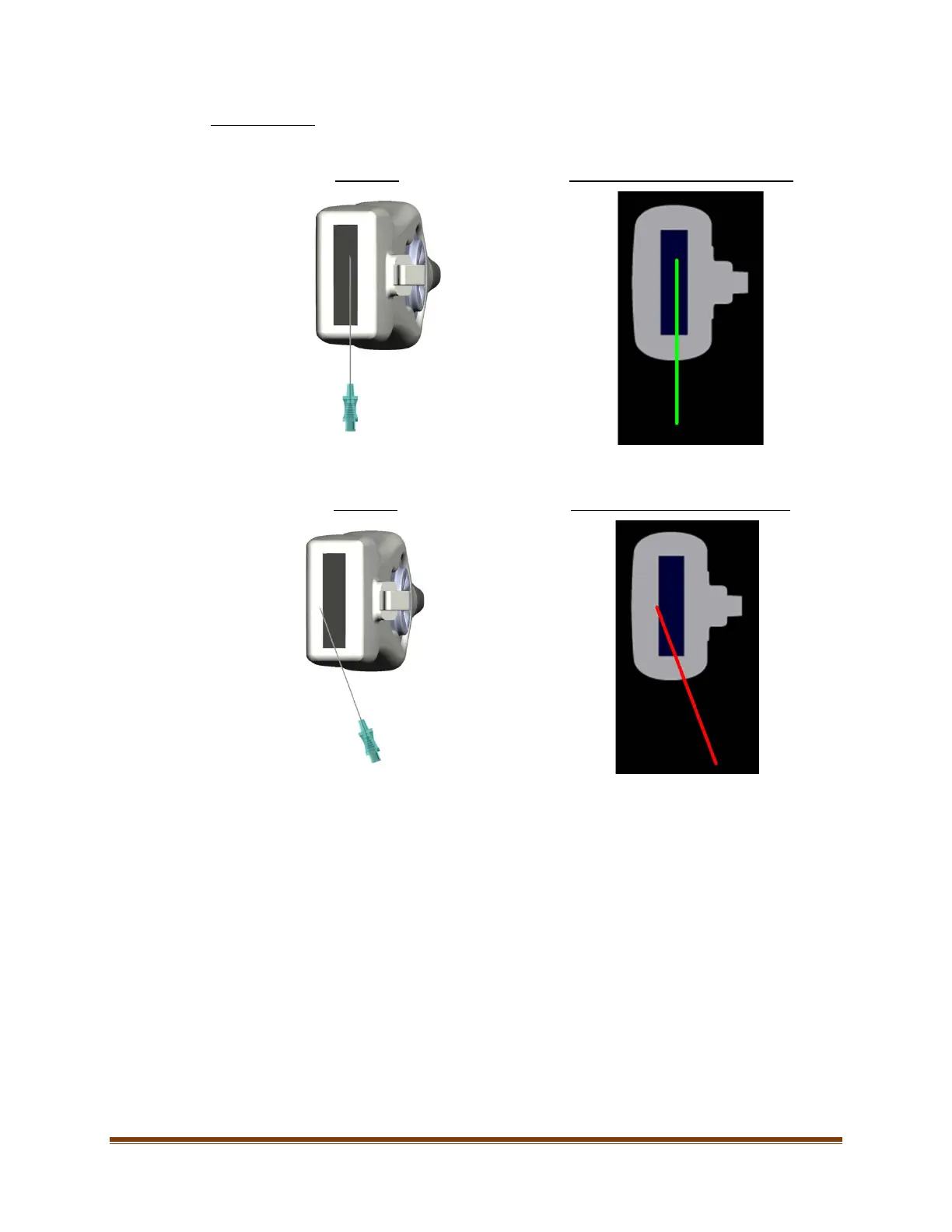

When the needle is well aligned with the probe face, the needle graphic is green.
Probe View
Probe Face Overlay View – Well Aligned
When the needle is not aligned with the probe face, the needle graphic is red.
Probe View
Probe Face Overlay View – Not Aligned
