Site~Rite
®
8 Ultrasound System Page 36

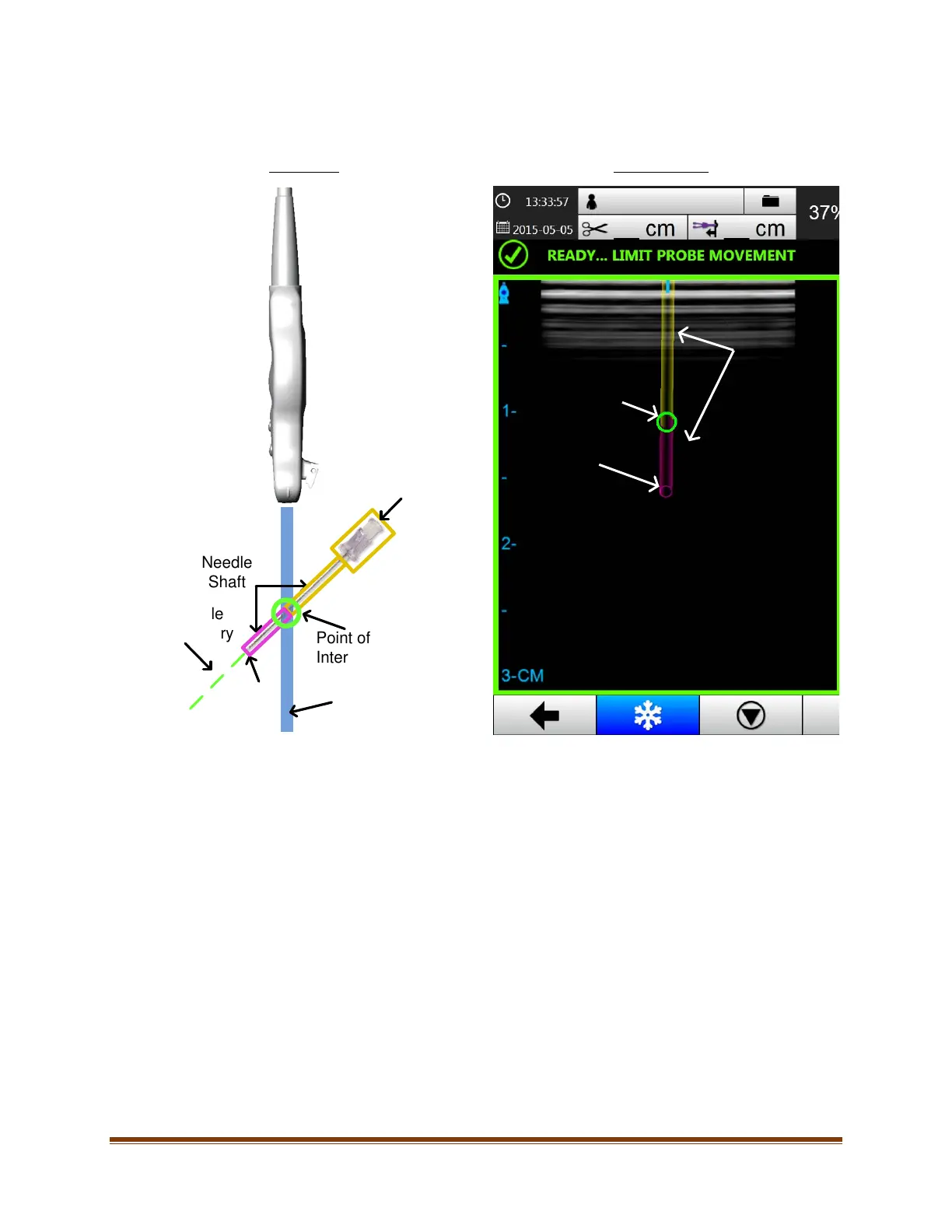

When the needle passes through the Point of Intersection Circle, the circle changes color from violet to green. Any
portion of the needle that lies beyond the Point of Intersection Circle changes color from yellow to violet.
Actual View On-Screen View
Ultrasound Beam
Needle
Hub
Needle
Shaft
Needle
Trajectory
Point of
Intersection Circle
Needle
Tip
Note: When the virtual needle image changes from yellow to violet, it does NOT necessarily mean that you have
advanced your needle beyond the target structure, it means the needle is beyond the ultrasound plane.
Caution: To avoid reduced needle tracking accuracy, prior to insertion, do NOT modify the straightness of the
needle by bending.
Caution: During insertion, use a light touch to prevent needle deflection and/or bending. Needle deflection and/or
needle bending ay reduce needle tracking accuracy.
Needle Shaft
Point of
Intersection
Circle
Needle Tip
