This is the most used setting. The user must set ZP0801– to 04 and ZP0802– to 0, 1, 2,
only. The frequency command comes from keypad potentiometer on AVI.

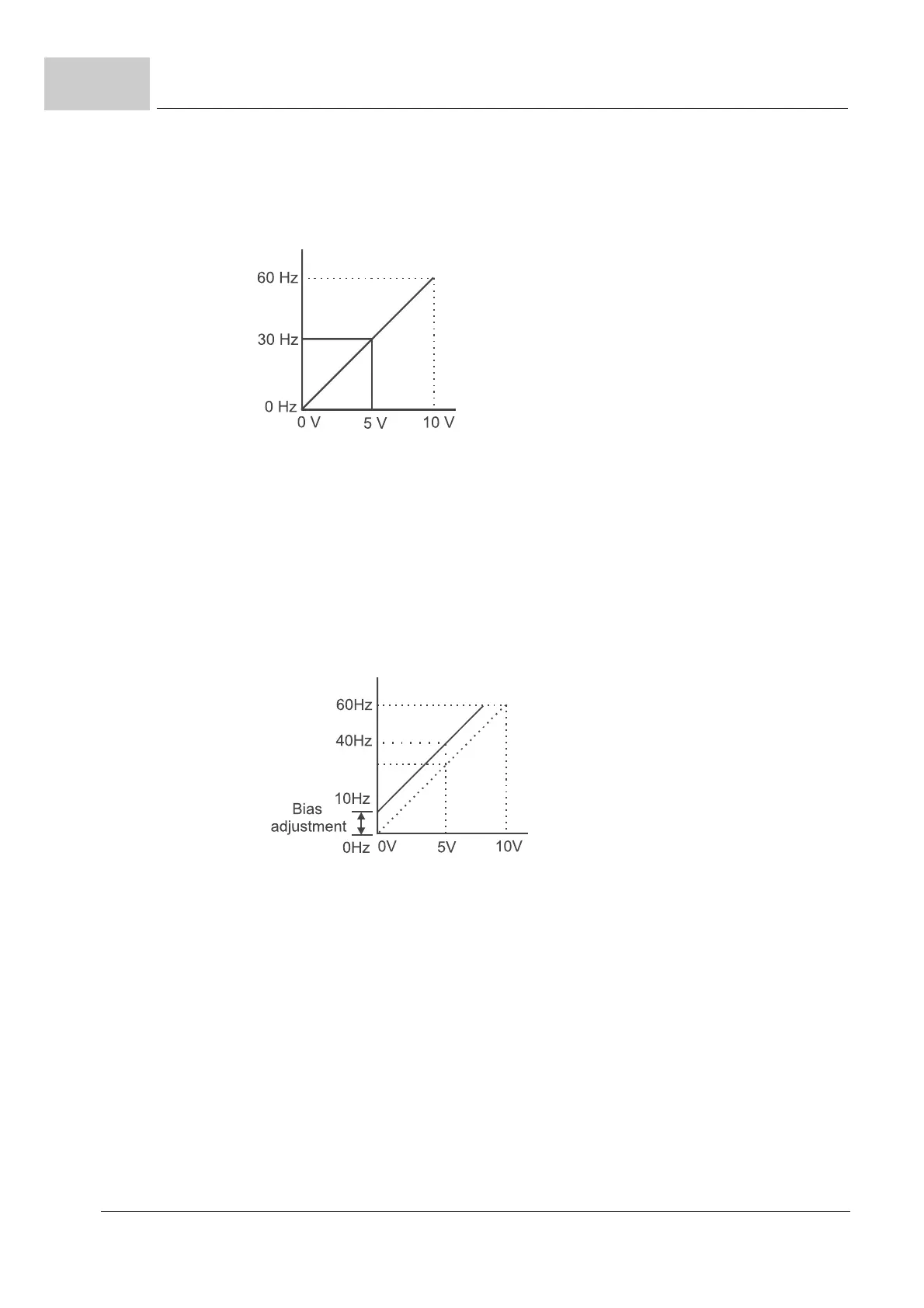

Example 2: Use of bias
This example shows the influence of changing the bias. When the input is 0 V the output
frequency is 10 Hz. At mid-point a potentiometer will give 40 Hz. Once the maximum out-
put frequency is reached, any further increase of the potentiometer or signal will not in-
crease the output frequency. (To use the full potentiometer range, please refer to
Example 3.) The value of external input voltage/current 0 to 8.33 V corresponds to the
setting frequency 10 to 60 Hz.
ZP0033–= 60 Hz
(max. output frequency potentiometer)
ZP1158–= 0 % (bias adjustment)
ZP1159–= 0 (positive bias)
ZP1160–= 100 % (input gain)
ZP1161–= 0 (no negative bias command)
ZP0033–= 60 Hz
ZP1158–= 16.7 %
ZP1159–= 0
ZP1160–= 100 %
ZP1161–= 0
Gain: 100 %
Bias adjustment ZP1158–:
10Hz
60Hz
--------------
Gain
100%
---------------
---------------
100%⋅ 16 7%,=
