Instruction handbook CANopen slave BM4-O-CAN-03
Document no. 5.02014.06
5MOUNTING AND INSTALLATION
In this chapter we describe the mechanical mounting and the electrical installation of a
option module CANopen slave.
The mounting/installation exists of the following
steps:
1 adju
st at the plug-in module address and baud rate (transfer rate).
2 m
ount plug-in module.
3 co
nnect plug-in module with CANopen bus cables (and possibly with terminated plug).
5.1 General safety instructions
h please regard to the information in chapter ZBasic Safety Instructions– from page 9.
h pa
y attention to all areas at the b maXX-device, which could be dangerous for you
while mounting.

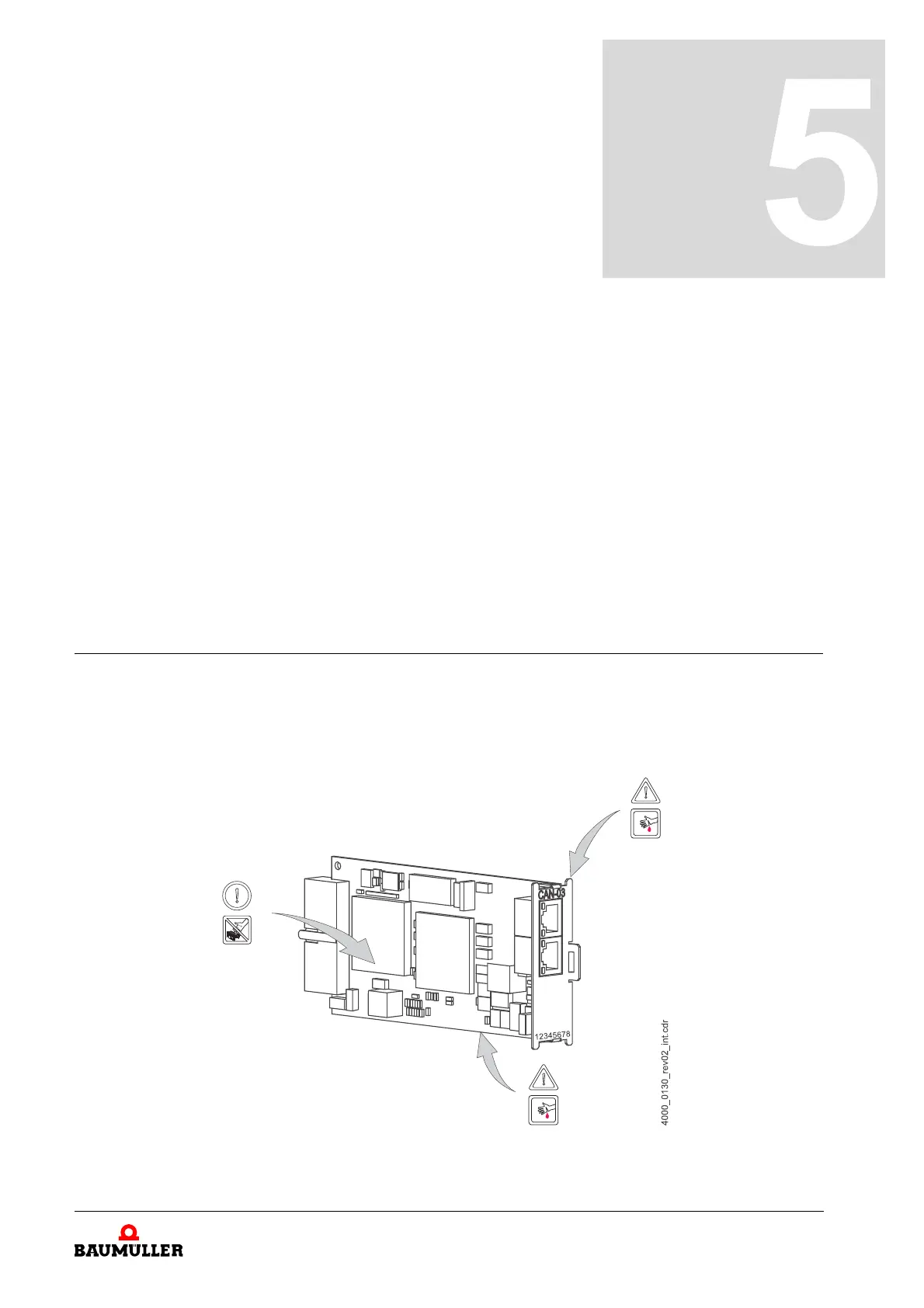

The following figure gives a view of the existin
g hazard areas at the plug-in module.
Figure 4: Hazard areas
