Construction
Instruction handbook CANopen slave BM4-O-CAN-03
Document no. 5.02014.06 Baumüller Nürnberg GmbH
22
of 68
4.1
4.1.2 Slots
You can only insert 1 option module CANopen slave into the slot at the b maXX 4400
(slot H, as far as this is not already assigned by other plug-in modules). In case there is
another module in slot H, mount the module into another free and suitable slot (see ZFig-
ure 6– on
page 27 or manual of the accordant module).

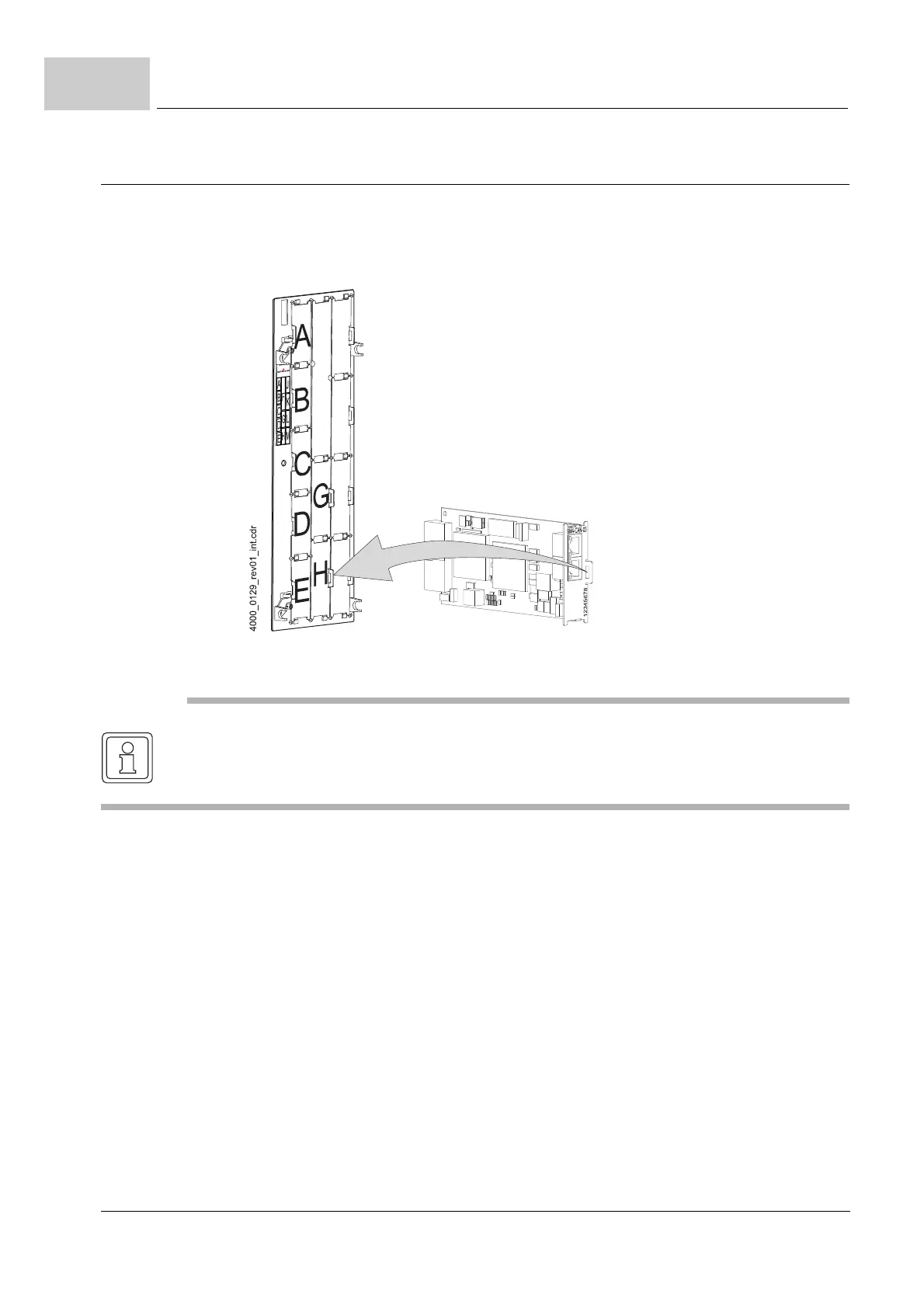

Figure 2: Controller unit, slot H
NOTE
In case you insert a Baumüller plug-in module into an unsuitable slot, it will not operate. We
have assured, that the plug-in module is not damaged thereby.
