Instruction handbook CANopen slave BM4-O-CAN-03
Document no. 5.02014.06
63
of 68
D
D.3.1 Adjusting of baud rate
D.3.1.1 Option module CANopen slave for b maXX PLC

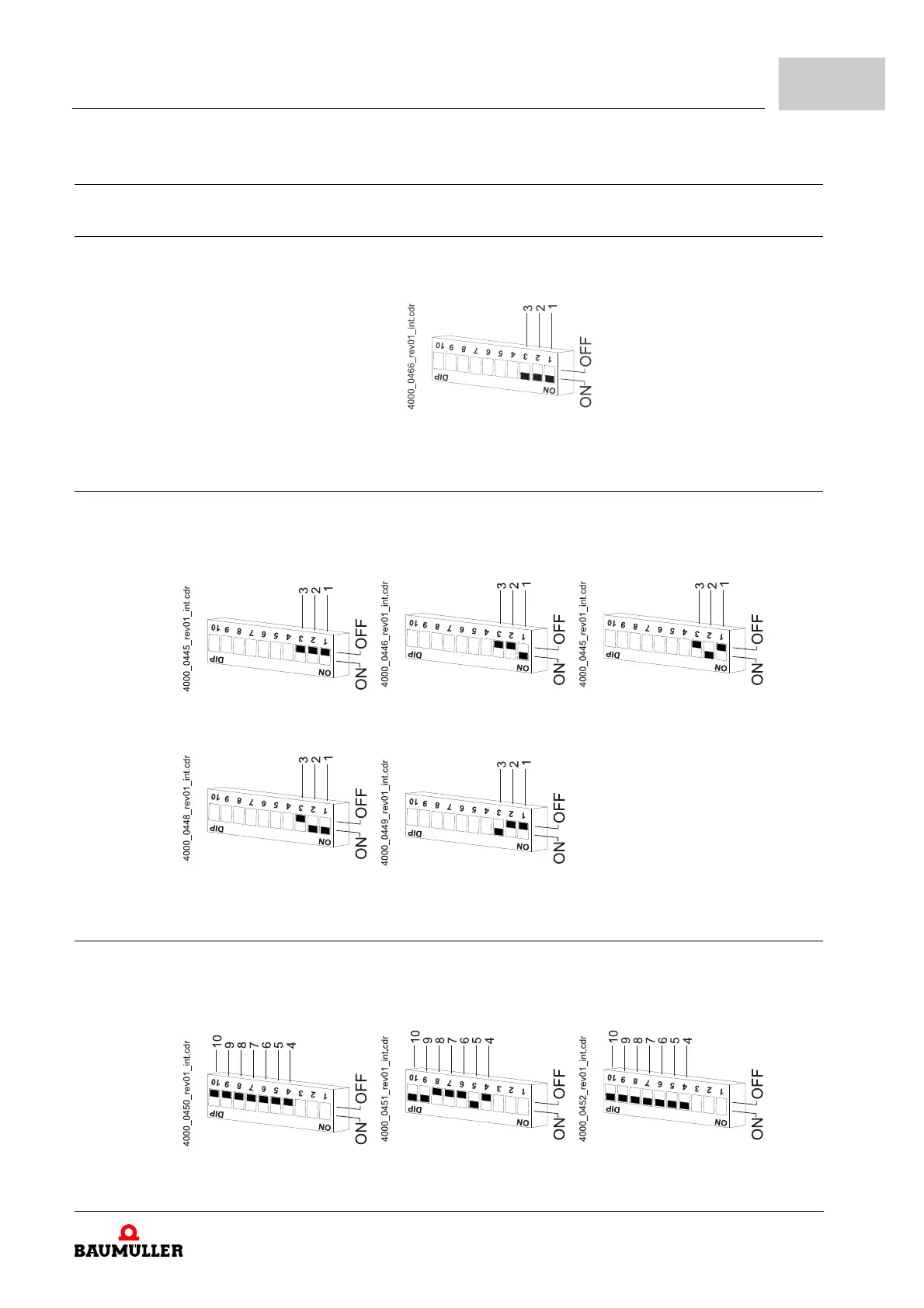

The baud rate is set via b maXX PLC while initialization. The DIP switches 1, 2 and 3 must be
ON.
D.3.1.2 Option module CANopen slave for b maXX controller
20 kBit/s: 125 kBit/s: 250 kBit/s:
500 kBit/s: 1 MBit/s:
The baud rate is adjusted by using the DIP switch 1 to 3 on the module.
D.3.2 Adjusting of address
Module ID = 1 (DIP = 0) Module ID = 99 (DIP = 98) Module ID = 1 (DIP = 127)
The address is adjusted by using the DIP switch 4 to 10
on the module.
