Pin assignment
Instruction handbook CANopen slave BM4-O-CAN-03
Document no. 5.02014.06 Baumüller Nürnberg GmbH
62
of 68
D.2

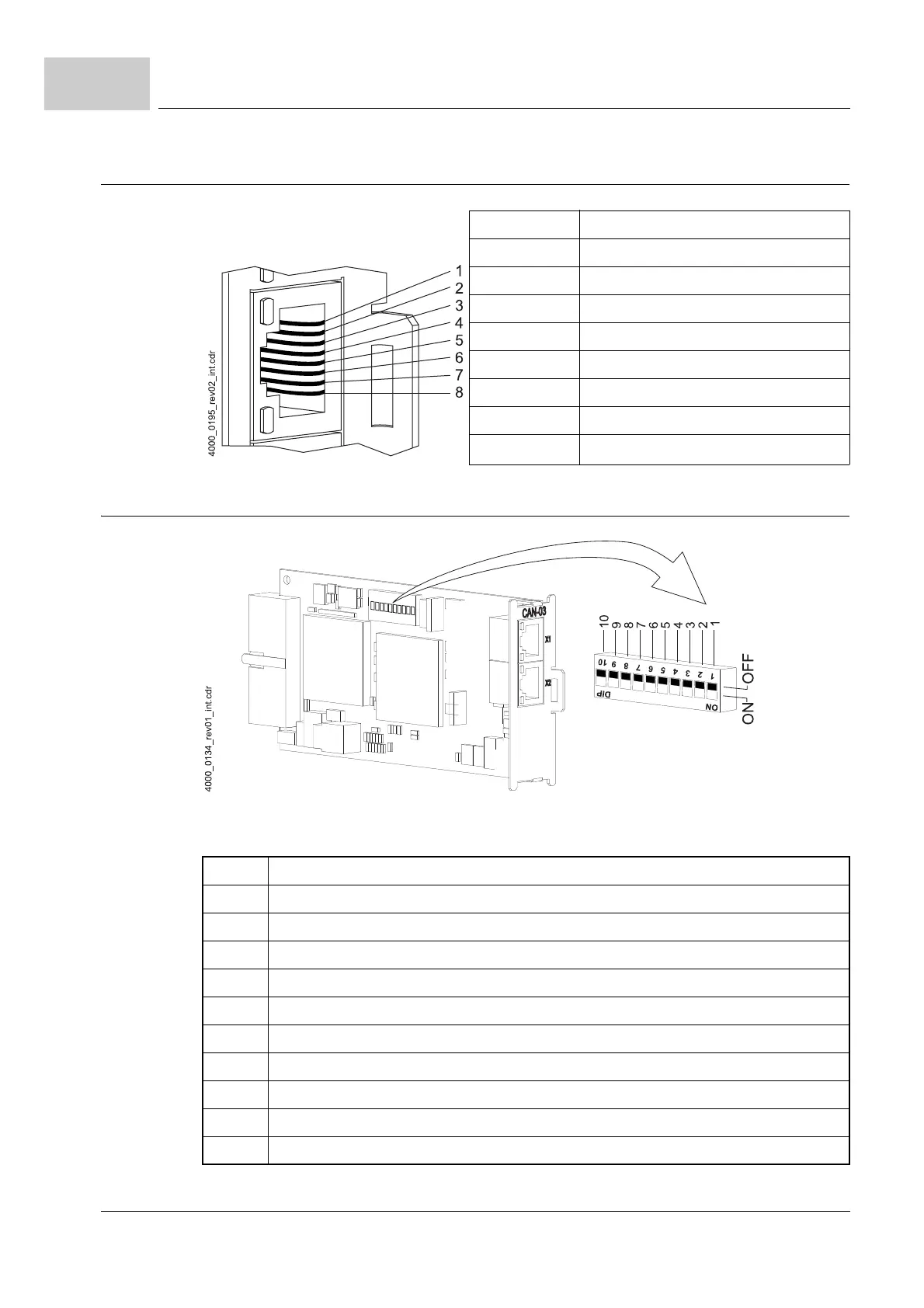

D.2 Pin assignment
Pin no. Pin assignment
RJ45 female 8-pole 1 CAN high
2 CAN low
3 Ground (GND)
4 reserved
5 reserved
6 not connected
7 Ground (GND)
8 not connected
D.3 DIP switch
Figure 17: DIP switch S500
Pin no. Pin assignment
1 Baud rate-Settings Bit 0 above = 0, beneath (ON) = 1
2 Baud rate-Settings Bit 1 above = 0, beneath (ON) = 1
3 Baud rate-settings Bit 2 above = 0, beneath (ON) = 1
4 Bus-Address Bit 0 above = 0, beneath (ON) = 2
0
5 Bus-Address Bit 1 above = 0, beneath (ON) = 2
1
6 Bus-Address Bit 2 above = 0, beneath (ON) = 2
2
7 Bus-Address Bit 3 above = 0, beneath (ON) = 2
3
8 Bus-Address Bit 4 above = 0, beneath (ON) = 2
4
9 Bus-Address Bit 5 above = 0, beneath (ON) = 2
5
10 Bus-Address Bit 6 above = 0, beneath (ON) = 2
6
