48
926.116.5 - en
INSTRUCTIONS FOR FITTERS
0503_0911/CG1644
L max = 15m L max = 14 m
0503_2201/CG1643
L max = 10 m
(L1 + L2) max = 30 m

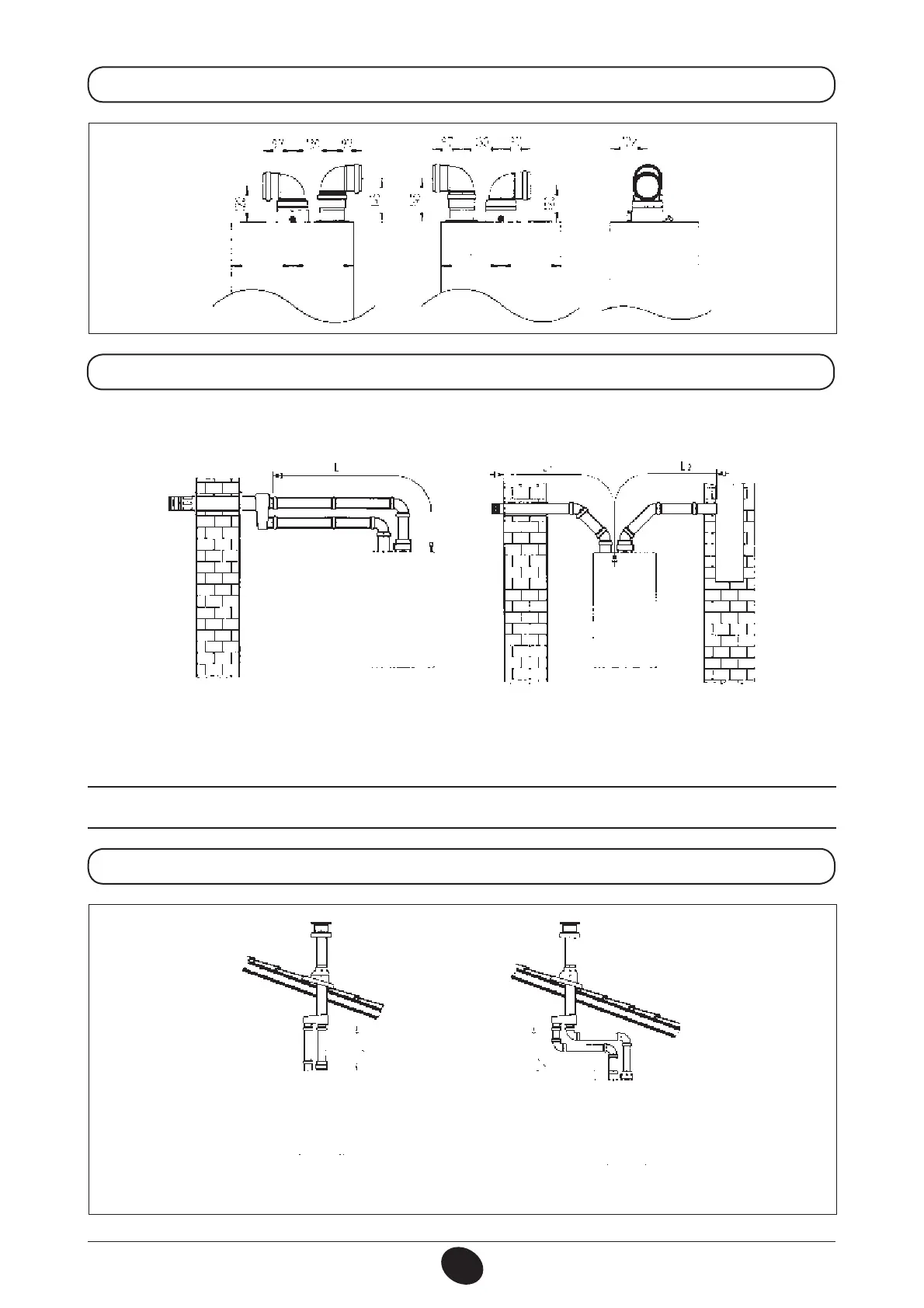

16.5 SEPARATE HORIZONTAL FLUE TERMINALS INSTALLATION OPTIONS
IMPORTANT -
Make sure there is a minimum downward slope towards the outside of 1 cm per metre of duct length.
If the condensate collection kit is installed, the discharge duct must slope down towards the boiler.
N.B.: For the C52 type, do not t the ue and air duct terminals on opposite walls of the building. The inlet ue must
have a maximum length of 10 metres for C52 fumes outlets.
If the discharge duct is longer than 6 metres, install the condensate collection kit, supplied as an accessory, near the
boiler.
16.4 DIMENSIONS OF SEPARATE OUTLETS
16.6 SEPARATE VERTICAL FLUE INSTALLATION OPTIONS
CG_2124 / 0905_2305
