INSTRUCTIONS FOR FITTERS
0605_2204 / CG_1808

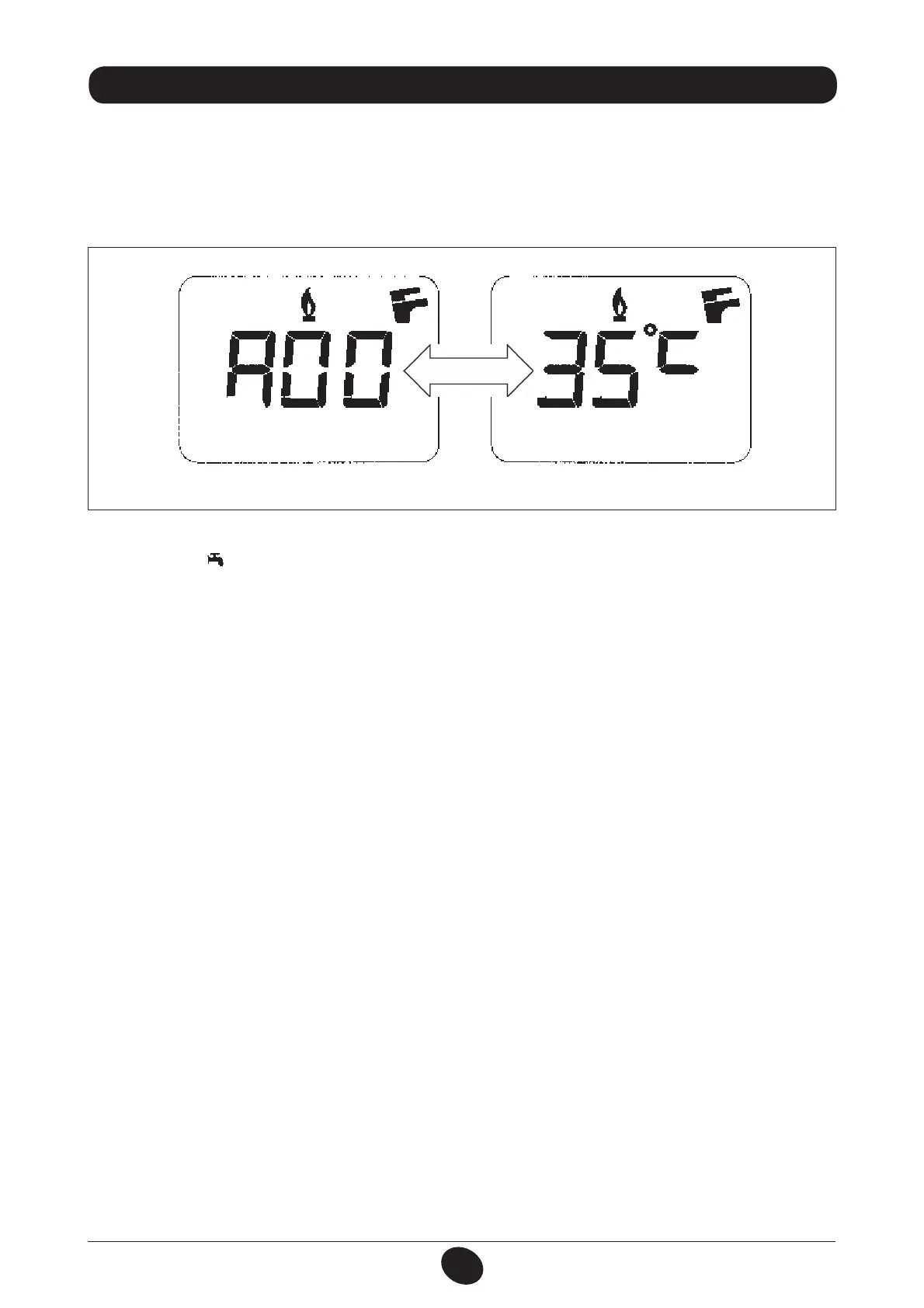

Figure 12
20. VISUALISATION OF PARAMETERS ON THE DISPLAY (“INFO” FUNCTION)
Press “i” for at least 5 seconds to visualise certain boiler information on the display on the front panel of the boiler.
N.B.: when the “INFO” function is enabled, the message “A00”, alternating with the boiler delivery temperature,
is shown on the display (figure 12):
Press buttons (+/-) to display the following information:
A00: current DHW temperature (°C);
A01: current external temperature (°C) (with external probe connected);
A02: current (%) at modulator (100% = 230 mA NATURAL GAS - 100% = 310 mA LPG);
A03: power range (%) (MAX R);
A04: heating setpoint temperature (°C);
A05: current heating delivery temperature (°C);
A06: DHW temperature setpoint value (°C);
A07: ame signal % value (0-100%);
A08: value (l/minx10) of the DHW ow rate;
A09: last error that occurred in the boiler;
This function remains active for 3 minutes. It is possible to interrupt the “INFO” function in advance by holding down
the button ( ) for at least 5 seconds, or turning off the power to the boiler.
