E01 drives

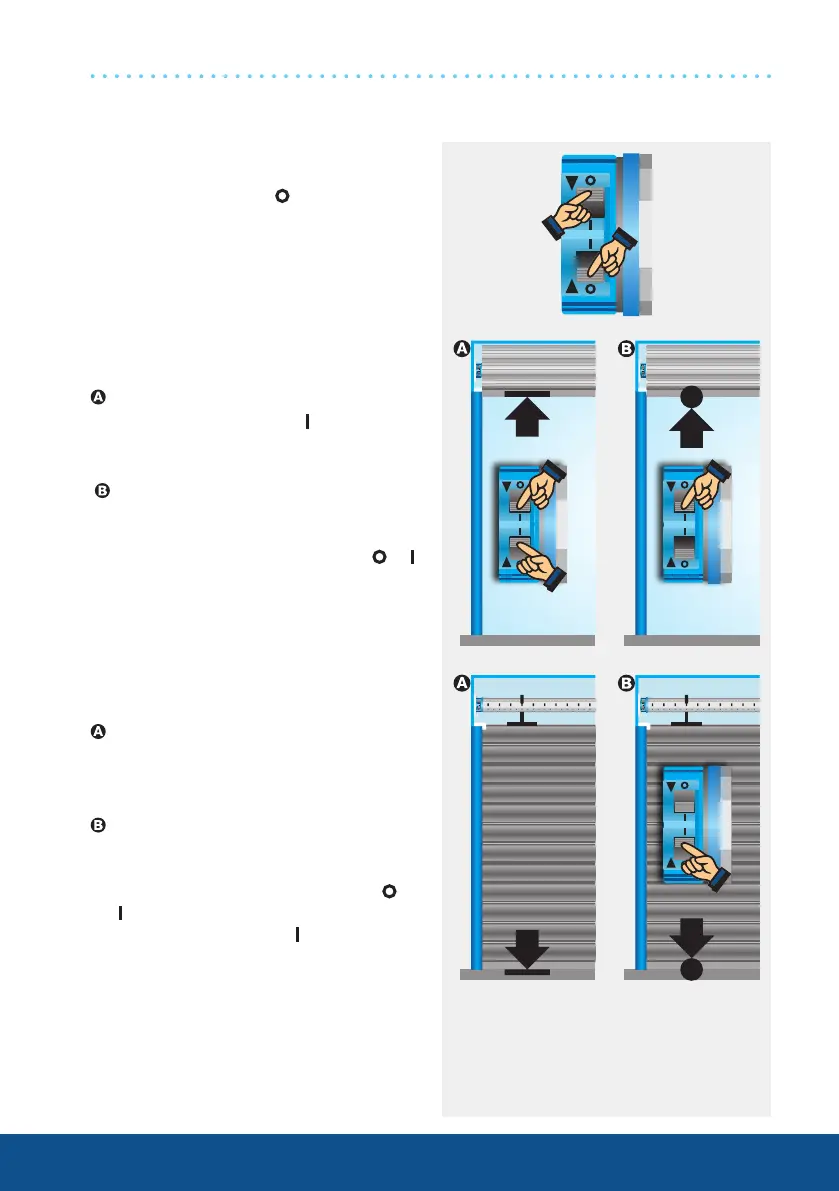

Setting the limit positions with the switches
1. Deleting both limit positions
with the switches
Set both switches to and execute a
short drive command.
3. Setting the lower limit position
with the switches
To lower stop
Run the roller shutter downwards
until the drive switches off automati-
cally.
To lower point
Run the roller shutter to the
desired lower position and switch
the corresponding switch from
to
(when programming the upper stop,
both switches are at , so this is not
possible).
2. Setting the upper limit position
with the switches
To upper stop
Set both switches to
and run the
roller shutter towards the upper stop
until the drive stops automatically.
To upper point
Run the roller shutter to the
desired upper position and switch
the corresponding switch from
to .
