Roller shutter Drives
Setting the limit positions using the operator control

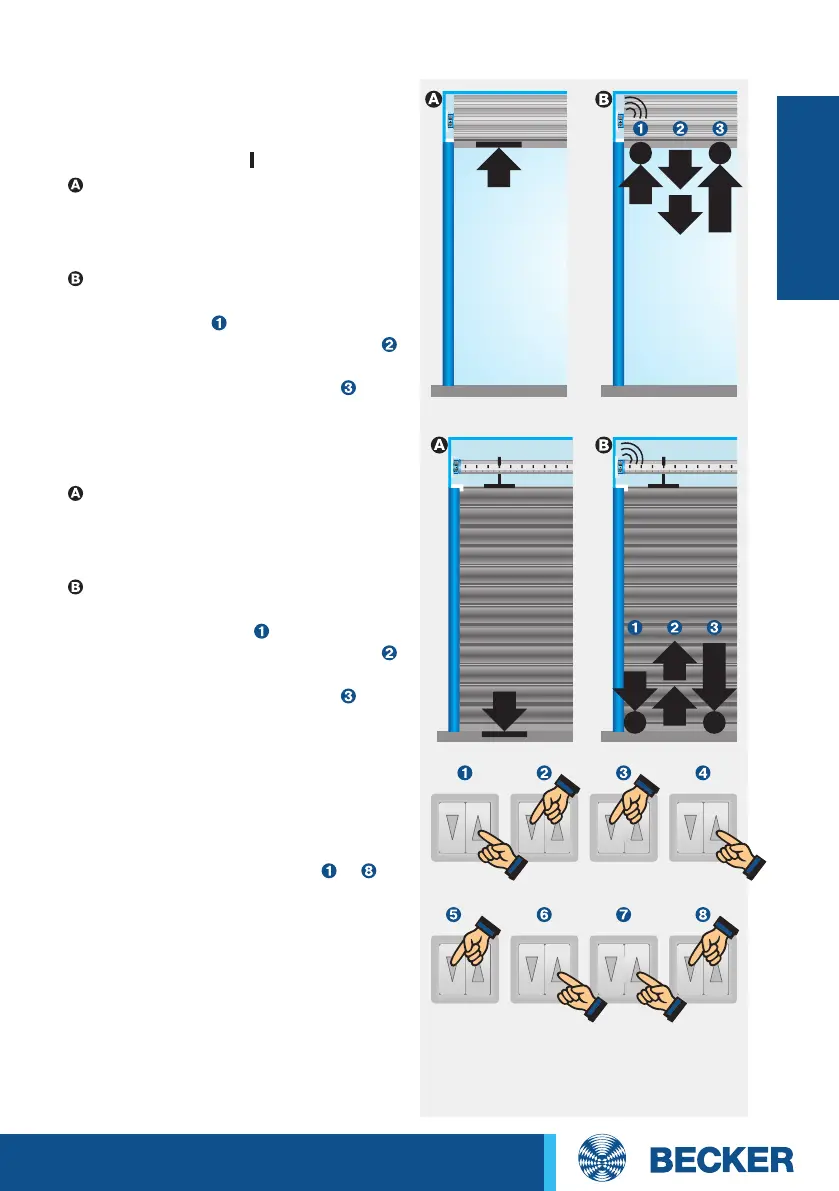

1. Setting the upper limit position
using the operator control
Set both switches on the drive to the
programming setting ( ).
To upper stop
Run the roller shutter towards the
upper stop until the drive stops
automatically.
To upper point
Run the roller shutter to the upper
limit position
. Now run the roller
shutter downwards briefly twice,
then back up until the drive stops
automatically and clicks once .
2. Setting the lower limit position
using the operator control
To lower stop
Run the roller shutter towards the
lower stop until the drive stops
automatically.
To lower point
Run the roller shutter to the
lower limit position
. Now move the
roller shutter up briefly twice,
then back down until the drive stops
automatically and clicks once .
3. Deleting the limit positions
using any operator control
Run the drive for 6 seconds in the UP or
DOWN direction.
Then rapidly run through steps
to of
the deletion sequence shown opposite
until the drive clicks twice.
When using operator controls with
maintained operation mode, a STOP
command must be executed after every
short drive command.
Short! Short! Short! Short!
Short! Short! Short! Press
and
hold!
1x click
1x click
