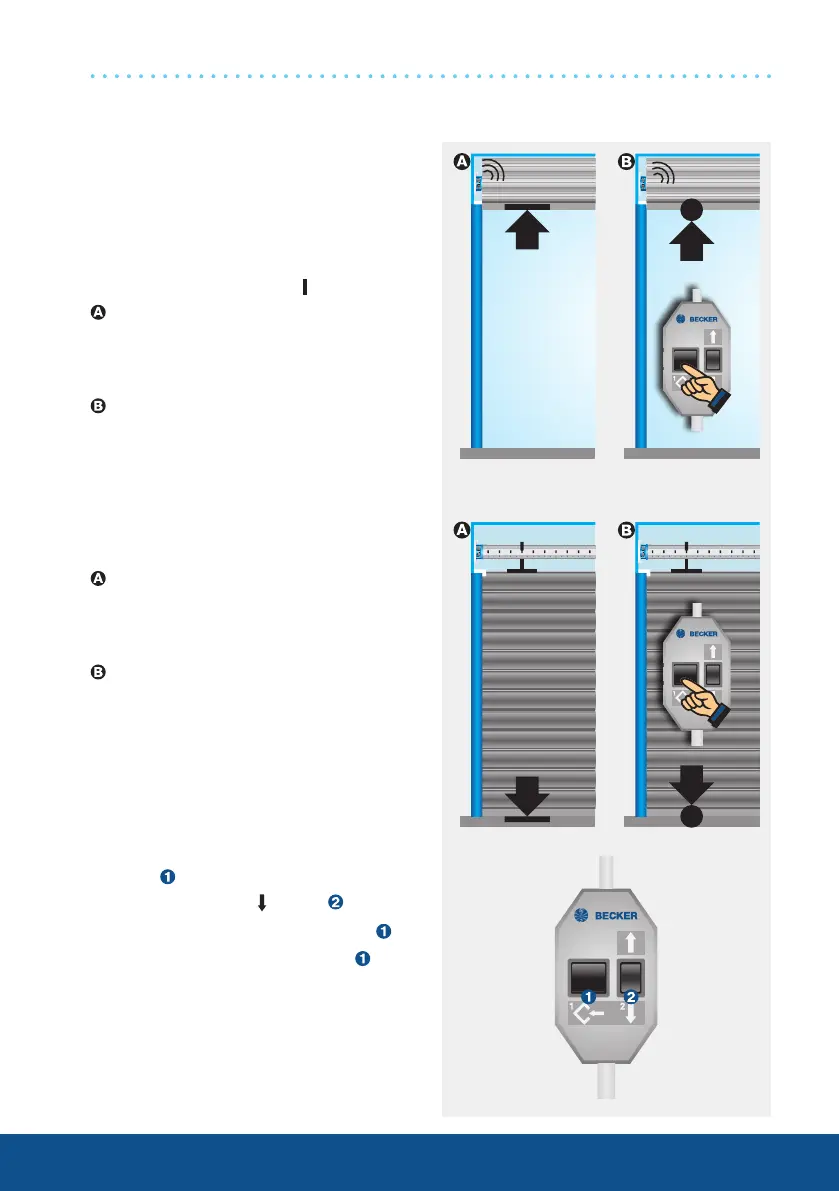

Setting the limit positions using the programming unit
1. Setting the upper limit position
using the programming unit
Connect the wires in the connecting
cables of the drive to the wires
of the same colour in the Becker
programming unit. Set both switches to
the programming setting (
).
To upper stop
Run the roller shutter towards the
upper stop until the drive stops
automatically.
To upper point
Run the roller shutter to the desired
position and press the programming
button on the programming unit until
the drive clicks once.
2. Setting the lower limit position
using the programming unit
To lower stop
Run the roller shutter towards the
lower stop until the drive stops
automatically.
To lower point
Run the roller shutter to the desired
position and press the programming
button on the programming unit until
the drive clicks once.
3. Deleting the limit positions
using the programming unit
- Press and hold the programming
button
- Press and hold the button
- Release the programming button
- Press the programming button again
until the drive clicks twice.
If the drive is situated between the
limit positions, both limit positions are
deleted. If the drive is situated in one of
the limit positions, only this position will
be deleted.
E01 drives
1x click 1x click
