Becker M User Manual

96
E12 drives

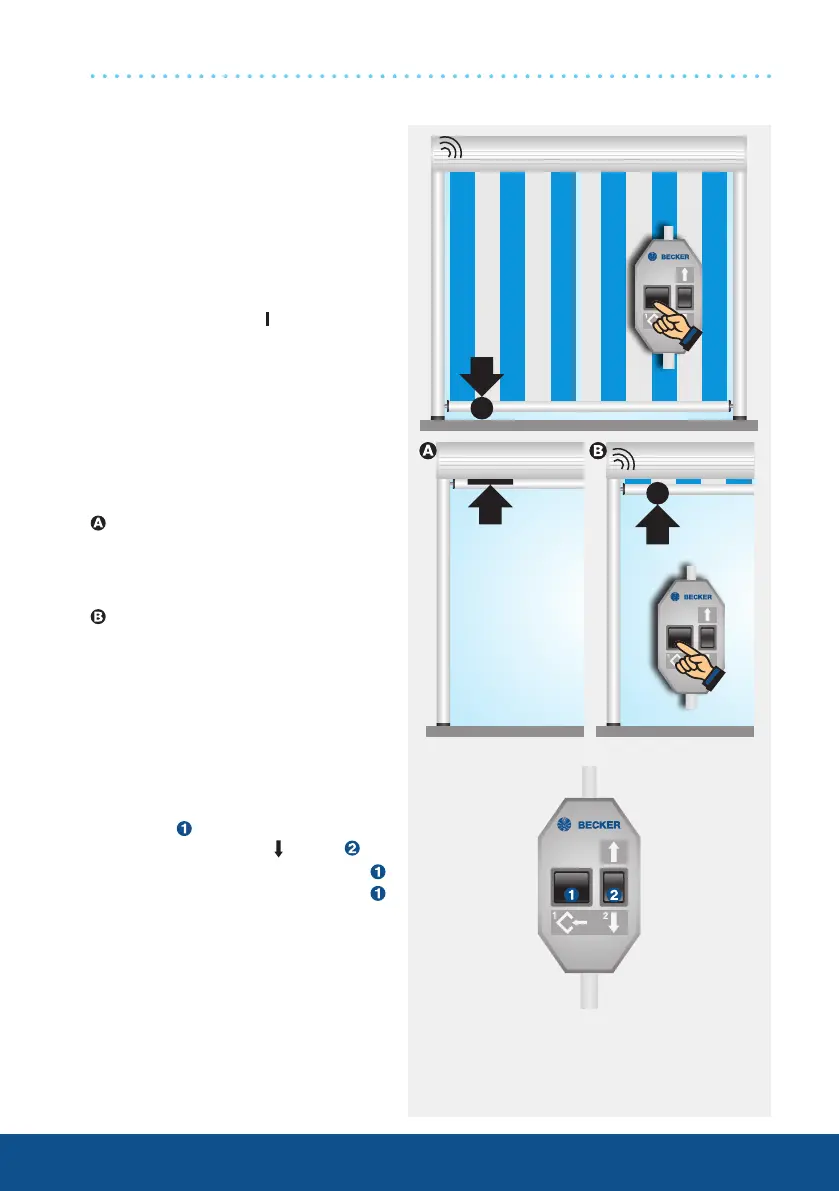

Setting the limit positions using the programming unit
1. Programming the Extend
limit position with the
programming unit
Connect the wires in the connecting
cables of the drive to the wires of
the same colour in the Becker
programming unit.
At least one switch on the drive
head must be in the
position. Run
the shading solution to the desired
position and press the programming
button until the drive clicks once.
2. Programming the Retract
limit position with the
programming unit
To Retract limit position stop
Run the shading solution to-
wards the stop until the drive
stops automatically.
To Retract limit position point
Run the shading solution to the
desired upper position and press
the programming button on the
programming unit until the drive
clicks once.
3. Deleting the limit positions
using the programming unit
• Press and hold the programming
button
• Press and hold the button
• Release the programming button
• Press the programming button
again until the drive clicks twice.
If the drive is situated between the
limit positions, both limit positions
are deleted. If the drive is situated
in one of the limit positions, only this
position will be deleted. In terms of
special functions, the drive reverts
to the as-delivered condition.
1x click
1x click
