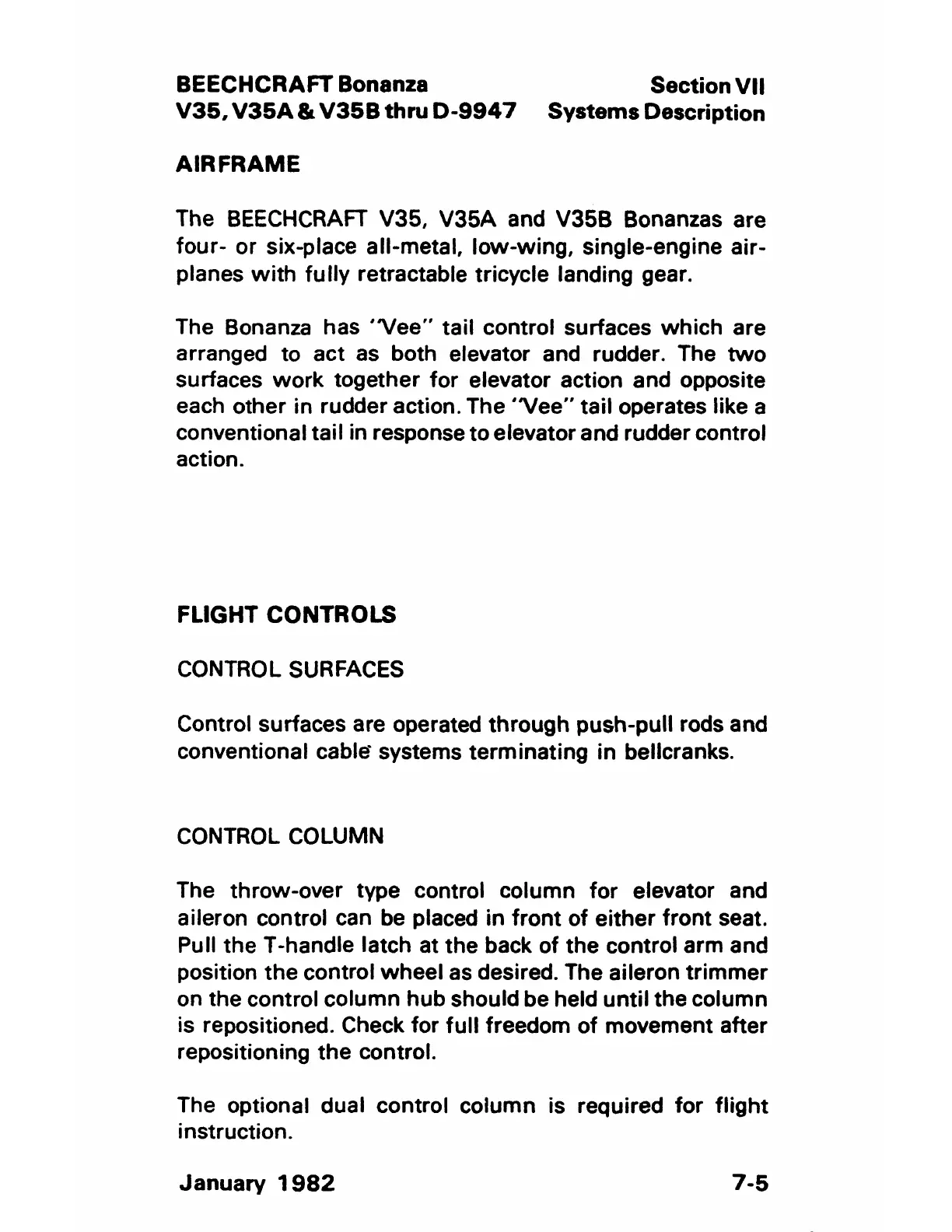

BEECHCRAFT Bonanza
V35, V35A& V35B thru D-9947
AIRFRAME
Section VII
Systems Description
The BEECHCRAFT V35, V35A and V35B Bonanzas are
four- or six-place all-metal, low-wing, single-engine air-
planes with fully retractable tricycle landing gear.
The Bonanza has "Vee" tail control surfaces which are
arranged to act as both elevator and rudder. The two
surfaces work together for elevator action and opposite
each other in rudder action. The "Vee" tail operates like a
conventional tail in response to elevator and rudder control
action.
FLIGHT CONTROLS
CONTROL SURFACES
Control surfaces are operated through push-pull rods and
conventional cable systems terminating in bellcranks.
CONTROL COLUMN
The throw-over type control column for elevator and
aileron control can be placed in front of either front seat.
Pull the T-handle latch at the back of the control arm and
position the control wheel as desired. The aileron trimmer
on the control column hub should be held until the column
is repositioned. Check for full freedom of movement after
repositioning the control.
The optional dual control column is required for flight
instruction.
January 1982 7-5
