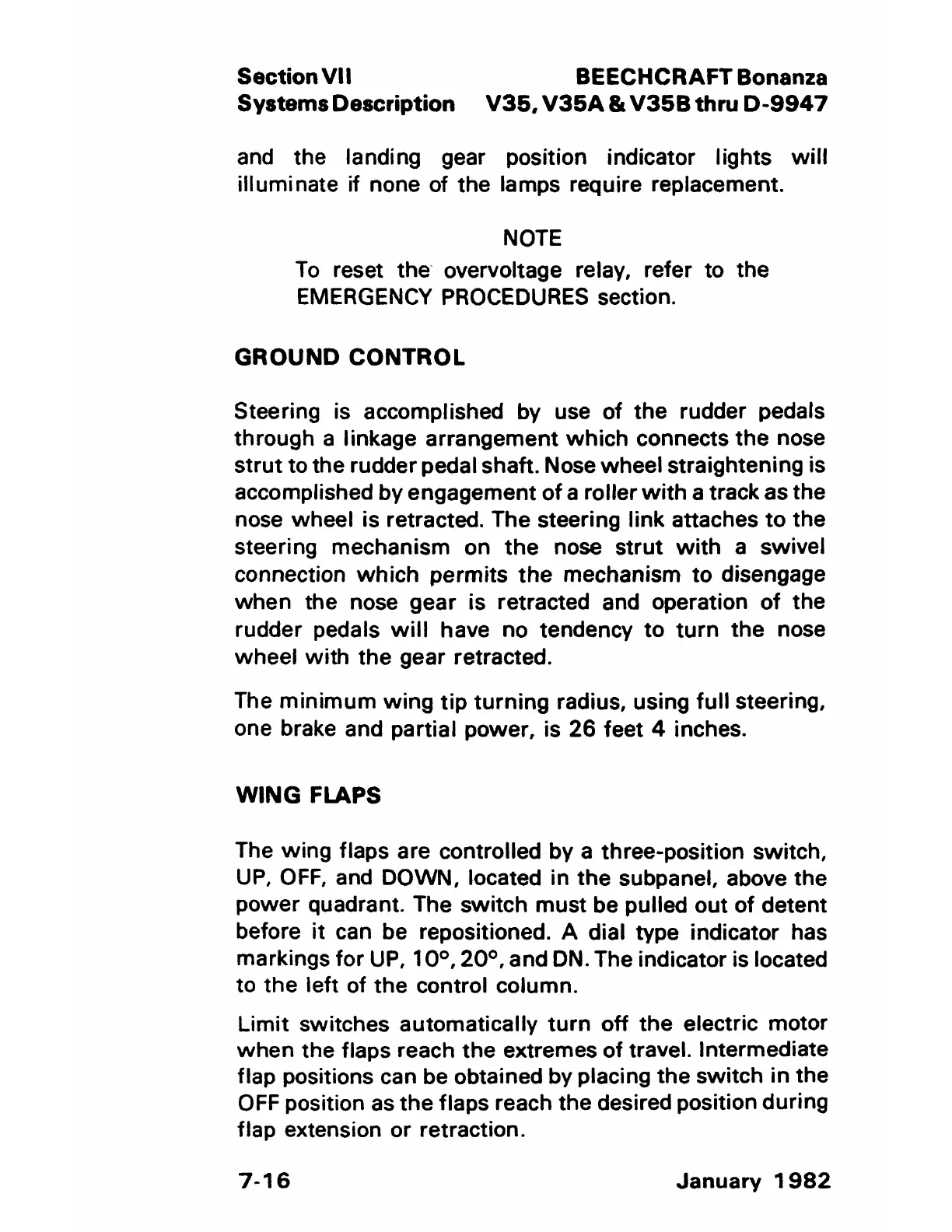

Section VII
Systems Description
BEECHCRAFT Bonanza
V36, V36A & V36B thru D-9947
and the landing gear position indicator lights will
illuminate if none of the lamps require replacement.
NOTE
To reset the overvoltage relay, refer to the
EMERGENCY PROCEDURES section.
GROUND CONTROL
Steering is accomplished by use of the rudder pedals
through a linkage arrangement which connects the nose
strut to the rudder pedal shaft. Nose wheel straightening is
accomplished by engagement of a roller with a track as the
nose wheel is retracted. The steering link attaches to the
steering mechanism on the nose strut with a swivel
connection which permits the mechanism to disengage
when the nose gear is retracted and operation of the
rudder pedals will have no tendency to turn the nose
wheel with the gear retracted.
The minimum wing tip turning radius, using full steering,
one brake and partial power, is 26 feet 4 inches.
WING FLAPS
The wing flaps are controlled by a three-position switch,
UP, OFF, and DOWN, located in the subpanel, above the
power quadrant. The switch must be pulled out of detent
before it can be repositioned. A dial type indicator has
markings for UP, 10°, 20°, and ON. The indicator is located
to the left of the control column.
Limit switches automatically turn off the electric motor
when the flaps reach the extremes of travel. Intermediate
flap positions can be obtained by placing the switch in the
OFF position as the flaps reach the desired position during
flap extension or retraction.
