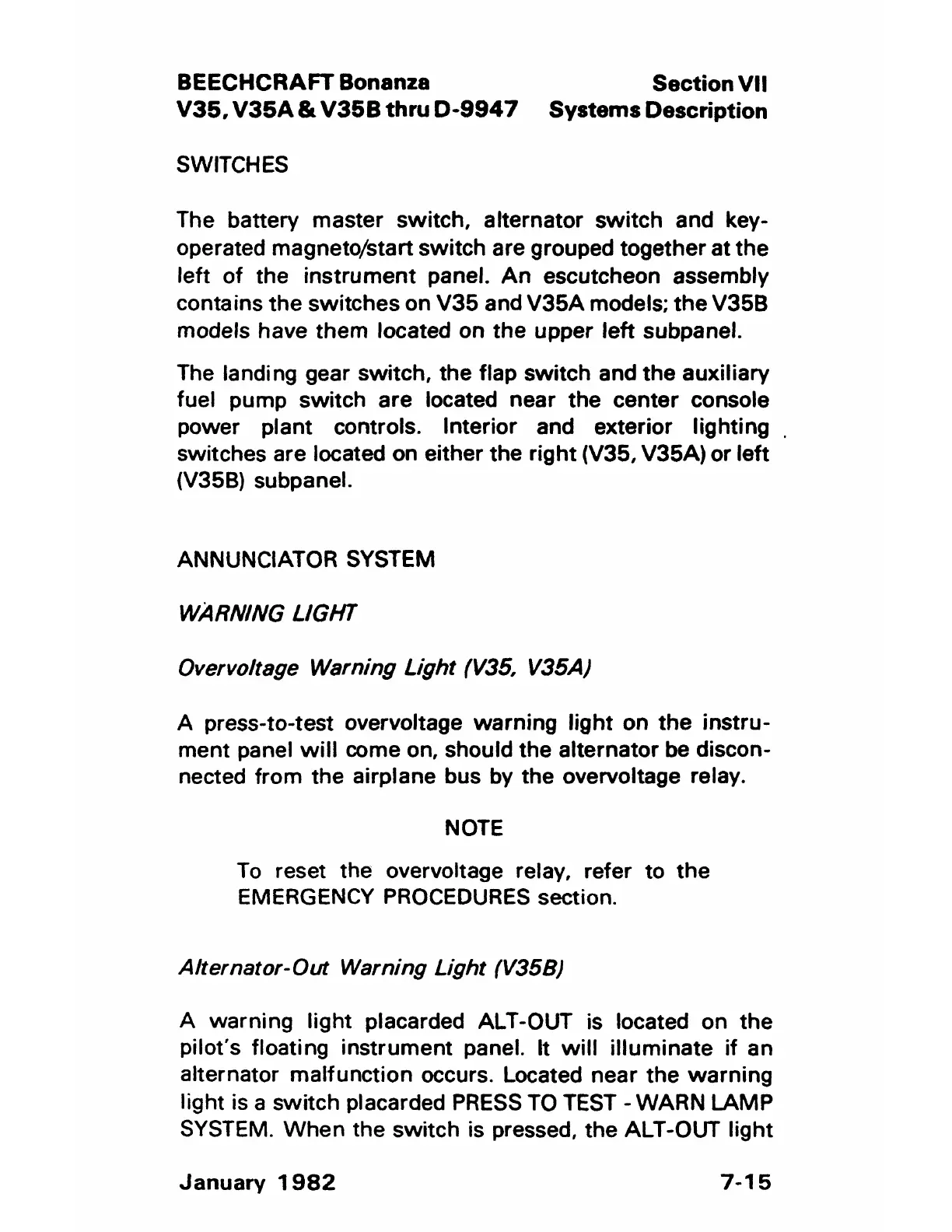

BEECHCRAFT Bonanza
V35, V35A & V358 thru 0-9947
Section VII
Systems Description
SWITCHES
The battery master switch, alternator switch and key-
operated magneto/start switch are grouped together at the
left of the instrument panel. An escutcheon assembly
contains the switches on V35 and V35A models; the V35B
models have them located on the upper left subpanel.
The landing gear switch, the flap switch and the auxiliary
fuel pump switch are located near the center console
power plant controls. Interior and exterior lighting
switches are located on either the right (V35, V35A) or left
(V35B) subpanel.
ANNUNCIATOR SYSTEM
WARNING LIGHT
Overvoltage Warning light (V35, V35A)
A press-to-test overvoltage warning light on the instru-
ment panel will come on, should the alternator be discon-
nected from the airplane bus by the overvoltage relay.
NOTE
To reset the overvoltage relay, refer to the
EMERGENCY PROCEDURES section.
Alternator-Out Warning light (V358)
A warning light placarded ALT-OUT is located on the
pilot's floating instrument panel. It will illuminate if an
alternator malfunction occurs. Located near the warning
light is a switch placarded PRESS TO TEST -WARN LAMP
SYSTEM. When the switch is pressed, the ALT-OUT light
January 1982 7-15
