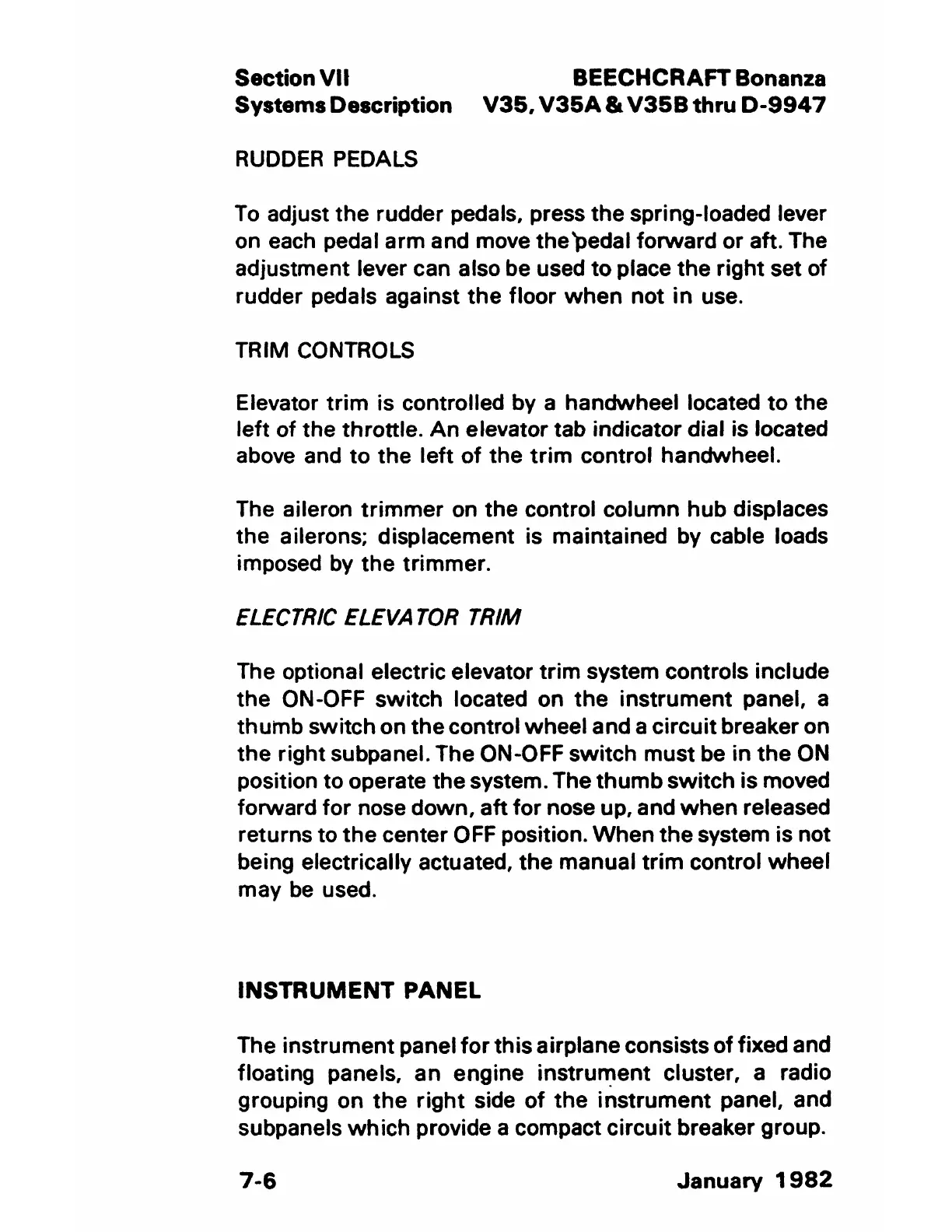

Section VII BEECHCRAFT Bonanza
Systems Description V35. V35A & V35B thru D-9947
RUDDER PEDALS
To adjust the rudder pedals. press the spring-loaded lever
on each pedal arm and move the pedal forward or aft. The
adjustment lever can also be used to place the right set of
rudder pedals against the floor when not in use.
TRIM CONTROLS
Elevator trim is controlled by a handwheel located to the
left of the throttle. An elevator tab indicator dial is located
above and to the left of the trim control handwheel.
The aileron trimmer on the control column hub displaces
the ailerons; displacement is maintained by cable loads
imposed by the trimmer.
ELECTRIC ELEVA TOR TRIM
The optional electric elevator trim system controls include
the ON-OFF switch located on the instrument panel, a
thumb switch on the control wheel and a circuit breaker on
the right subpanel. The ON-OFF switch must be in the ON
position to operate the system. The thumb switch is moved
forward for nose down, aft for nose up, and when released
returns to the center OFF position. When the system is not
being electrically actuated, the manual trim control wheel
may be used.
INSTRUMENT PANEL
The instrument panel for this airplane consists of fixed and
floating panels, an engine instrun:ient cluster. a radio
grouping on the right side of the instrument panel, and
subpanels which provide a compact circuit breaker group.
7-6
January 1 982
