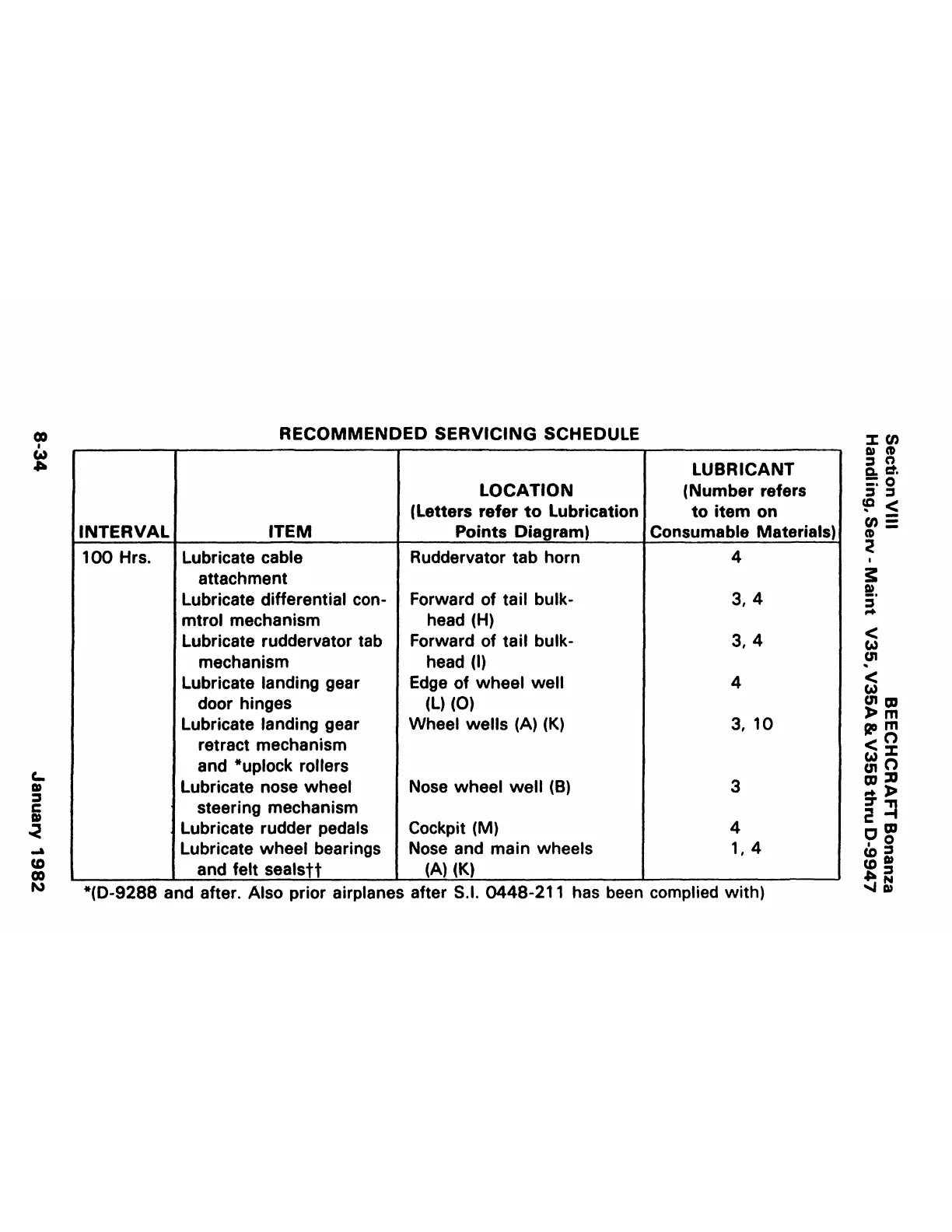

RECOMMENDED SERVICING SCHEDULE
LUBRICANT
LOCATION
(Number refers
(Letters refer to Lubrication to item on
INTERVAL ITEM Points Diagram) Consumable Materials)
100 Hrs. Lubricate cable
Ruddervator tab horn 4
attachment
Lubricate differential con- Forward of tail bulk-
3,4
mtrol mechanism
head (H)
Lubricate ruddervator tab Forward of tail bulk- 3,4
mechanism
head (I)
Lubricate landing gear
Edge of wheel well
4
door hinges
(L) (0)
Lubricate landing gear
Wheel wells (A) (K)
3, 10
retract mechanism
and *uplock rollers
Lubricate nose wheel
Nose wheel well (B)
3
steering mechanism
Lubricate rudder pedals Cockpit (M) 4
Lubricate wheel bearings Nose and main wheels
1, 4
and felt sealstt
(A) (K)
*(D-9288 and after. Also prior airplanes after S.I. 0448-211 has been complied with)
