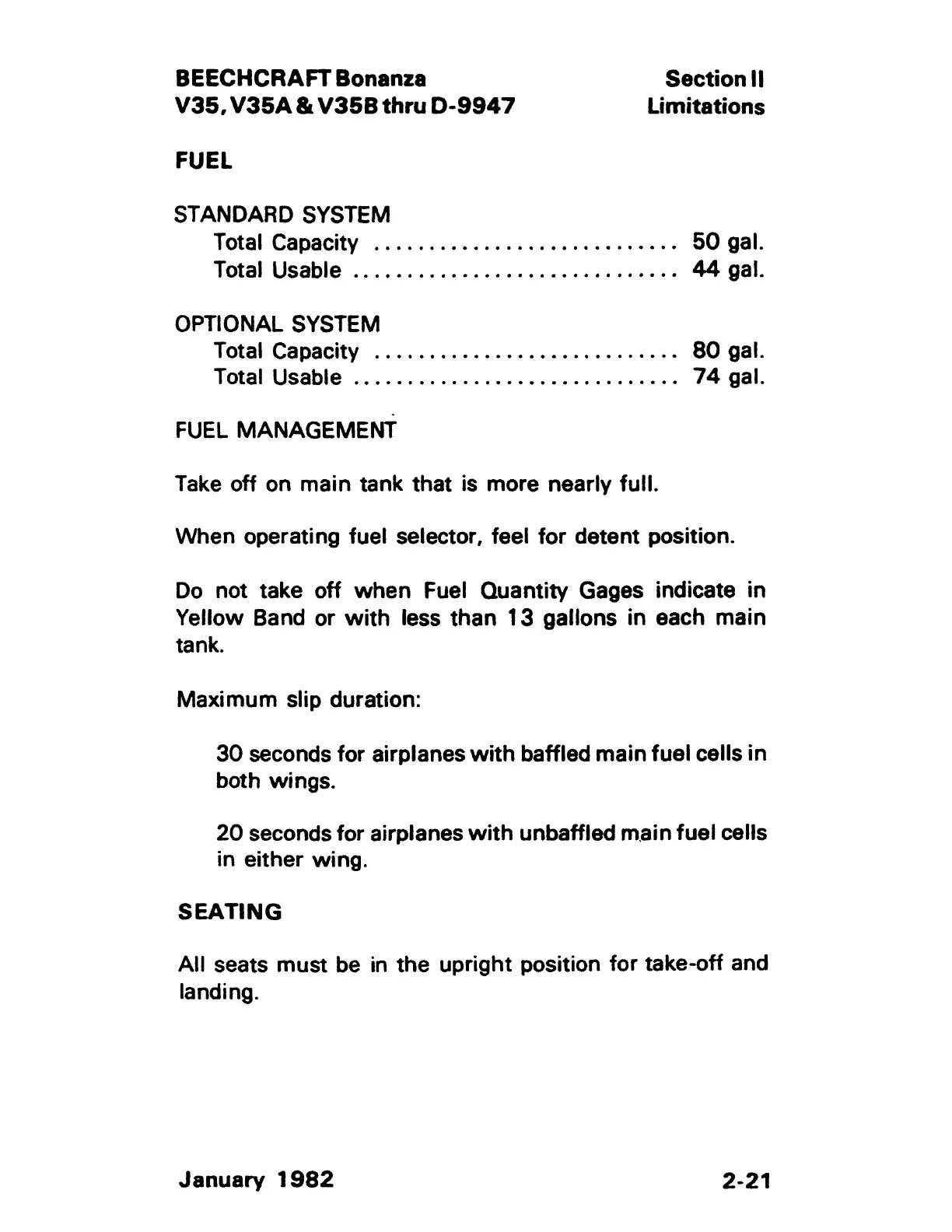

BEECHCRAFT Bonanza
V35, V35A & V35B thru 0-9947
FUEL
STANDARD SYSTEM
Section II
Limitations
Total Capacity . . . . . . .. .. .. .. .. . • .. . . .. . . . . 50 gal.
Total Usable .............................. 44 gal.
OPTIONAL SYSTEM
Total Capacity ............................ 80 gal.
Total Usable .............................. 74 gal.
FUEL MANAGEMENT
Take off on main tank that is more nearly full.
When operating fuel selector, feel for detent position.
Do not take off when Fuel Quantity Gages indicate in
Yellow Band or with less than 13 gallons in each main
tank.
Maximum slip duration:
30 seconds for airplanes with baffled main fuel cells in
both wings.
20 seconds for airplanes with unbaffled main fuel cells
in either wing.
SEATING
All seats must be in the upright position for take-off and
landing.
January 1982
2-21
