Section VII
Systems Description
BEECHCRAFT Bonanza
V36, V36A & V358 thru 0-9947
CLUSTER TYPE POWER PLANT
INSTRUMENTS

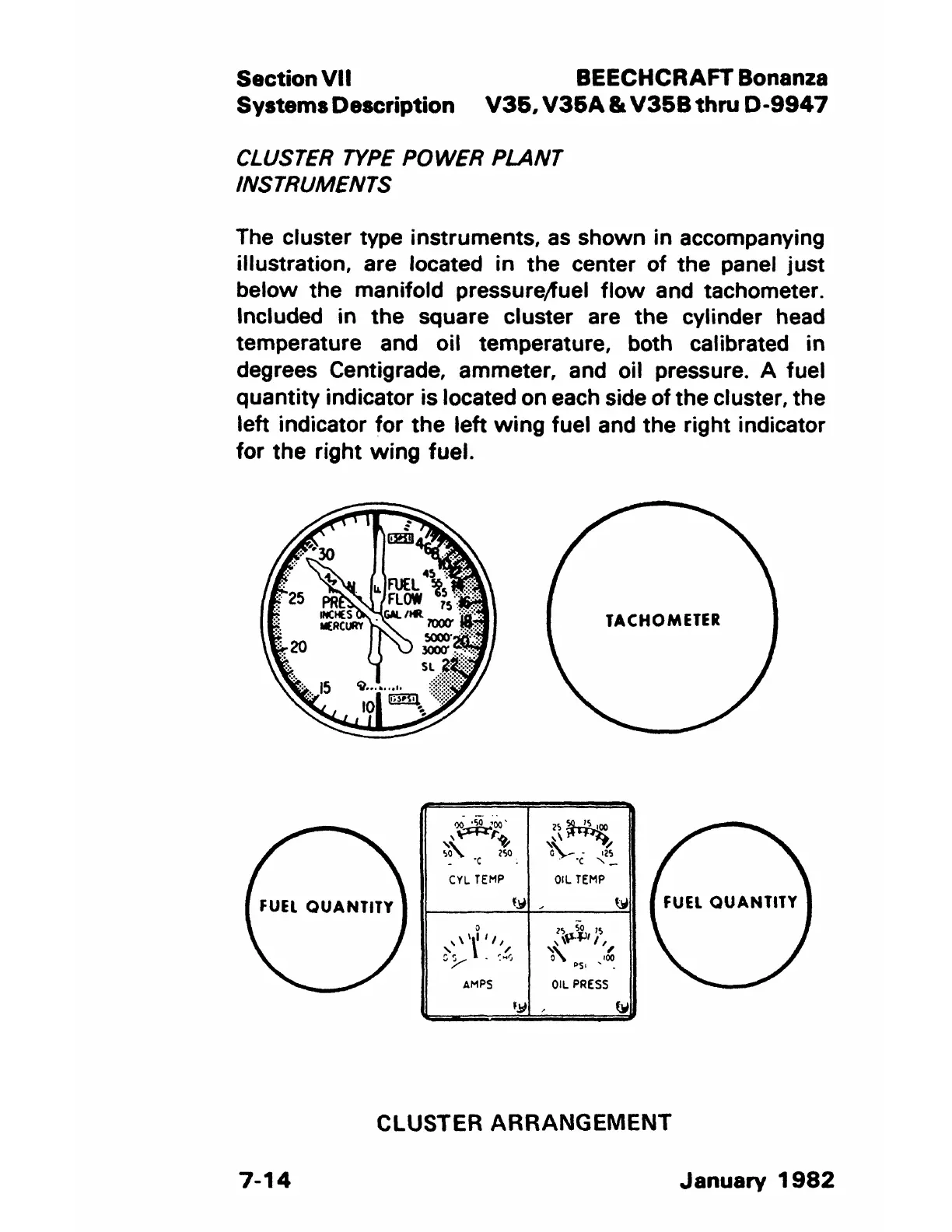

The cluster type instruments, as shown in accompanying
illustration, are located in the center of the panel just
below the manifold pressure/fuel flow and tachometer.
Included in the square cluster are the cylinder head
temperature and oil temperature, both calibrated in
degrees Centigrade, ammeter, and oil pressure. A fuel
quantity indicator is located on each side of the cluster, the
left indicator for the left wing fuel and the right indicator
for the right wing fuel.
TACHOMETER
-
00 •SO '00'
ZS~
,~,-~
~, zso
)(__ I~
- ·c ;
·c '-
CV'L TEMP OIL TEMP
ljj
,
\)I
'
l", S-O IS
, .. \ \~,,, /
'\\'-:Pl I I
'),-- . '.•0
"o' /~
"S• .
AMPS
OIL PRESS
'li
(ll
CLUSTER ARRANGEMENT
7-14
January 1982
