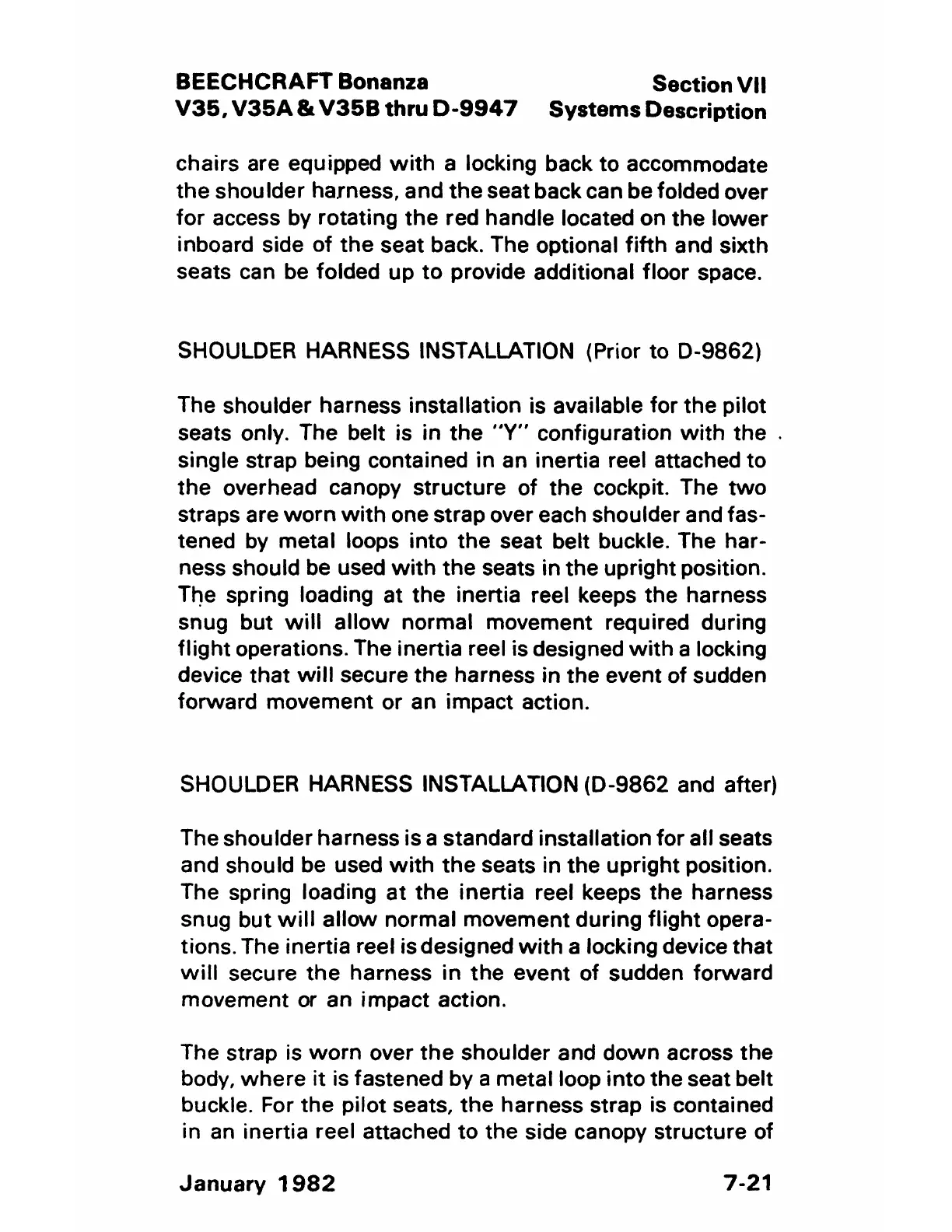

BEECHCRAFT Bonanza
V35, V35A & V35B thru D-994 7
Section VII
Systems Description
chairs are equipped with a locking back to accommodate
the shoulder harness. and the seat back can be folded over
for access by rotating the red handle located on the lower
inboard side of the seat back. The optional fifth and sixth
seats can be folded up to provide additional floor space.
SHOULDER HARNESS INSTALLATION (Prior to 0-9862)
The shoulder harness installation is available for the pilot
seats only. The belt is in the "Y" configuration with the .
single strap being contained in an inertia reel attached to
the overhead canopy structure of the cockpit. The two
straps are worn with one strap over each shoulder and fas-
tened by metal loops into the seat belt buckle. The har-
ness should be used with the seats in the upright position.
Tt"!e spring loading at the inertia reel keeps the harness
snug but will allow normal movement required during
flight operations. The inertia reel is designed with a locking
device that will secure the harness in the event of sudden
forward movement or an impact action.
SHOULDER HARNESS INSTALLATION (D-9862 and after)
The shoulder harness is a standard installation for all seats
and should be used with the seats in the upright position.
The spring loading at the inertia reel keeps the harness
snug but will allow normal movement during flight opera-
tions. The inertia reel is designed with a locking device that
will secure the harness in the event of sudden forward
movement or an impact action.
The strap is worn over the shoulder and down across the
body, where it is fastened by a metal loop into the seat belt
buckle. For the pilot seats, the harness strap is contained
in an inertia reel attached to the side canopy structure of
January 1982
7-21
