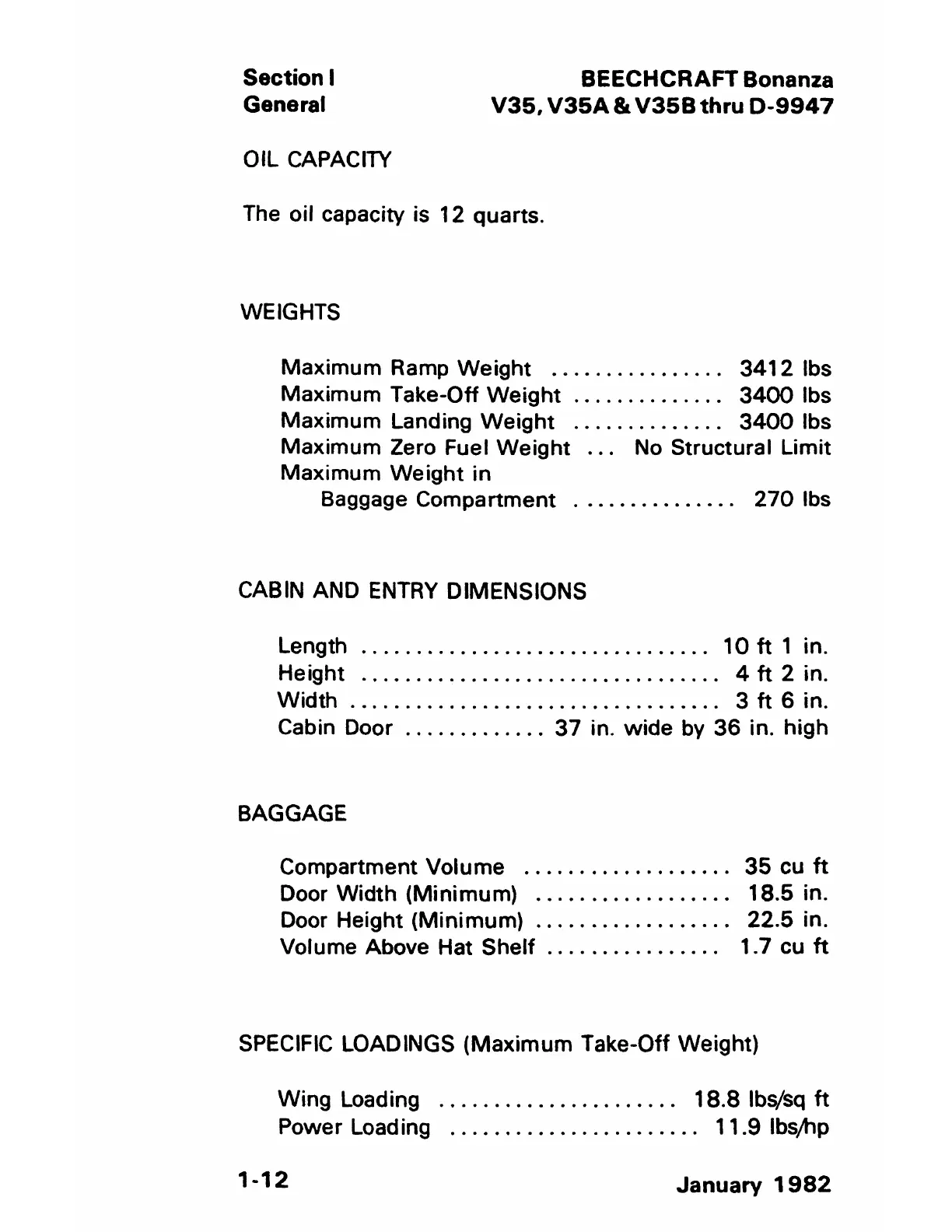

Section I
General
OIL CAPACITY
BEECHCRAFT Bonanza
V35, V35A & V358 thru D-9947
The oil capacity is 12 quarts.
WEIGHTS
Maximum Ramp Weight . . . . . . . . . . . . . . . . 3412 lbs
Maximum Take-Off Weight . . . . . . . . . . . . . . 3400 lbs
Maximum Landing Weight . . . . . . . . . . . . . . 3400 lbs
Maximum Zero Fuel Weight . . . No Structural Limit
Maximum Weight in
Baggage Compartment . . . . . . . . . . . . . . . 270 lbs
CABIN AND ENTRY DIMENSIONS
Length . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 ft 1 in.
Height . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 ft 2 in.
Width . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 ft 6 in.
Cabin Door ............. 37 in. wide by 36 in. high
BAGGAGE
Compartment Volume ................... 35 cu ft
Door Width (Minimum) . . . . . . . . . . . . . . . . . . 18.5 in.
Door Height (Minimum) .................. 22.5 in.
Volume Above Hat Shelf . . . . . . . . . . . . . . . . 1.7 cu ft
SPECIFIC LOADINGS (Maximum Take-Off Weight)
Wing Loading . . . . . . . . . . . . . . . . . . . . . . 18.8 lbs/sq ft
Power Loading . . . . . . . . . . . . . . . . . . . . . . . 11.9 lbs,thp
1-12
January 1982
