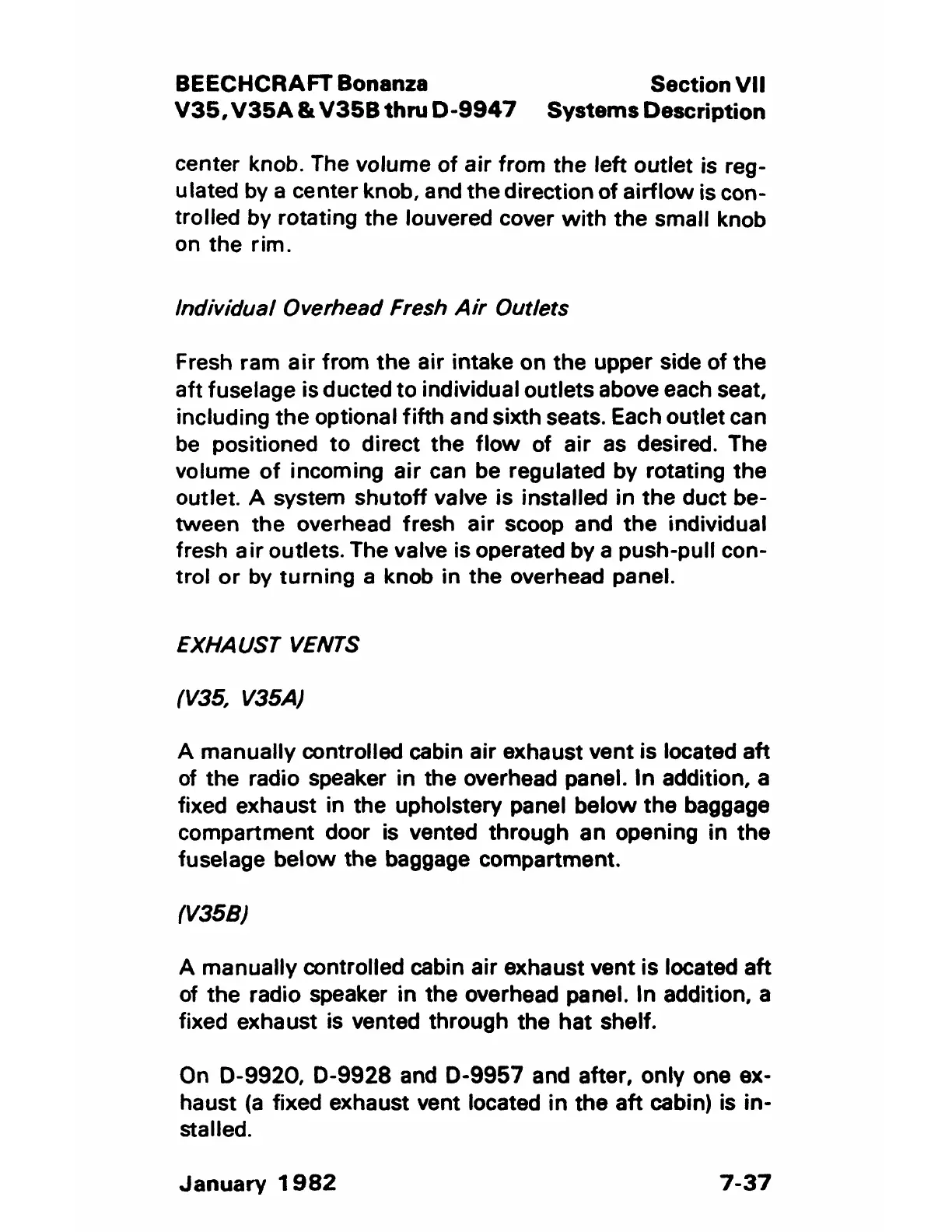

BEECHCRAFT Bonanza Section VII
V35, V35A & V358 thru D-9947 Systems Description
center knob. The volume of air from the left outlet is reg-
ulated by a center knob, and the direction of airflow is con-
trolled by rotating the louvered cover with the small knob
on the rim.
Individual Overhead Fresh Air Outlets
Fresh ram air from the air intake on the upper side of the
aft fuselage is ducted to individual outlets above each seat,
including the optional fifth and sixth seats. Each outlet can
be positioned to direct the flow of air as desired. The
volume of incoming air can be regulated by rotating the
outlet. A system shutoff valve is installed in the duct be-
tween the overhead fresh air scoop and the individual
fresh air outlets. The valve is operated by a push-pull con-
trol or by turning a knob in the overhead panel.
EXHAUST VENTS
(V35, V35A)
A manually controlled cabin air exhaust vent is located aft
of the radio speaker in the overhead panel. In addition, a
fixed exhaust in the upholstery panel below the baggage
compartment door is vented through an opening in the
fuselage below the baggage compartment.
(V358)
A manually controlled cabin air exhaust vent is located aft
of the radio speaker in the overhead panel. In addition, a
fixed exhaust is vented through the hat shelf.
On D-9920, D-9928 and D-9957 and after, only one ex-
haust (a fixed exhaust vent located in the aft cabin) is in-
stalled.
January 1982
7-37
