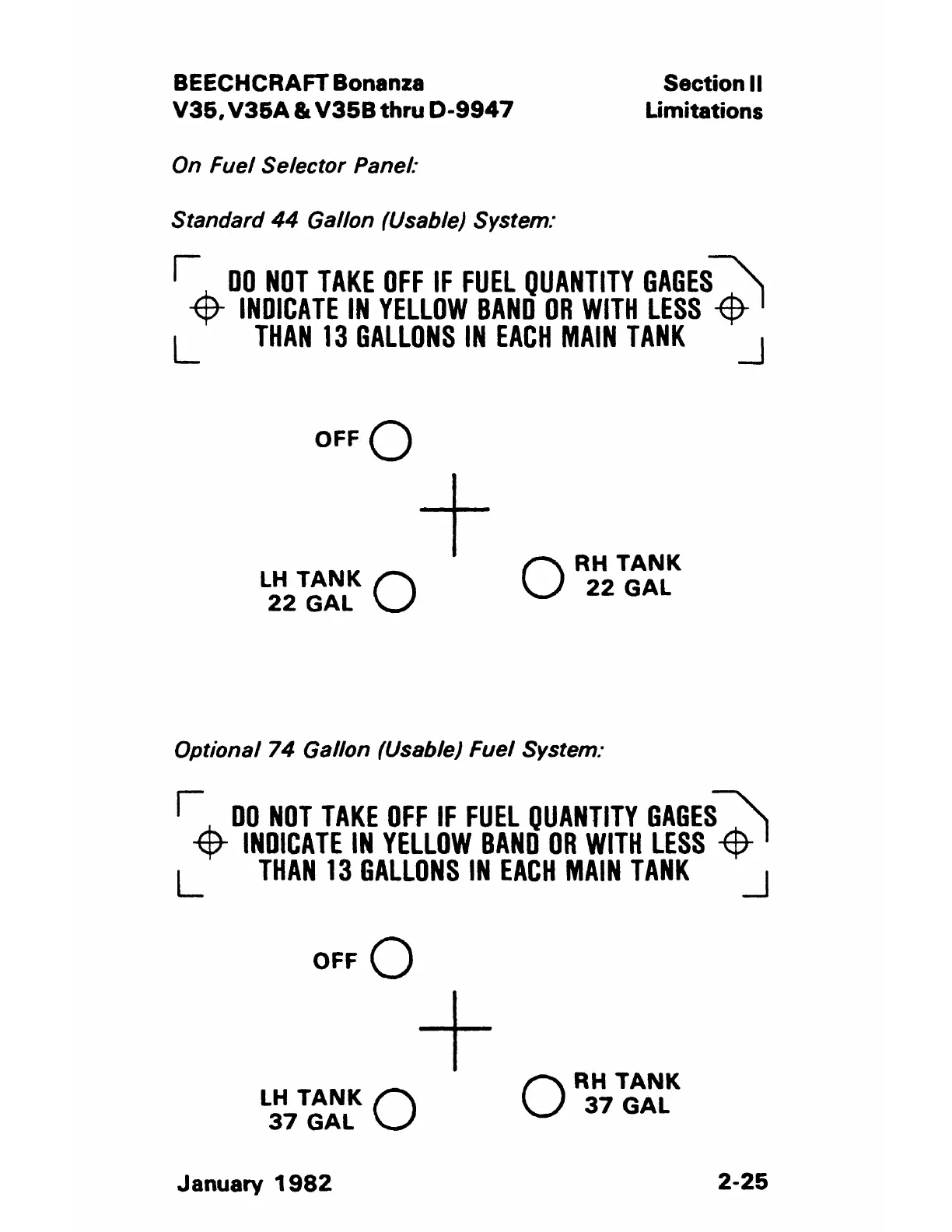

BEECHCRAFT Bonanza
V36, V36A & V358 thru D-9947
On Fuel Selector Panel:
Section II
Limitations
Standard 44 Gallon (Usable) System:
1
1n._ DO NOT TAKE OFF IF FUEL QUANTITY GAGES~
y INDICATE IN YELLOW BAND OR WITH LESS -$-
L THAN 13 GALLONS IN EACH MAIN TANK _J
OFFO
LH TANK 0
22 GAL
+
0
RH TANK
22 GAL
Optional 74 Gallon (Usable) Fuel System:
1
1n._ DO NOT TAKE OFF IF FUEL QUANTITY GAGES~
y INDICATE IN YELLOW BAND OR WITH LESS -$-
L THAN 13 GALLONS IN EACH MAIN TANK _J
OFF 0
LH TANK 0
37 GAL
January 1982
+
O
RHTANK
37 GAL
2-25
