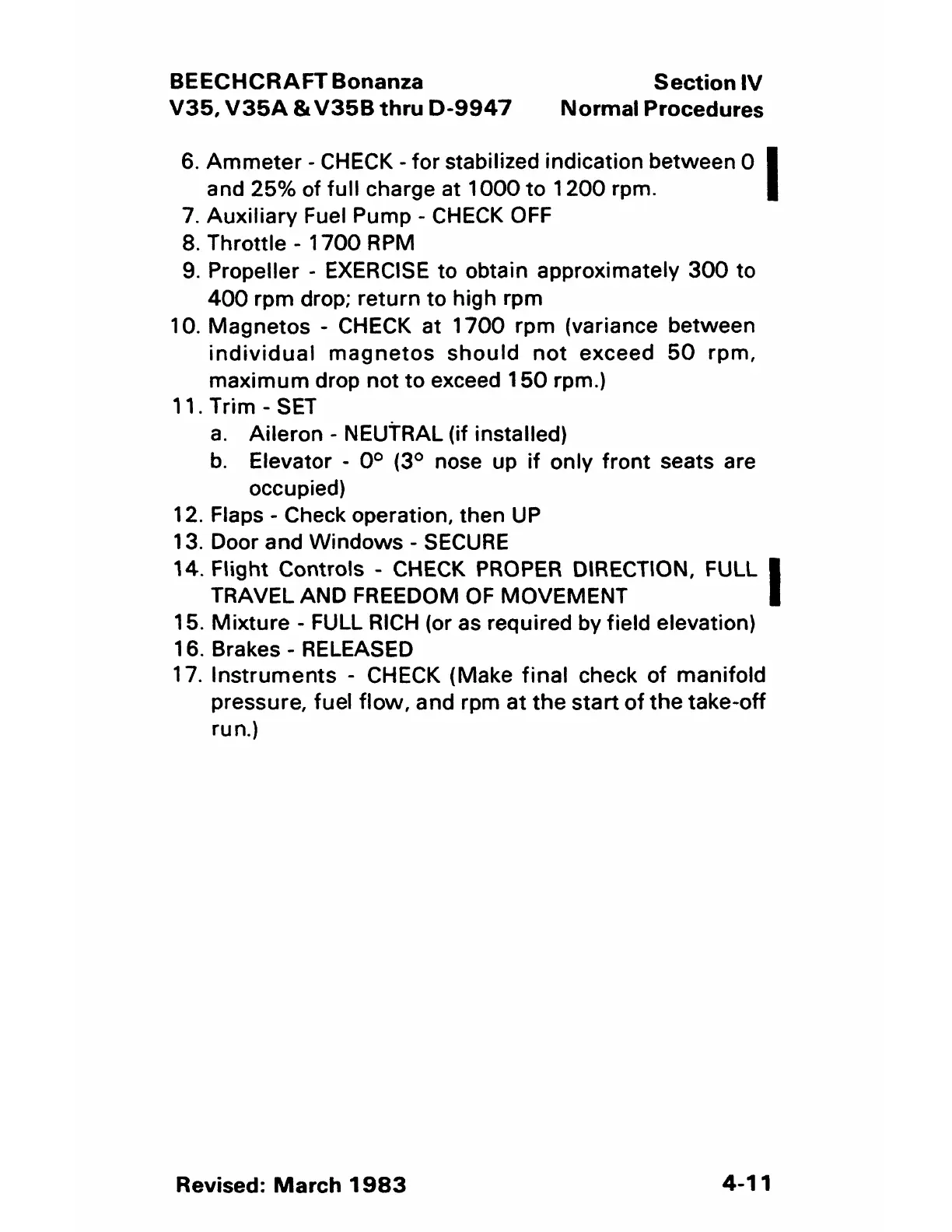

BEECHCRAFT Bonanza
V35, V35A & V35B thru D-9947
Section IV
Normal Procedures
6. Ammeter - CHECK - for stabilized indication between O I
and 25% of full charge at 1000 to 1200 rpm.
7. Auxiliary Fuel Pump - CHECK OFF
8. Throttle - 1700 RPM
9. Propeller - EXERCISE to obtain approximately 300 to
400 rpm drop; return to high rpm
10. Magnetos - CHECK at 1700 rpm (variance between
individual magnetos should not exceed 50 rpm,
maximum drop not to exceed 150 rpm.)
11. Trim - SET
a. Aileron - NEUTRAL (if installed)
b. Elevator - 0° (3° nose up if only front seats are
occupied)
12. Flaps - Check operation, then UP
13. Door and Windows - SECURE
14. Flight Controls - CHECK PROPER DIRECTION, FULL I
TRAVEL AND FREEDOM OF MOVEMENT
15. Mixture - FULL RICH (or as required by field elevation)
16. Brakes - RELEASED
17. Instruments - CHECK (Make final check of manifold
pressure, fuel flow, and rpm at the start of the take-off
run.)
Revised: March 1983
4-11
