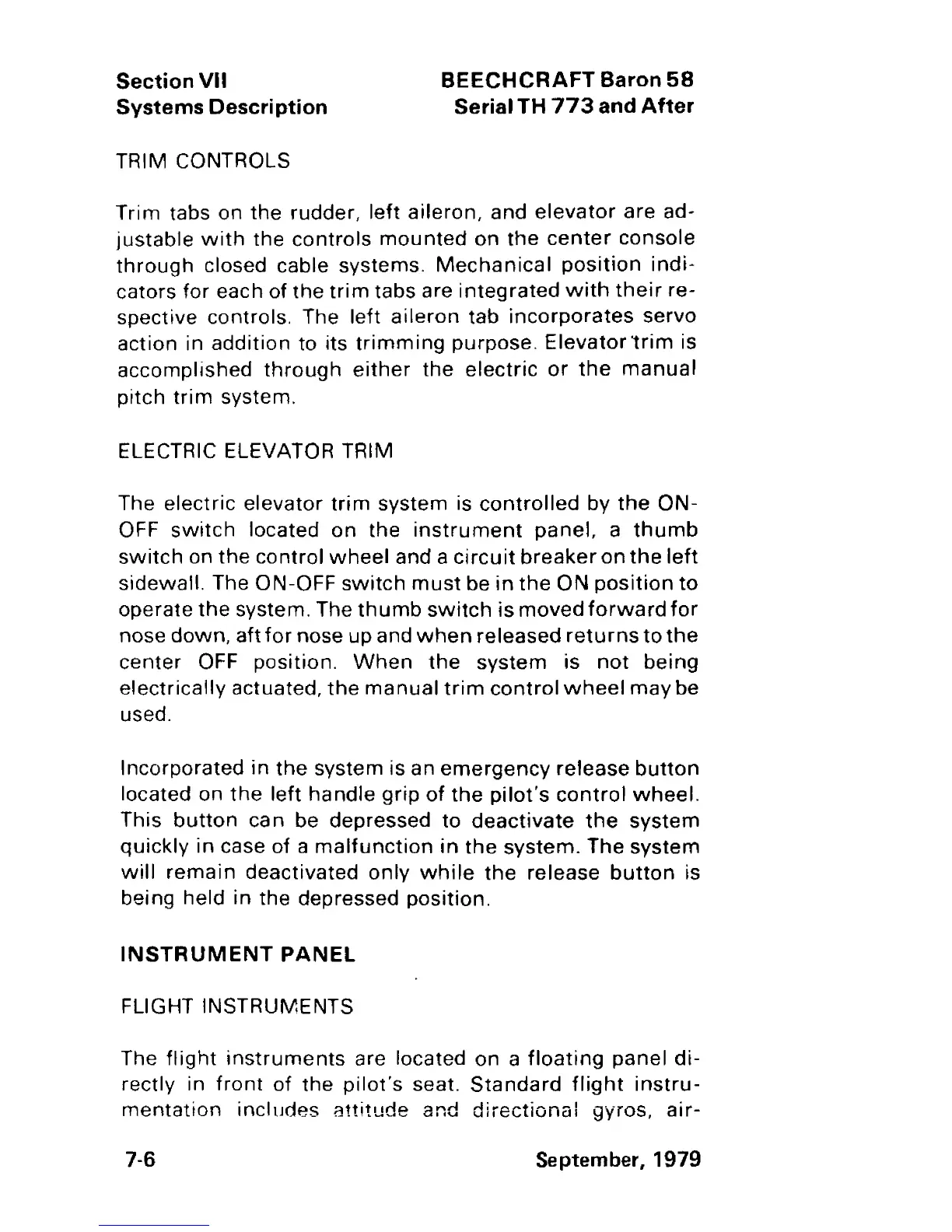

Section VII
Systems Description
TRIM CONTROLS
BEECHCRAFT Baron 58
Serial TH 773 and After
Trim tabs on the rudder, left aileron, and elevator are ad-
justable with the controls mounted on the center console
through closed cable systems. Mechanical position indi-
cators for each of the trim tabs are integrated with their re-
spective controls. The
left aileron tab incorporates servo
action in
addition to its trimming purpose. Elevator trim is
accomplished
through either the electric or the manual
pitch trim system.
ELECTRIC ELEVATOR TRIM
The
electric elevator trim system is controlled by the ON-
OFF
switch located on the instrument panel, a thumb
switch on the control wheel and a circuit breaker on the left
sidewall. The ON-OFF switch must be in the ON position to
operate
the system. The thumb switch is moved forward for
nose down, aft for nose up and when released returns to the
center OFF position. When the system is not being
electrically actuated, the manual trim control wheel may be
used.
Incorporated in
the system is an emergency release button
located on the left handle grip of the pilot's control wheel.
This button can be depressed to deactivate the system
quickly in case of a malfunction in the system. The system
will remain deactivated only while the release button is
being
held in the depressed position.
INSTRUMENT PANEL
FLIGHT INSTRUMENTS
The
flight instruments are located on a floating panel di-
rectly in
front of the pilot's seat. Standard flight instru-
mentation includes attitude and directional gyros, air-
7-6
September,
1979
