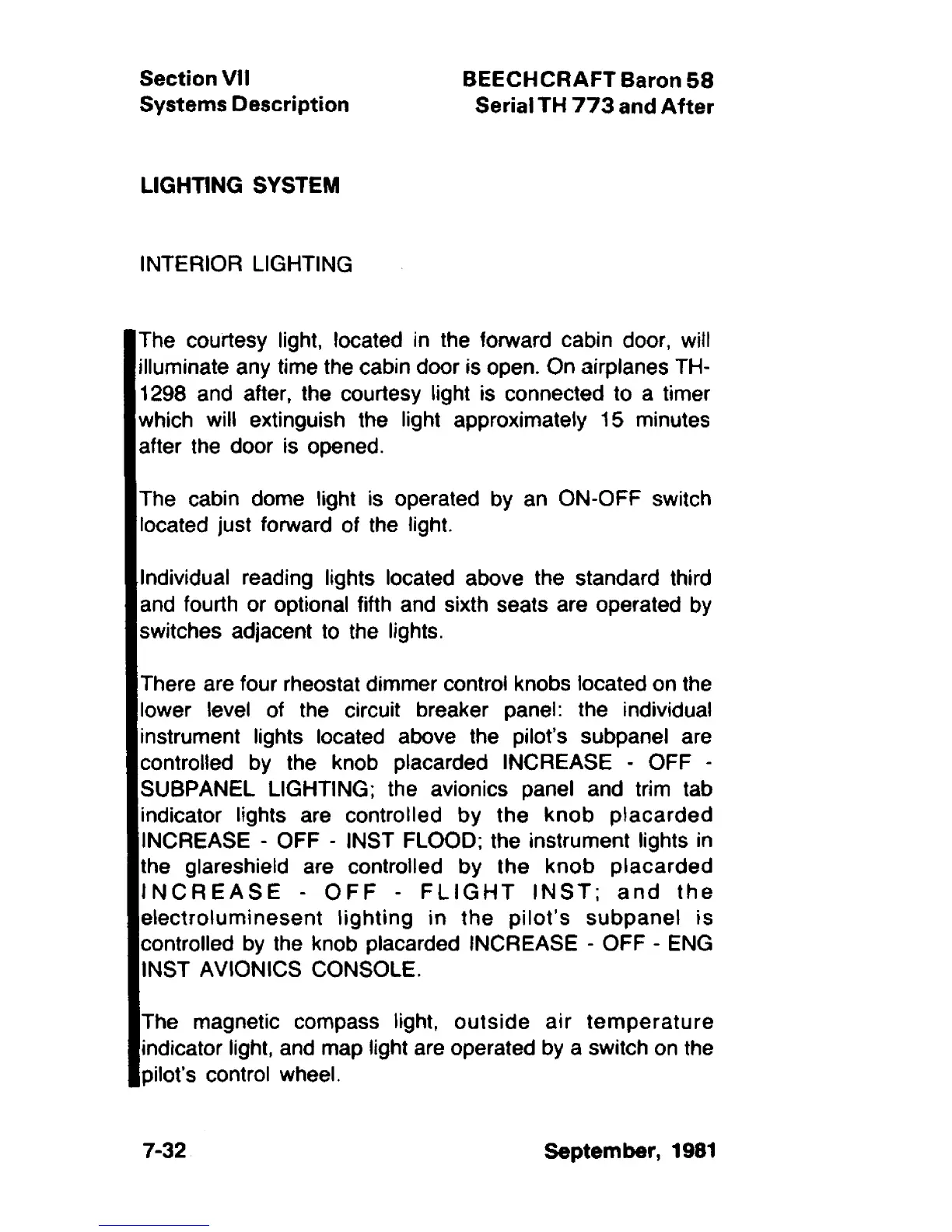

Section VII
Systems Description
LIGHTING SYSTEM
INTERIOR LIGHTING
BEECH
CRAFT
Baron
58
SerialTH
773
and
After
The courtesy light, located in the forward cabin door, will
illuminate any time the cabin door is open. On airplanes TH-
1298 and after, the courtesy light is connected to a timer
which will extinguish the light approximately 15 minutes
after the door is opened.
The cabin dome light is operated by an ON-OFF switch
located just forward of the light.
Individual reading lights located above the standard third
and fourth or optional fifth and sixth seats are operated by
switches adjacent to the lights.
There are four rheostat dimmer control knobs located on the
lower level of the circuit breaker panel: the individual
instrument lights located above the pilot's subpanel are
controlled by the knob placarded INCREASE - OFF -
SUBPANEL LIGHTING; the avionics panel and trim tab
indicator lights are controlled by the knob placarded
INCREASE - OFF - INST FLOOD; the instrument lights in
the glareshield are controlled by the knob placarded
INCREASE
-
OFF
-
FLIGHT
INST;
and
the
electroluminesent lighting in the
pilot's
subpanel is
controlled by the knob placarded INCREASE - OFF - ENG
INST AVIONICS CONSOLE.
The magnetic compass light, outside air
temperature
indicator light, and map light are operated by a switch on the
pilot's control wheel.
7-32
September, 1981
