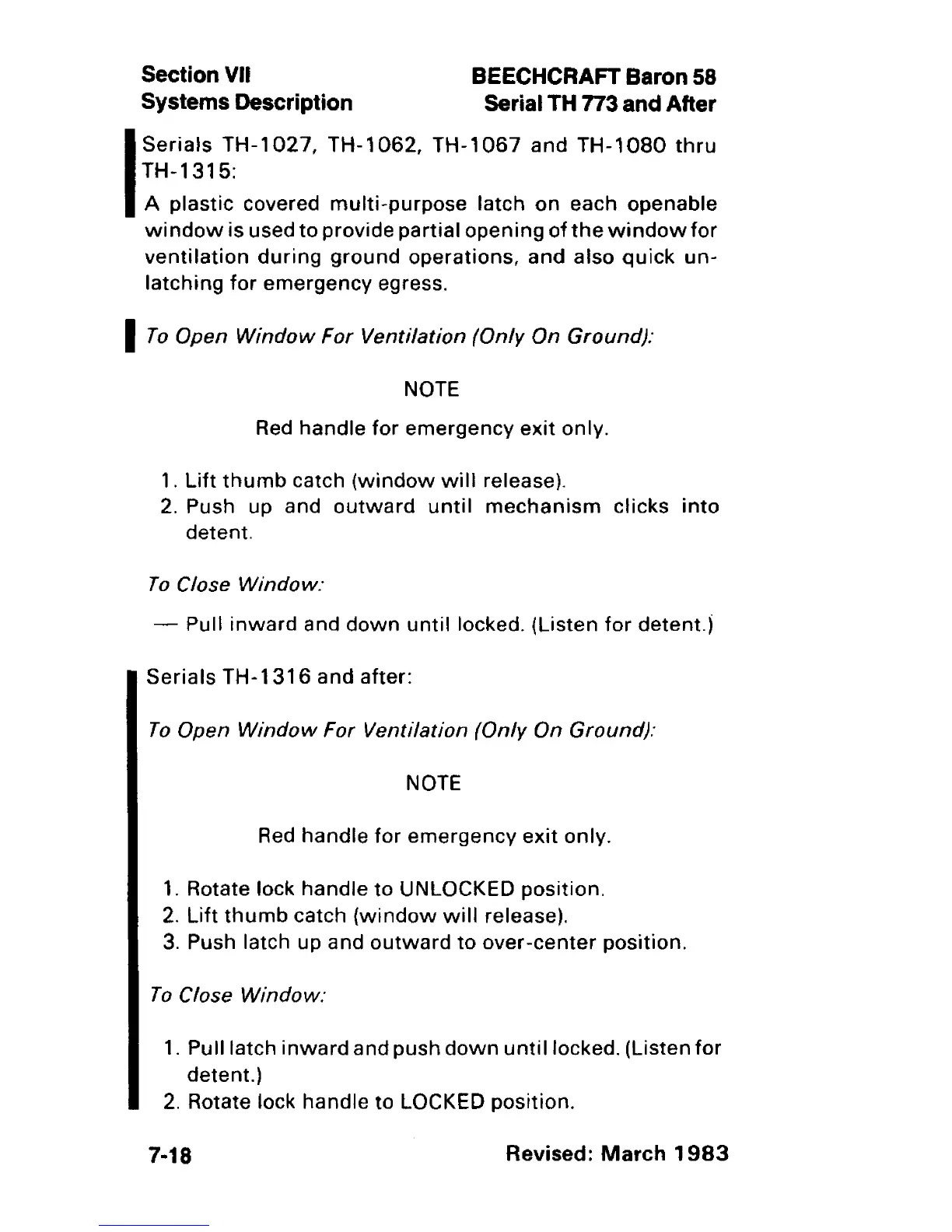

Section VII BEECHCRAFT Baron 58
Systems Description serial TH
n3 and After
I
Serials TH-
1
0 27, TH-
1062, TH- 1067 and TH- 1080 thru
TH-1315:
A plastic covered multi-purpose latch on each openable
window is used to provide partial opening of the window for
ventilation during ground operations, and also quick un-
latching for emergency egress.
I To Open Window For Ventilation (Only On Ground):
NOTE
Red handle for emergency exit only.
1.
Lift thumb catch (window will release).
2. Push up and
outward until mechanism clicks into
detent.
To Close Window:
- Pull inward and down until locked. (Listen for detent.)
Serials THA 1316 and after:
To Open Window For Ventilation (Only On Ground):
NOTE
Red handle for emergency exit only.
1. Rotate lock
handle to UNLOCKED position.
2. Lift thumb catch (window will release).
3. Push latch up and outward to over-center position.
To Close Window:
1. Pull latch inward and push down until locked. (Listen for
detent.)
2. Rotate lock handle to LOCKED position.
7·18
Revised: March 1983
