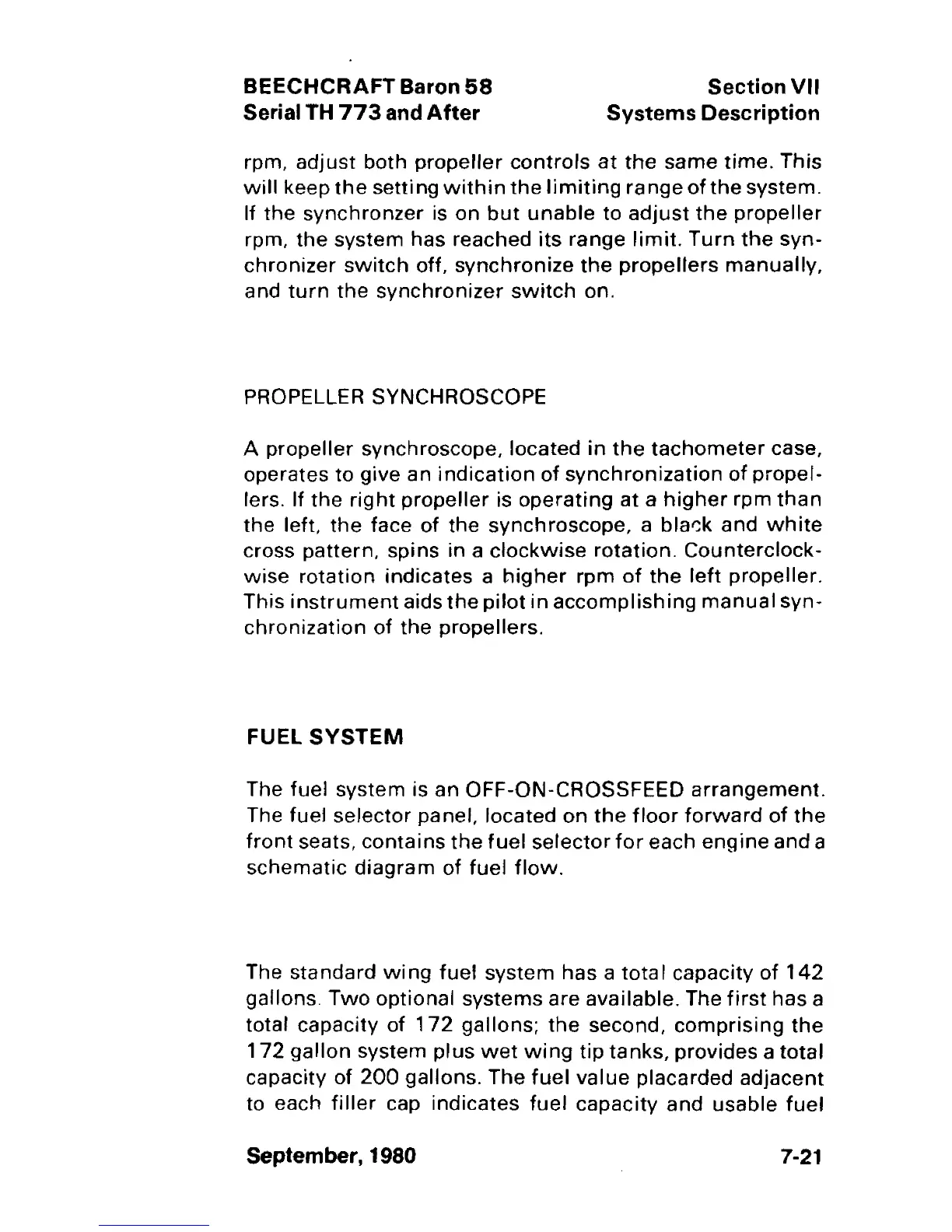

BEECHCRAFT
Baron
58
Serial TH
773
and
After
Section
VII
Systems Description
rpm, adjust both
propeller
controls
at the same
time.
This
will
keep
the
setting
within
the
limiting
range
ofthe
system.
If the synchronzer is on
but
unable
to
adjust
the
propeller
rpm, the system has reached its range
limit.
Turn
the
syn-
chronizer
switch
off,
synchronize
the
propellers
manually,
and
turn
the
synchronizer
switch
on.
PROPELLER SYNCHROSCOPE
A
propeller
svnchroscope. located in
the
tachometer
case,
operates to give an
indication
of
synchronization
of propel-
lers. If
the
right
propeller
is
operating
at a
higher
rpm
than
the left,
the
face of the synchroscope, a black and
white
cross pattern, spins in a
clockwise
rotation.
Counterclock-
wise
rotation
indicates a
higher
rpm of
the
left
propeller.
This
instrument
aids
the
pilot
in
accomplishing
manual
syn-
chronization
of the propellers.
FUEL
SYSTEM
The fuel system is an OFF-ON-CROSSFEED
arrangement.
The fuel selector panel, located on
the
floor
forward
of
the
front
seats,
contains
the
fuel
selector
for
each
engine
and a
schematic
diagram
of fuel
flow.
The standard
wing
fuel
system has a tota I capacity of
142
gallons.
Two
optional systems are available. The
first
has a
total capacity of
172
gallons;
the
second,
comprising
the
172
gallon
system
plus
wet
wing
tip
tanks,
provides a
total
capacity of
200
gallons. The
fuel
value placarded
adjacent
to each
filler
cap indicates
fuel
capacity and usable
fuel
September, 1980
7-21
