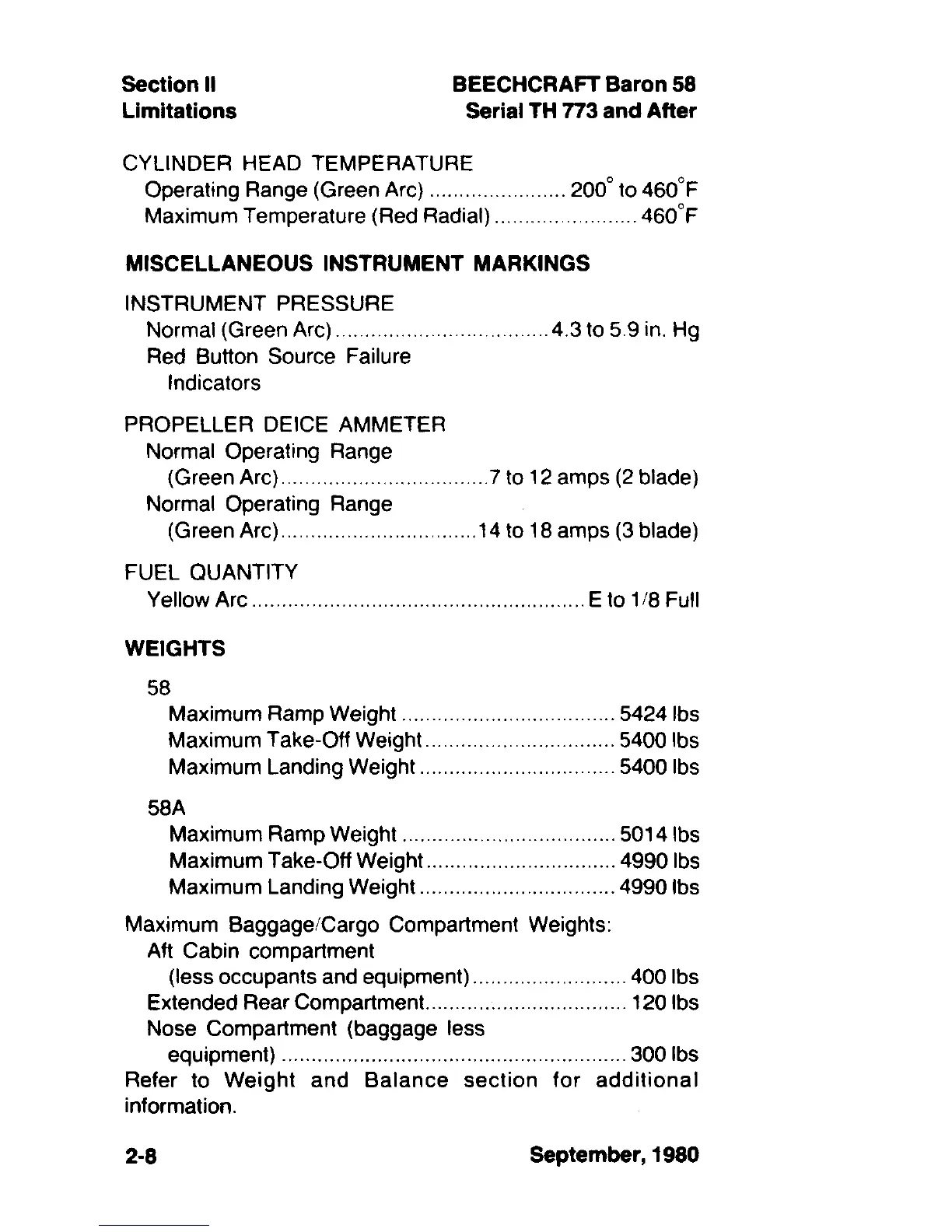

section II
Limitations
BEECHCRAFT Baron 58
Serial TH
n3
and After
CYLINDER HEAD TEMPERATURE
Operating Range (Green Arc) 200° to 460°F
Maximum Temperature (Red Radial) . 460°F
MISCELLANEOUS INSTRUMENT MARKINGS
INSTRUMENT PRESSURE
Normal (Green Arc) 4.3 to
59
in. Hg
Red Button Source Failure
Indicators
PROPELLER DEICE AMMETER
Normal Operating Range
(Green Arc) 7 to 12 amps (2 blade)
Normal Operating Range
(Green Arc) 14 to 18 amps (3 blade)
FUEL
QUANTITY
Yellow Arc E to 1/8 Full
WEIGHTS
58
Maximum Ramp Weight 5424 Ibs
Maximum Take-Off Weigh!... 5400 Ibs
Maximum Landing Weight 5400 Ibs
58A
Maximum Ramp Weight 50141bs
Maximum Take-Off Weight 4990 Ibs
Maximum Landing Weight 4990 Ibs
Maximum Baggage/Cargo Compartment Weights:
Aft Cabin compartment
(less occupants and equipment) 400 Ibs
Extended Rear Compartment... 120 Ibs
Nose Compartment (baggage less
equipment) 300 Ibs
Refer to
Weight
and
Balance
section
for
additional
information.
2-8
september, 1980
