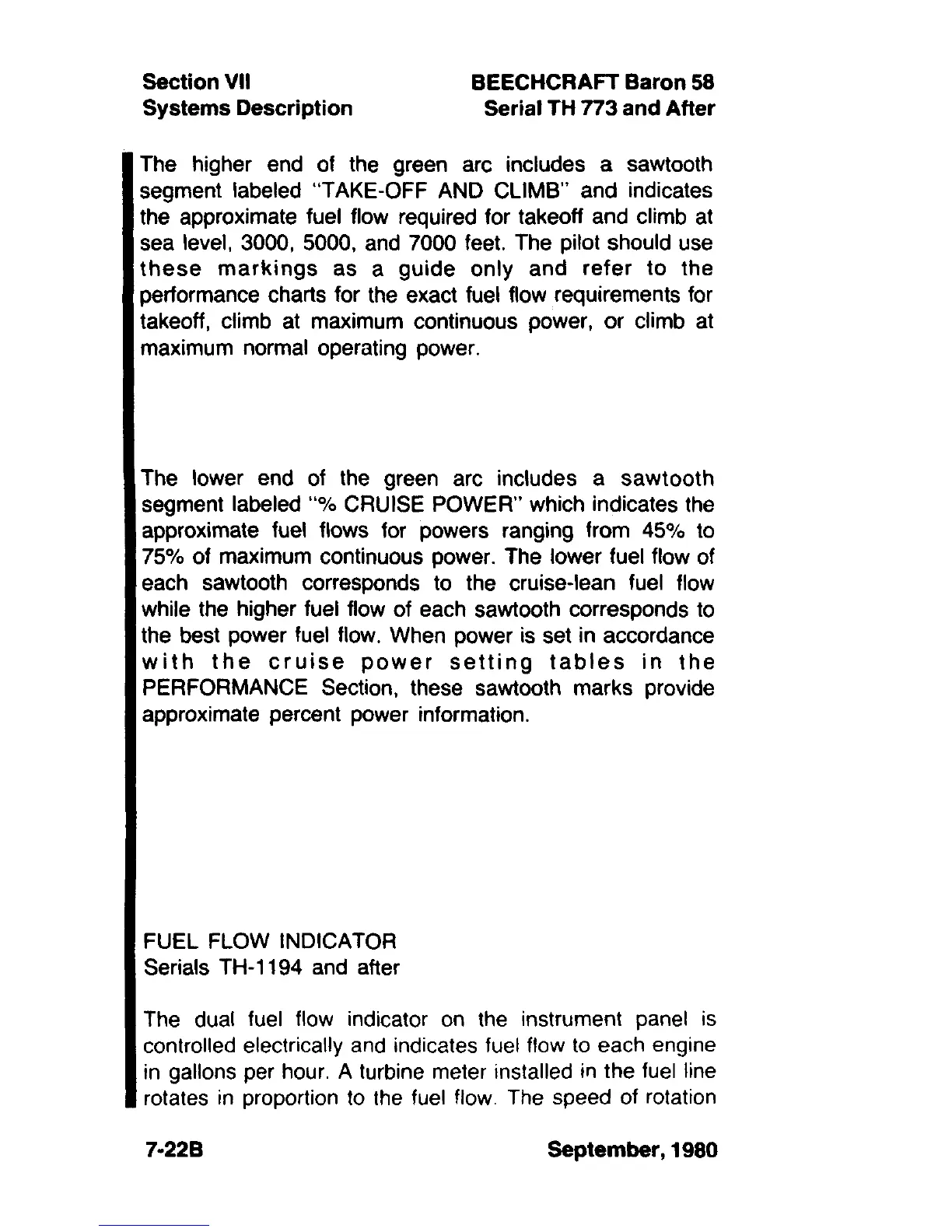

section
VII
Systems Description
BEECHCRAFT Baron 58
Serial TH
n3
and After
The higher end of the green arc includes a sawtooth
segment labeled "TAKE-OFF AND CLIMB" and indicates
the approximate fuel flow required for takeoff and climb at
sea level, 3000, 5000, and 7000 feet. The pilot should use
these
markings
as a guide only and refer to the
performance charts for the exact fuel flow requirements for
takeoff, climb at maximum continuous power, or climb at
maximum normal operating power.
The lower end of the green arc includes a sawtooth
segment labeled
"%
CRUISE POWER" which indicates the
approximate fuel flows for powers ranging from 45% to
75% of maximum continuous power. The lower fuel flow of
each sawtooth corresponds to the cruise-lean fuel flow
while the higher fuel flow of each sawtooth corresponds to
the best power fuel flow. When power is set in accordance
with
the
cruise
power
setting
tables
in
the
PERFORMANCE Section. these sawtooth marks provide
approximate percent power information.
FUEL FLOW INDICATOR
Serials TH-1194 and after
The dual fuel flow indicator on the instrument panel is
controlled electrically and indicates fuel flow to each engine
in gallons per hour. A turbine meter installed in the fuel line
rotates in proportion to the fuel flow The speed of rotation
7·22B
september, 1980
