FUEL FLOW AND PRESSURE INDICATOR
Serials TH-773 thru TH-1193
The dual fuel flow indicator on the instrument panel senses
fuel pressure at the fuel distributor and is calibrated to
indicate fuel flow to each engine in gallons per hour. The
green arc indicates the normal fuel flow operating range
while the red radials indicate the minimum and maximum
allowable fuel pressures.
~CRUISE
1
4
1" ;:'" 550/0 ~WER
1/ '> 0 RANGE
~65%
~
75%

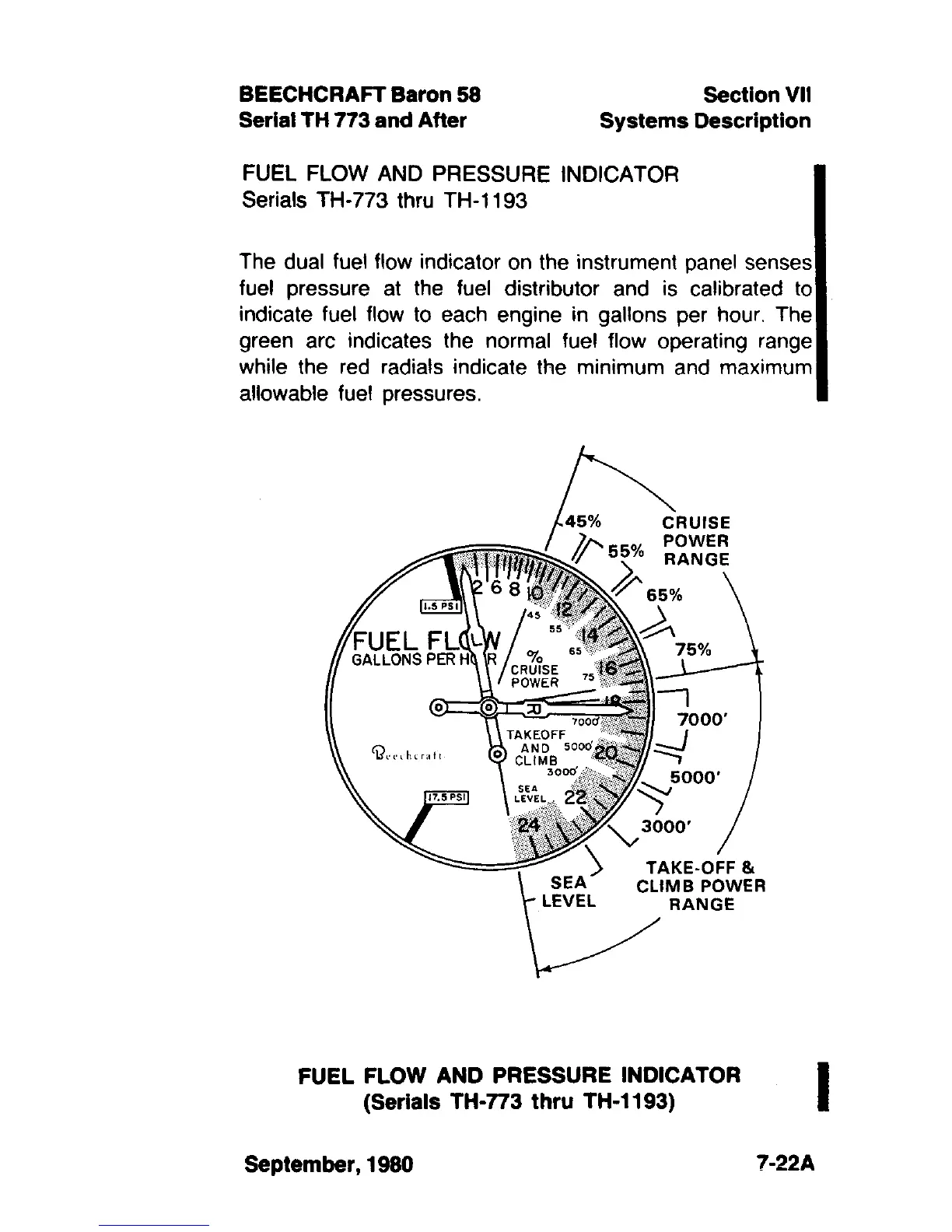

FUEL FLOW AND PRESSURE INDICATOR
(Serials TH-773
thru TH-1193)
