Beechcraft Baron 58 - Heating and Ventilation System; Cabin Heating; Environmental Schematic

BEECHCRAFT Baron 58
Serial TH 773 and After
Section VII
Systems Description
HEATING AND VENTILATION SYSTEM
CABIN HEATING
A combustion heater in the nose cone supplies heated air
to the cabin. Outlets are located forward of the pilot and
copilot seats, at the rear of the copilot's seat, and at the
5
D:~::TST\AIR
GLASS
SERVICE
VALVES
FRESH AIR
CONTROL
AIR CONDITIONER
OUTLETS
/4 PLACES)
ill CABIN AIR CONTROL
® CABIN HEAT CONTROL
CD DEFROST CONTROL
@)PILOT AIR CONTROL
® COPILOT AIR CONTROL
AFT
BULKKEAD
AFT EVAPORATOR/OR OPTIONAL
FRESH AIR BLOWER
CABIN AIR EXHAUST
HEATER--+-J'-liiW!!
_HEATER AlA ~
c==J AIR CONDITIONER ---------J
_ VENTILATION AIR
~ EXHAUST AIR

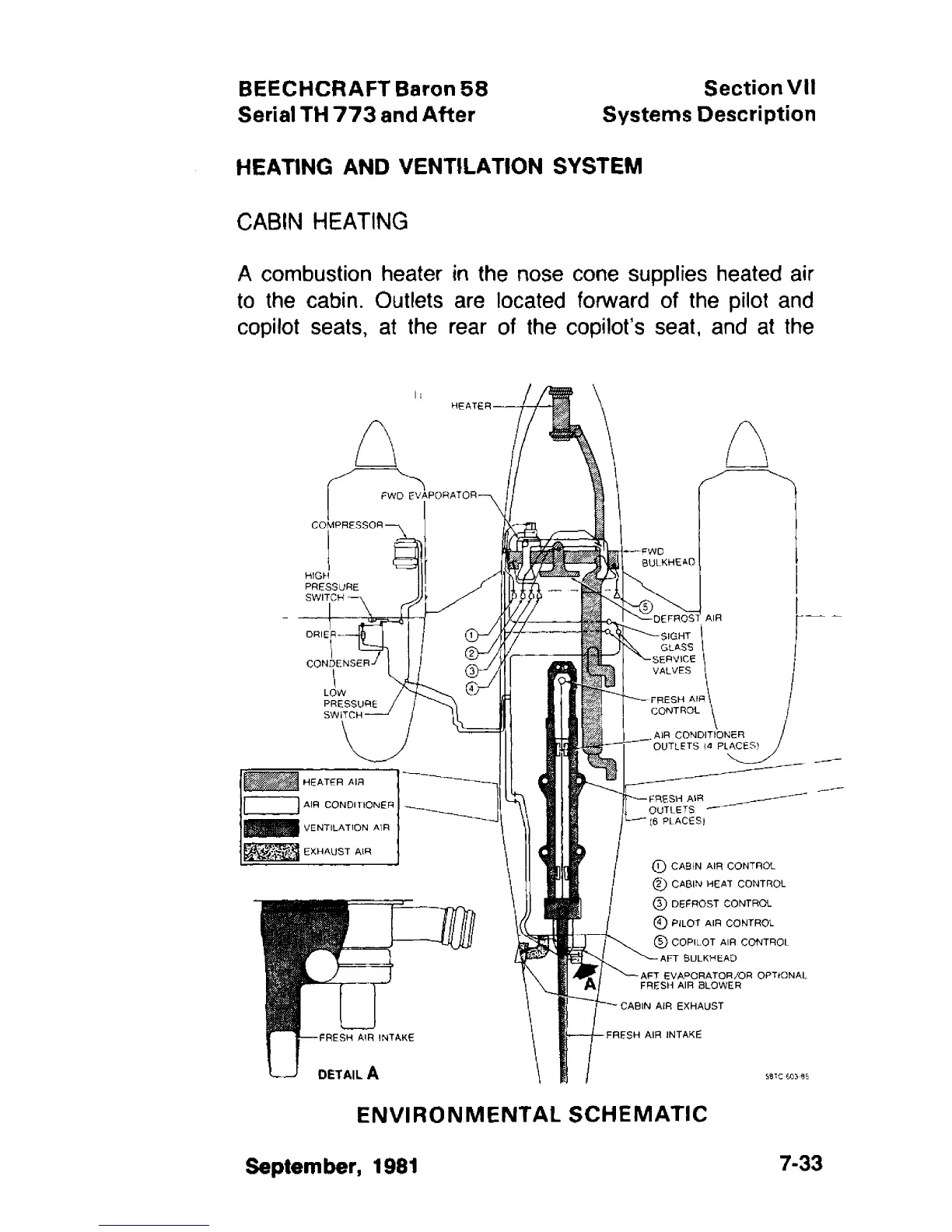

ENVIRONMENTAL SCHEMATIC
