Section I
General
BEECHCRAFT Baron 58
Serial TH 773 and After

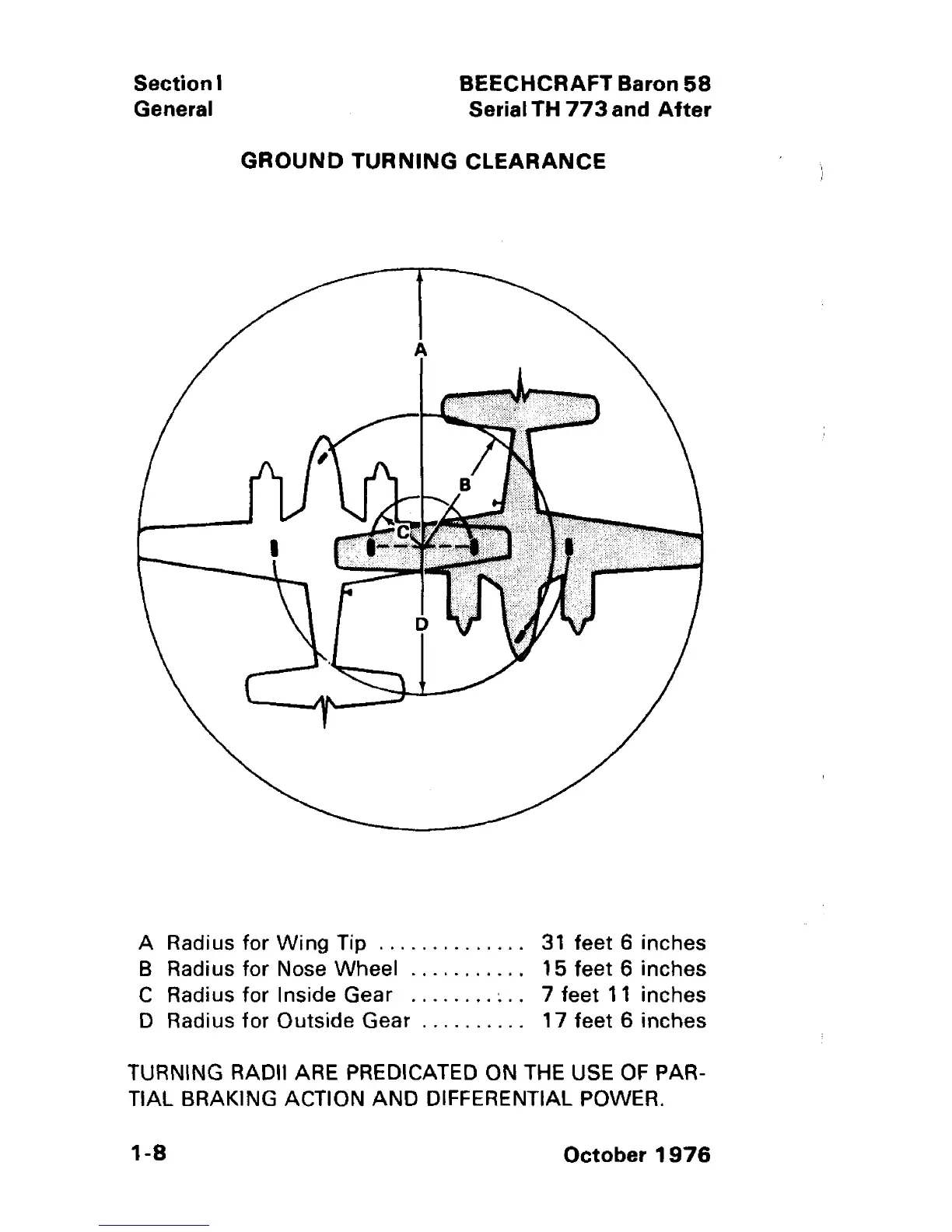

GROUND TURNING CLEARANCE
A
A Radius for Wing Tip. . . . . . . . . . . . .. 31 feet 6 inches
B Radius for Nose Wheel 15 feet 6 inches
C Radius for Inside Gear
~ .. 7 feet 11 inches
D Radius for Outside Gear 17 feet 6 inches
TURNING RADII ARE PREDICATED ON THE USE OF PAR-
TIAL BRAKING ACTION AND DIFFERENTIAL POWER.
1-8
October 1976
