BEECHCRAFT
Baron
58
Seriai TH
773 and
After
Section
VII
Systems
Description

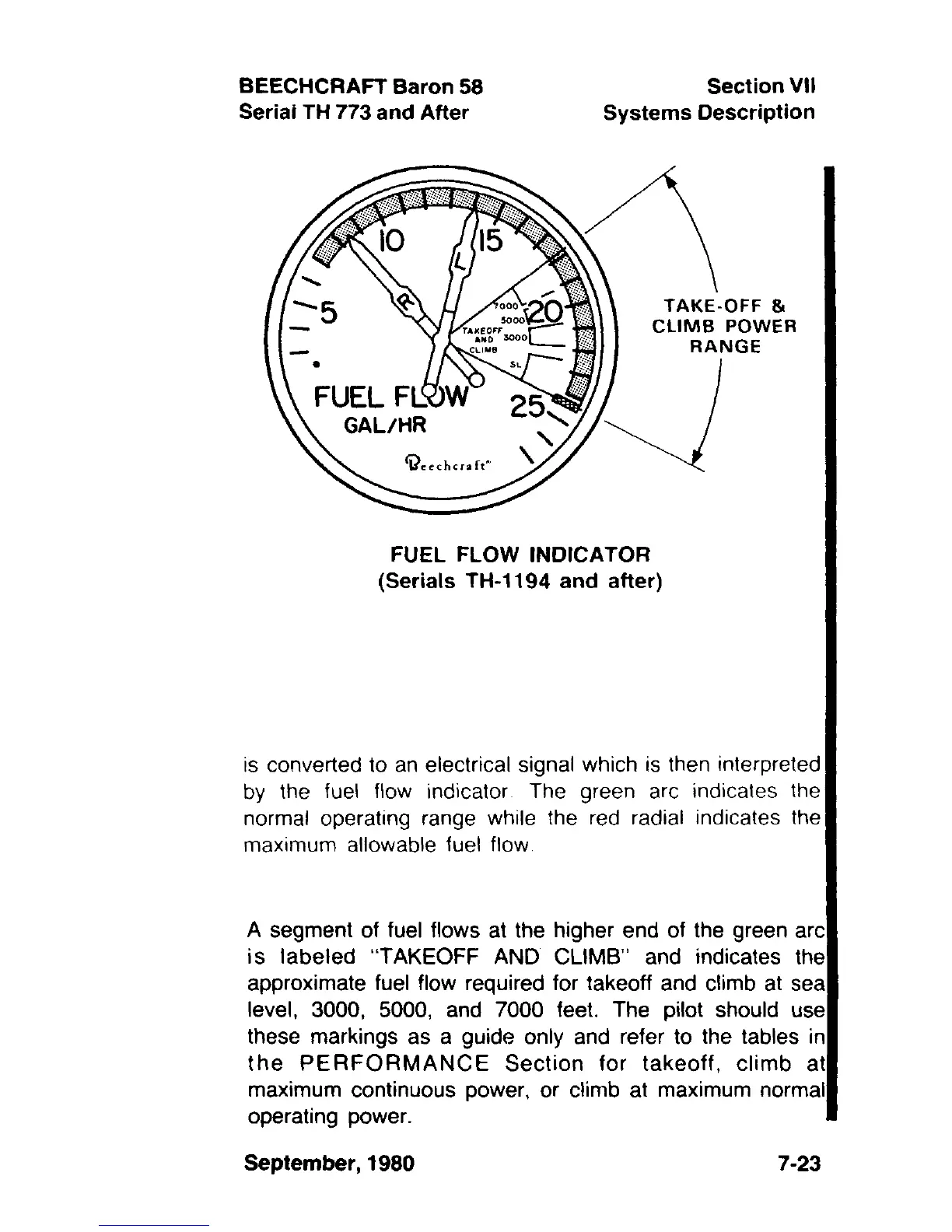

FUEL FLOW INDICATOR
(Serials TH-1194
and
after)
is converted to an electrical signal which is then interpreted
by the fuel flow indicator The green arc indicates the
normal operating range while the red radial indicates the
maximum allowable fuel flow
A segment of fuel flows at the higher end of the green arc
is
labeled
"TAKEOFF AND CLIMB" and indicates the
approximate fuel flow required for takeoff and climb at sea
level, 3000, 5000, and 7000 feet. The pilot should use
these markings as a guide only and refer to the tables in
the
PERFORMANCE
Section
for
takeoff,
climb
at
maximum continuous power, or climb at maximum normal
operating power.
September, 1980 7-23
