QUICKFIRE® WRAP AROUND
1MANUL825 Belanger, Inc. * 1001 Doheny Ct. * Northville, MI 48167 * Ph (248) 349-7010 * Fax (248) 380-9681 13
Installation
Tunnel Placement Overview

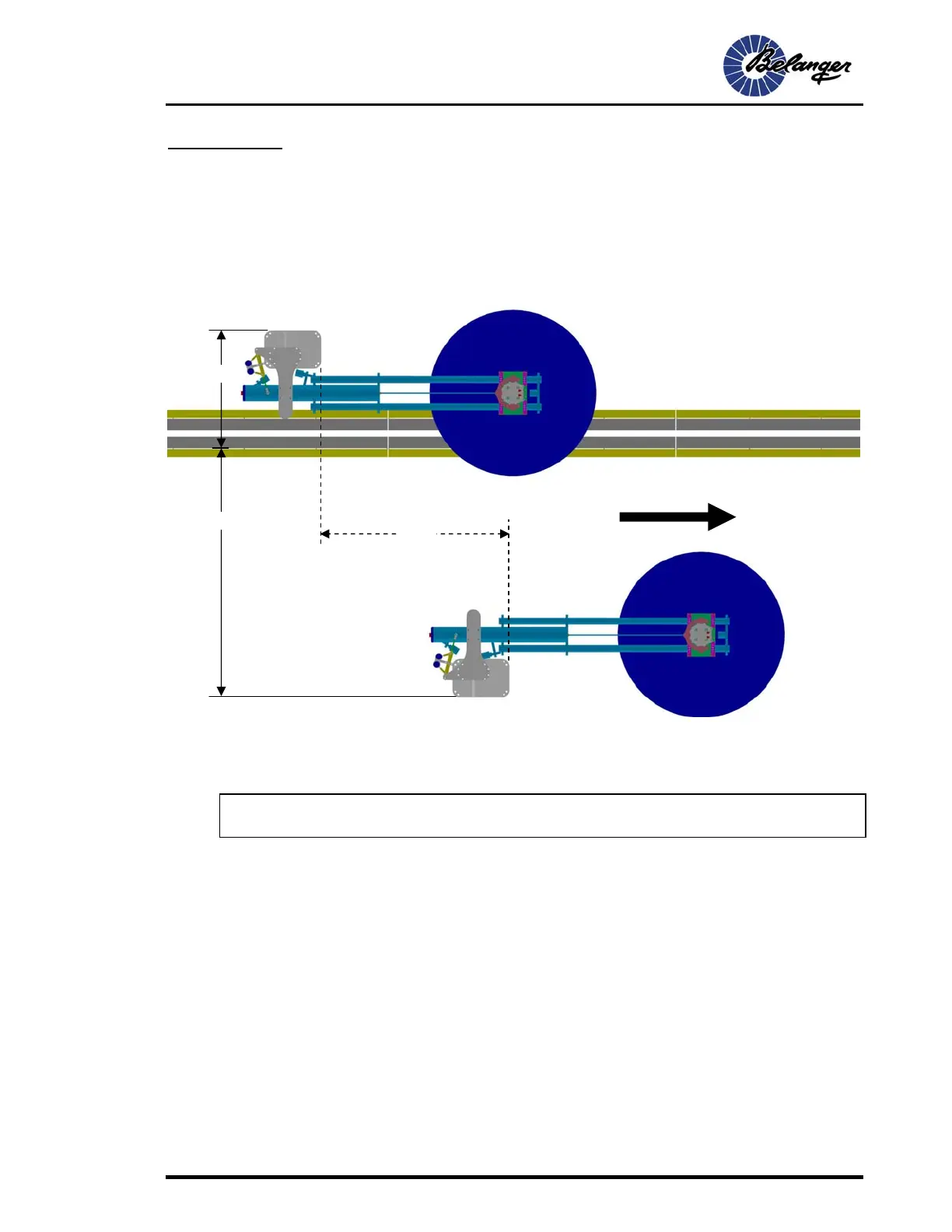

Standard, Standalone Configuration
Equipment around the Wrap should give ample room for the wheels to swing within the working
envelop
49-12” and the 103-1/2: dimensions are taken from the outside of base to the driver side edge of the inside guide rail
Heavy dotted lines show proper operating envelope
Note: Above image shown with booms and wash material installed to indicate operating
envelope required to function properly.
103-1/2"
Direction of Travel
49-1/2"
78-1/2"
Minimum
