QUICKFIRE® WRAP AROUND
14 Belanger, Inc. * 1001 Doheny Ct. * Northville, MI 48167 * Ph (248) 349-7010 * Fax (248) 380-9681 1MANUL825
Installation

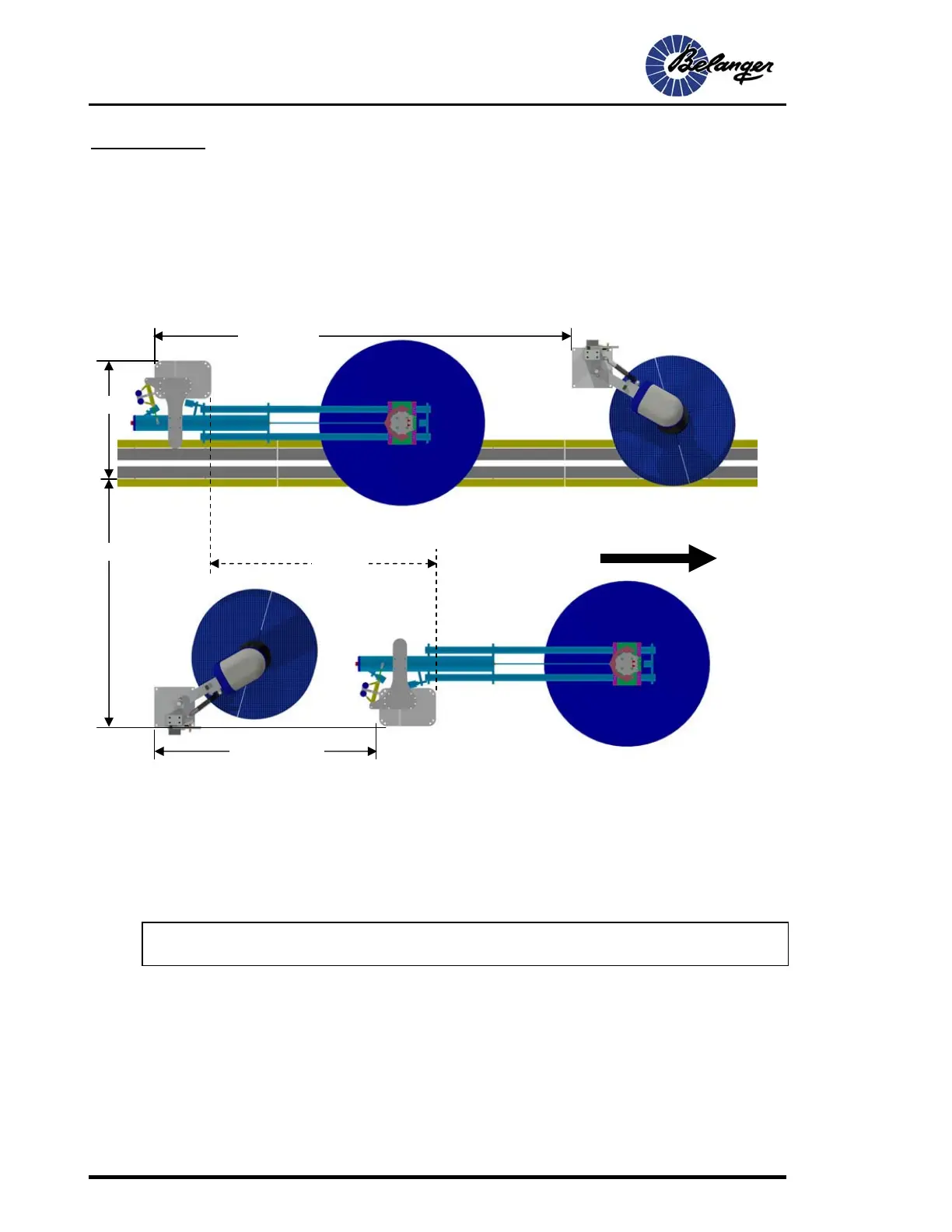

Tunnel Placement Overview
Staggered with a set of Wave Low Side Washers™
Equipment around the Wrap should give ample room for the wheels to swing within the working
envelope.
For more information and details on installation of the Low Side Washer, Refer
to the Low Side Washer manual.
Note: Above image shown with booms and wash material installed to indicate operating
envelope required to function properly.
150" minimum
78-1/2” minimum
Direction of Travel
103-1/2"
49-1/2"
78-1/2"
Minimum
LSW
LSW
