QUICKFIRE® WRAP AROUND
1MANUL825 Belanger, Inc. * 1001 Doheny Ct. * Northville, MI 48167 * Ph (248) 349-7010 * Fax (248) 380-9681 15
Installation

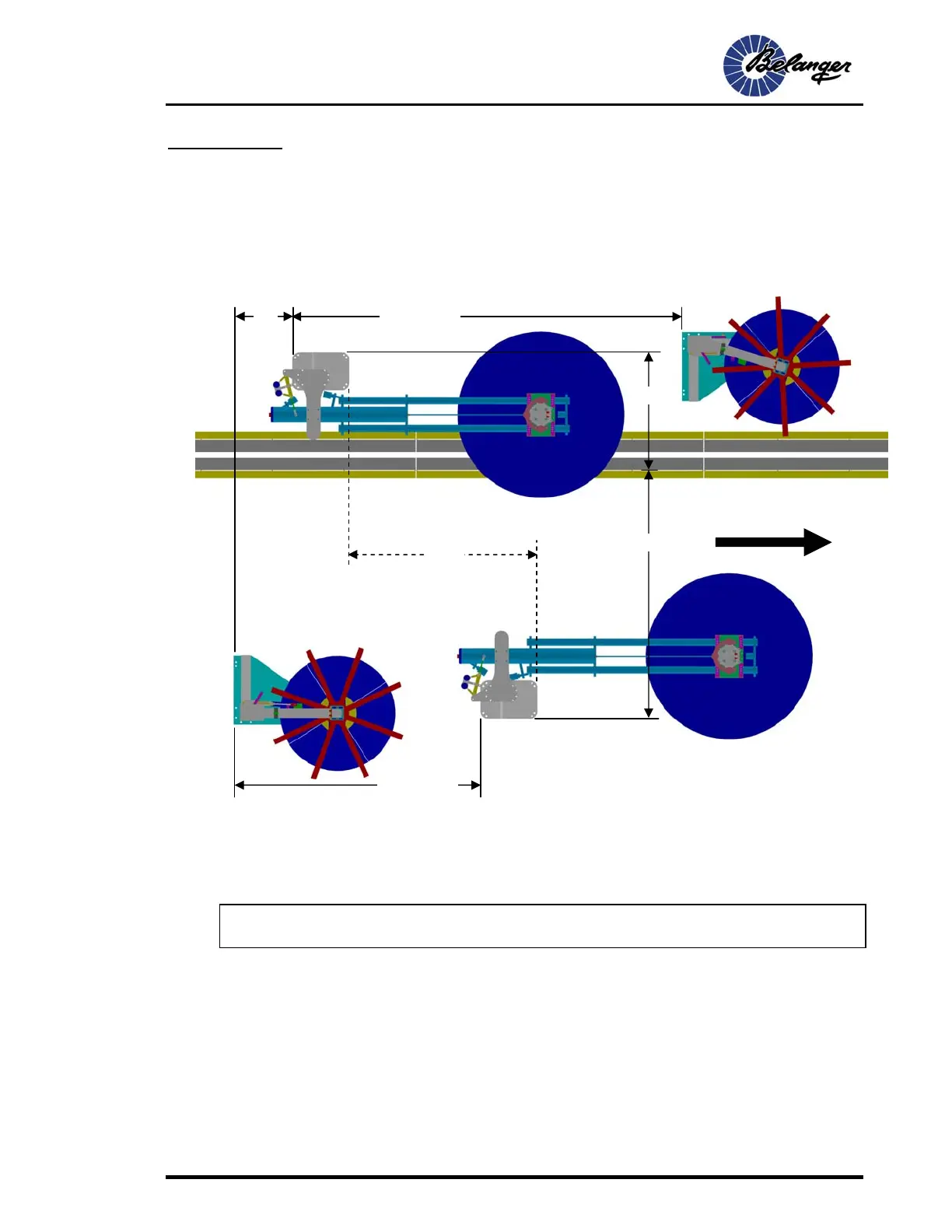

Tunnel Placement Overview
Staggered with a set of Wave Full Side Washers™
Equipment around the Wrap should give ample room for the wheels to swing within the working
envelope.
For more information and details on installation of the Full Side Washer, Refer
to the Full Side Washer manual.
Note: Above image shown with booms and wash material installed to indicate operating
envelope required to function properly.
103” minimum
24"
150" minimum
Direction of Travel
103-1/2"
49-1/2"
78-1/2"
Minimum
FSW
FSW
