18 Bend-Tech Dragon
Gate Troubleshooting
02
Troubleshooting Guide
2.2 Adjusting the Gate Eccentric Bearing
Tools Needed
•
•
•
•
Extension
•
•
2.2.1 Before Beginning
Power on the Dragon machine, and move the Toolhead up for easy access to the Gate.
Though the procedure for adjusting the Gate Eccentric Bearing is the same for both the
Powered Gate and Non-Powered Gate, there are a few additional steps when uninstalling and
installing the Powered Gate. For Non-Powered Gates, skip to 2.2.4.
Note
The Parts Catcher, Beak Assembly, and/or Coolant Trays may need to be removed before
uninstalling the Gate from the Dragon

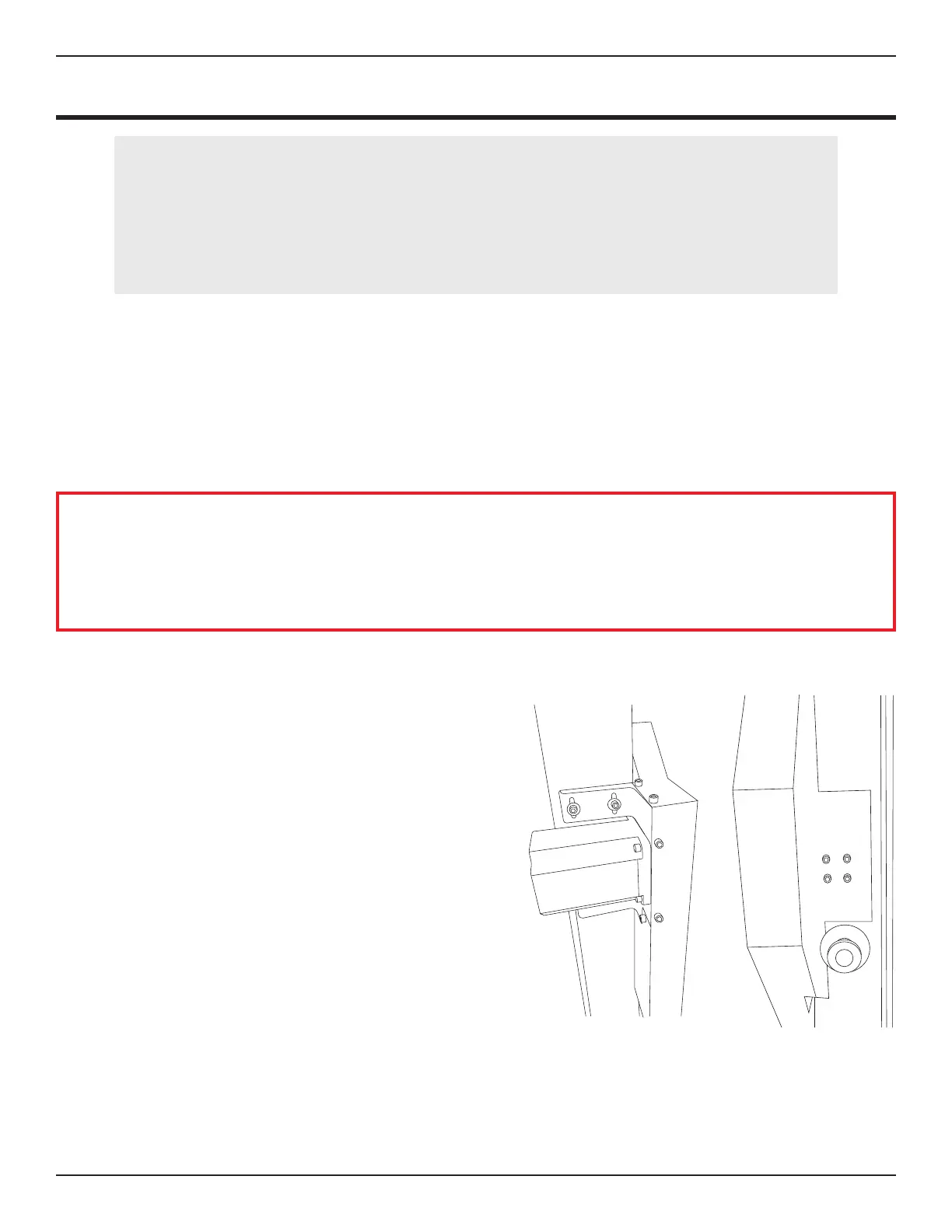

2.2.2 Remove Safety Guards (Powered Gate Only)
The safety guards are only installed on machines
with Powered Gates. Locate the Gate Ring Gear
Safety Guards on the right and left sides of the
Powered Gate.
in. wrench on the nut and remove the screws
