10.16.5 Ethernet Jack LED Lights

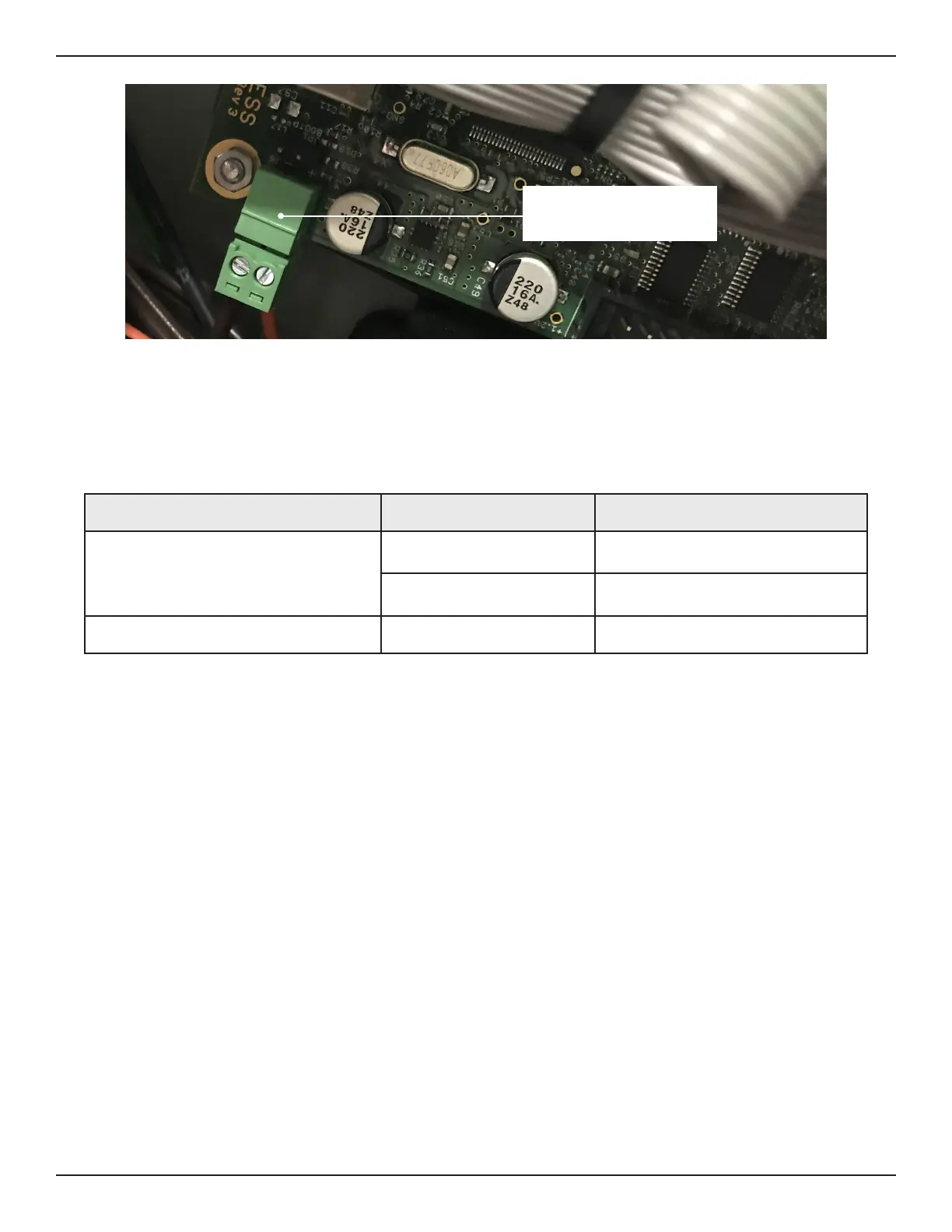

There are two lights at the port where the Ethernet cable connects to the ESS board. Knowing
the meaning and behavior of each color of the status lights can help the operator diagnose
connection problems between Mach3 and the Dragon.
Ethernet Jack LED
Amber Link Light
On
Cable is connected to a device (the
computer).
󰀨
No connection - bad cable or
Ethernet disabled on computer.
Green Data Light
Flashing Ethernet connected.
Plastic jumper on the
BootP pins (JP1)
