23Bend-Tech Dragon
Gate Troubleshooting
02
Troubleshooting Guide
2.4.7 Toolhead Level
This step is no longer necessary because the machine is leveled during the installation
process at the Bend-Tech.
Click NEXT to skip this step.
2.4.8 Chuck

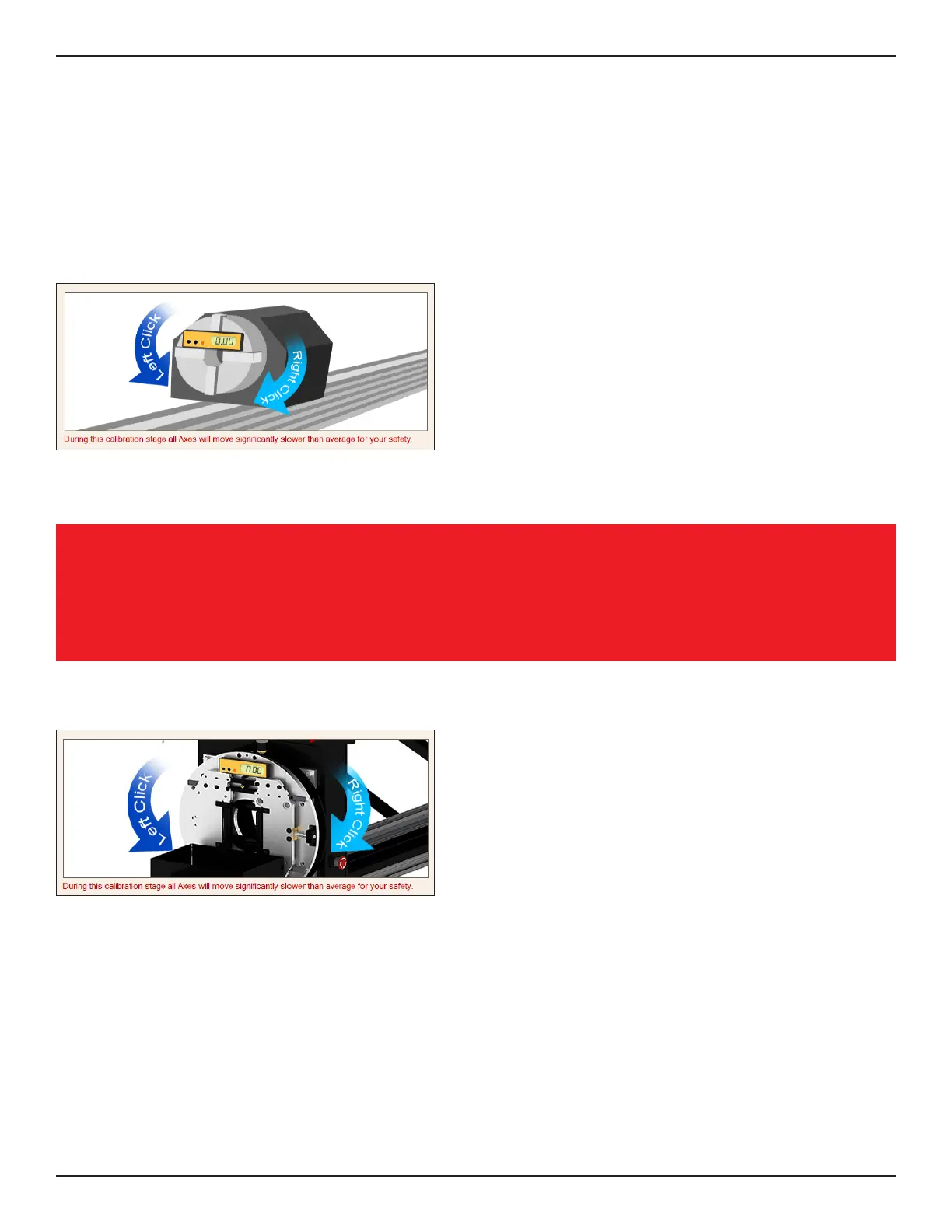

Calibrating the Chuck requires placing a small level



With the Chuck head calibrated to level it is now
synchronized with the tool head. This is critical when
performing cutting procedures.
Once this is done, click NEXT.
Important
When leveling the Chuck ensure the key is in the 2 o’clock position.
2.4.9 Powered Gate
Calibrating the Powered Gate requires the user to
place a level on the Gate. As indicated on the screen,
the best place to do this is by placing the level on the
Gate as shown in the image on the screen. Use the
right and left mouse buttons to jog the Powered Gate
into a level position.
Click NEXT. Click DONE. Close out of the calibration feature. The machine is now ready to process
angle or channel material.
