Mounting
19
NGRM7xx_D00292_07_M_XXEN/02.2022

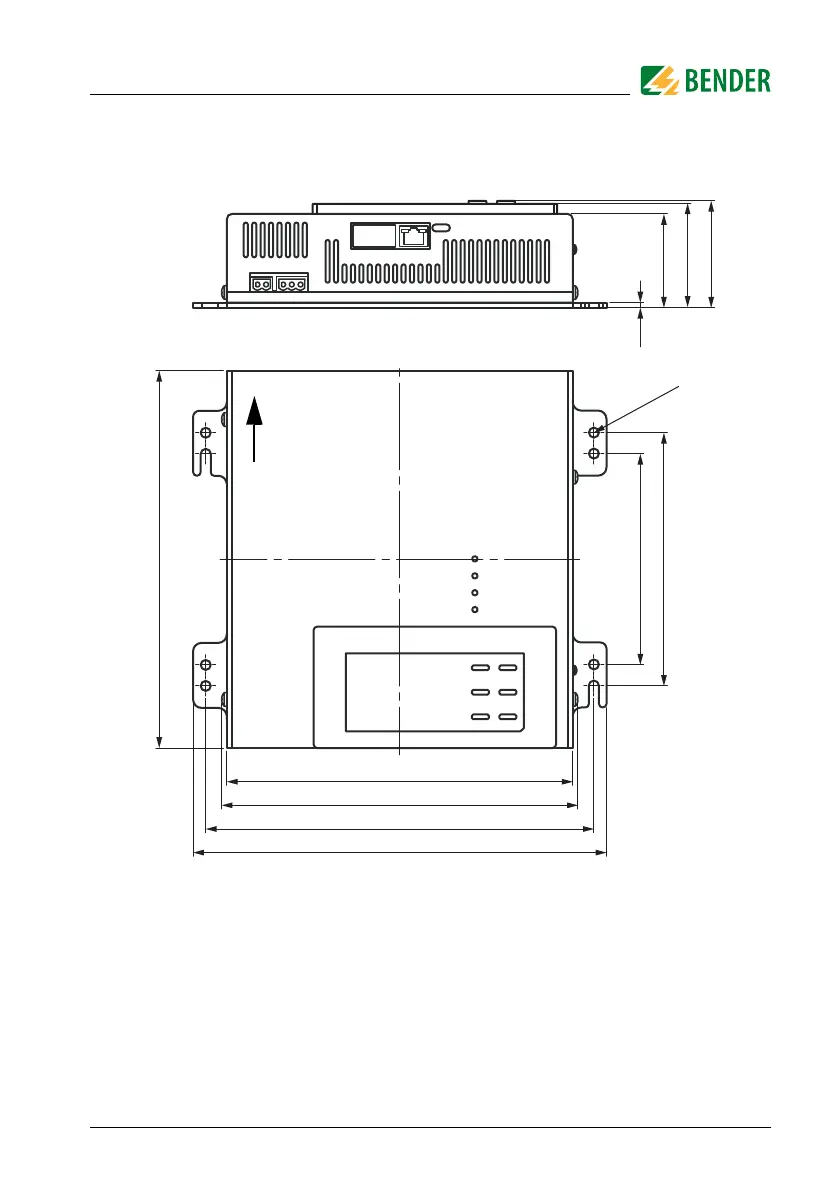

4.2.2 Dimension diagram NGRM7…
Abb. 4.2: Dimension diagram and mounting position NGRM7…; mm(in)
55.50 (2.19)
230 (9.06)
211 (8.31)
205 (8.07)
150 (5.91)
125 (4.92)
223.50 (8.80)
ø 6 (0.236)
3 (0.12)
63.35 (2.49)
61.40 (2.42)
245 (9.65)
Mounting
position
Top
