Mounting
21
NGRM7xx_D00292_07_M_XXEN/02.2022
4.5 Door mounting

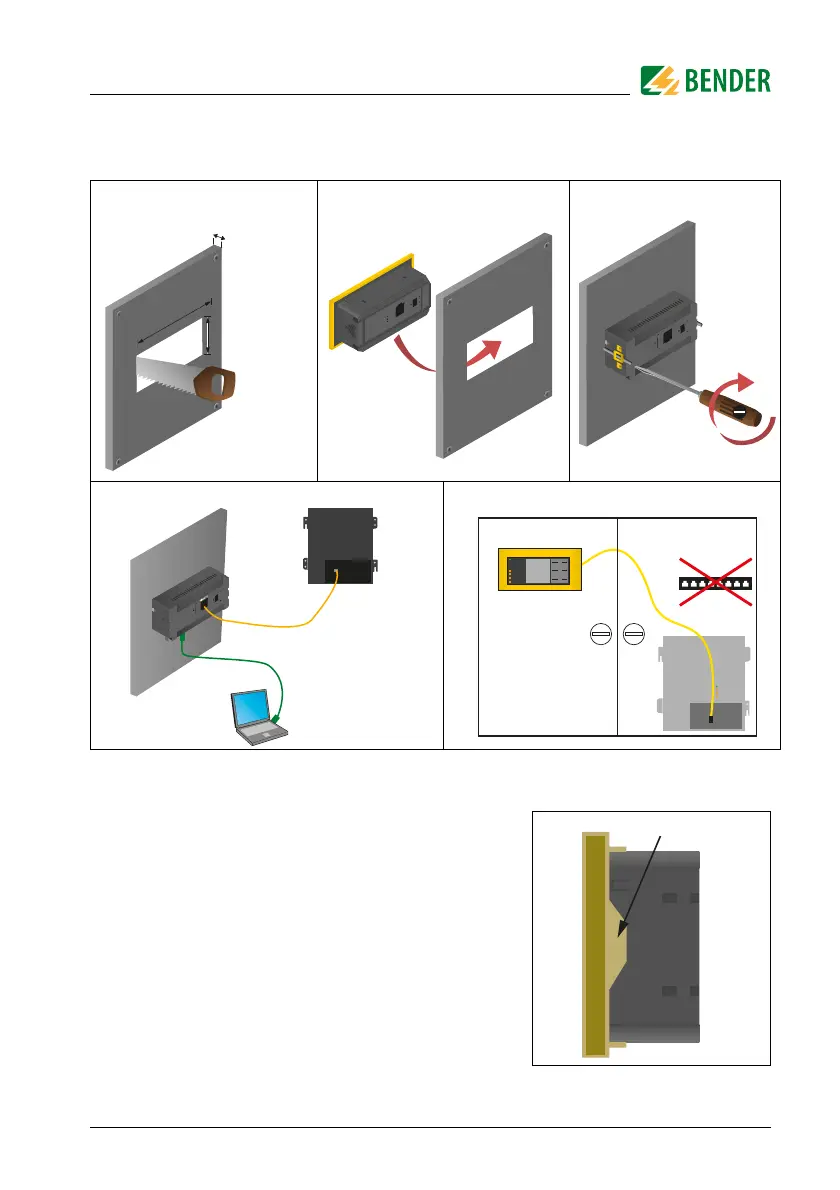

Fig. 4.5: Door mounting
4.6 Front cover for FP200-NGRM
When installed in doors, the degree of protec-
tion of the FP200-NGRM operator unit can be
increased to IP65 by means of the transparent
front plate cover (B98060005).
Place the front cover over the yellow front of
the FP200-NGRM before installing it.
1
2
3
4
5
*IP 65:
68+0,7/-0 mm
max. 5,3 mm
138+0,5/-0 mm
66+0,5/-0 mm*
0,3 Nm ± 10 %
RJ45:
Remote
RJ45:
Ethernet
TRIPPED
NGR FAULT
GROUND FAULT
ON
SERVICE
TRIPPED
NGR FAULT
GROUND FAULT
ON
MENU
RESET
DATAINFO
<
<
<
<
OK
ESC
TEST
Remote:
max. 5 m
Switch
B98060005
