Bender NGRM700 User Manual

Connection
31
NGRM7xx_D00292_07_M_XXEN/02.2022

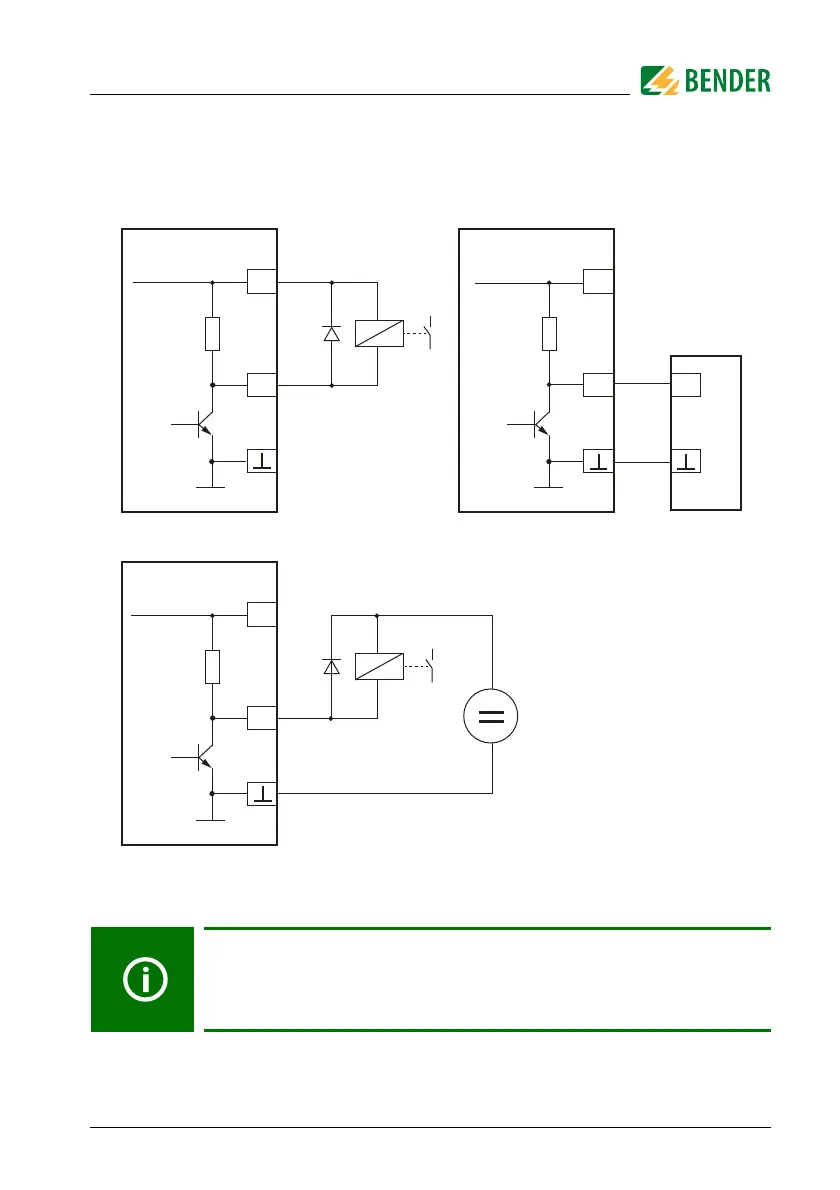

5.6.2 X1: Output Q1…2
Connection to Q1, Q2: external relay or PLC
Observe maximum current values!
The maximum output current on X1(+24 V) is 100 mA.
In case of higher currents, the relays require an external 24-V supply.
The maximum current on Q1 and Q2 is 300 mA each.
Pull up
10 kΩ
FP200-NGRM X1
+24 V,
max. 100 mA
+
Q
max. 300 mA,
24 V
Pull up
10 kΩ
FP200-NGRM X1
+24 V,
max. 100 mA
+
Q
max. 300 mA,
24 V
+
Pull up
10 kΩ
FP200-NGRM X1
+24 V,
max. 100 mA
+
Q
In
Internal 24 V
External supply e.g.12...24 V
Connection to PLC
PLC
