Connection
30
NGRM7xx_D00292
_07_M_XXEN/0
2.2022
5.6.1

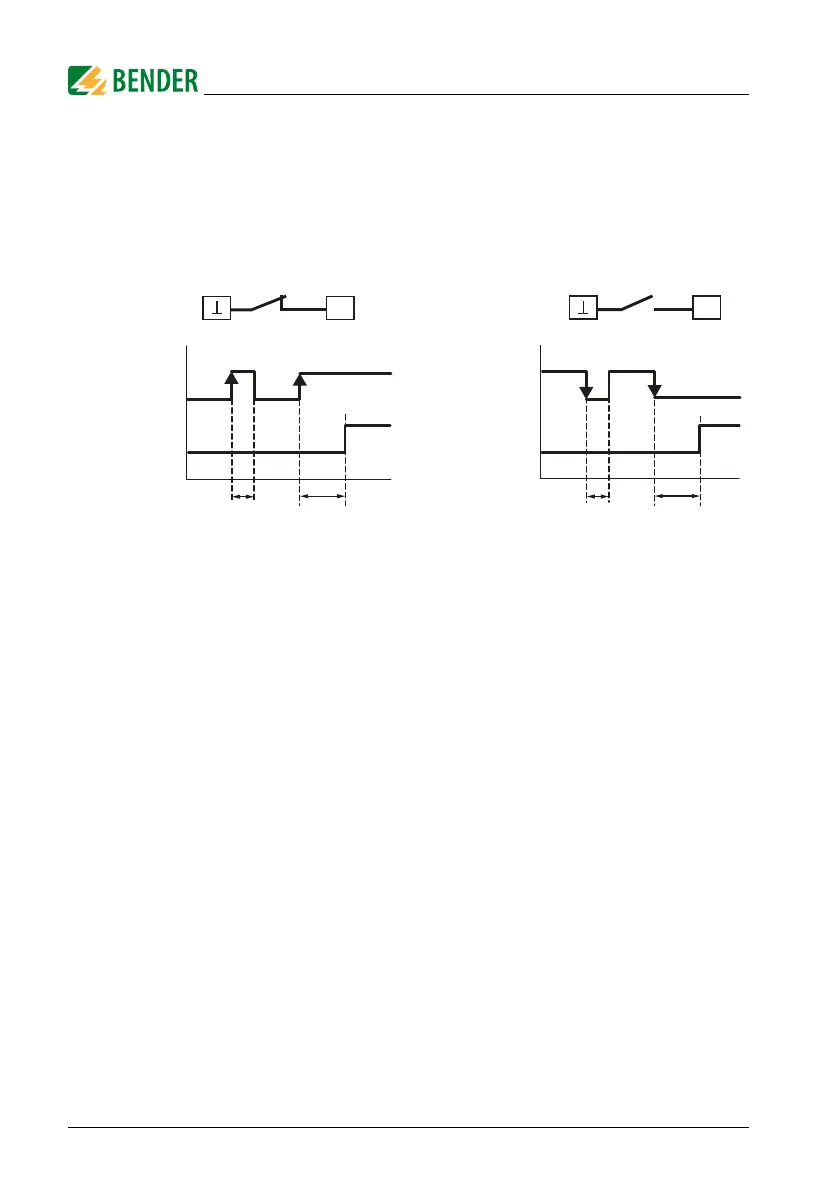

X1: Input I1…3
The input is only detected as "a
ctivated" afte
r the contact has been activated for a
t least
150 ms. This way, short interference pulses are ignored.
Input I1…3:
Potential-free contact to ground or
0 V and 24 V in conjunction with a PLC
< 150 ms
>150 ms
I1…3
X1
X1
I1…3
X1
X1
< 150 ms
>150 ms
open
Switch
closed
active
passive
open
closed
active
passive
Switch
Active low
Active high
Digital 1,
Reset,
Te
s
t
Digital 1,
Reset,
Te
s
t
29
31
