44
NGRM7xx_D00292_07_M_XXEN/02.2022

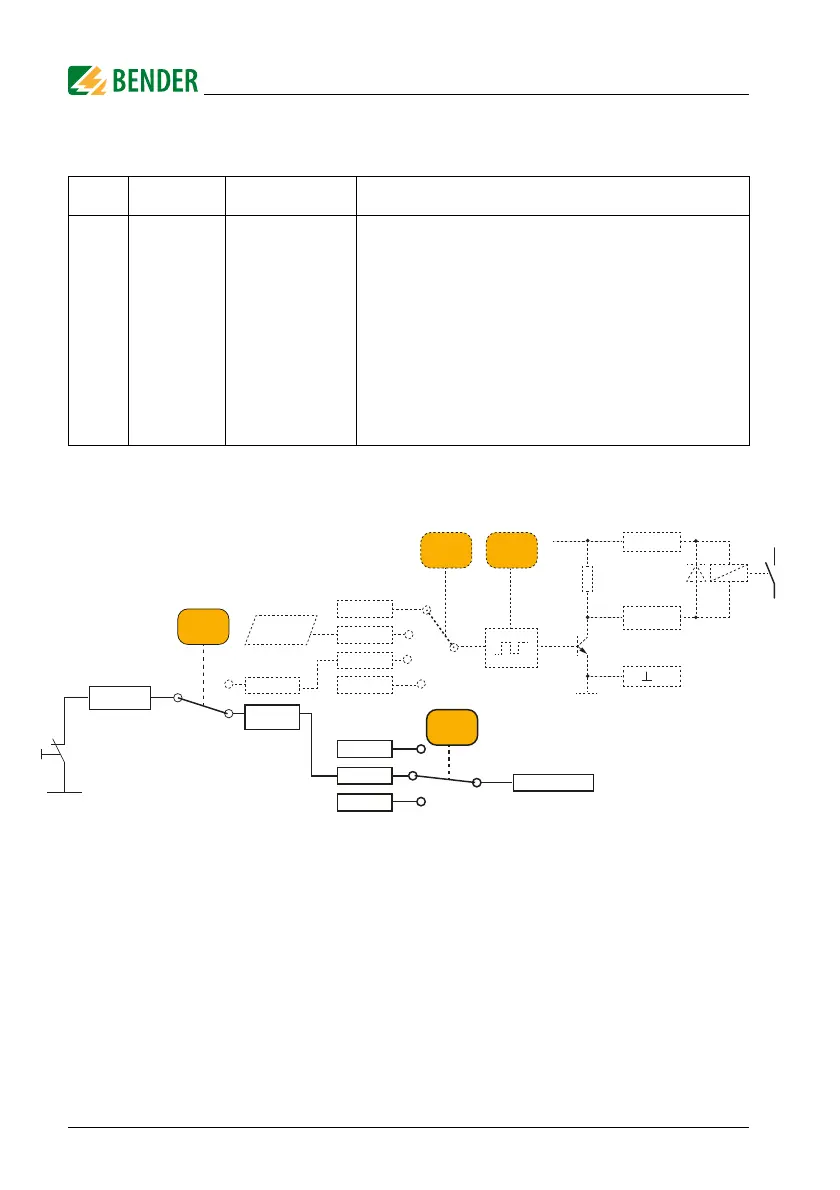

7.9.3 NGR (menu 6.3)
Tab. 7.4: NGR (menu 6.3)
Fig. 7.2: Configuration Digital 1 as NGR method
Menu Parameter Setting range Explanatory notes
6.3.1 Method
auto, passive,
external
auto: automatic changeover between active and
passive resistor monitoring;
setting for field calibration
passive: only passive resistor monitoring (see
page 15)
external: If "Digital 1 > NGR method" (menu 6.6.5.3)
is set, switching takes place depending on the con-
dition of the digital input I1:
I1 active: method is set to "auto"
I1 passive: method is set to "passive"
Pull up
10 kΩ
X1: GND
X1: +24 V
Parameter
Pulser
Parameter
Digital 1
Parameter
t
(impuls)
1...10 s
Auto
Auto
Extern
Ground fault
detected
Dig. Output
X1: Q2
Active (ON)
Inactive (OFF)
Dig. Input
X1: I1
External
Enable
Pulser
NGR
Method
NGR measurement
Parameter
NGR
Method
Passive
