Benelli 502C - Indicator Lights and Gauges

3 - 3
Instrument and control functions
EN
3

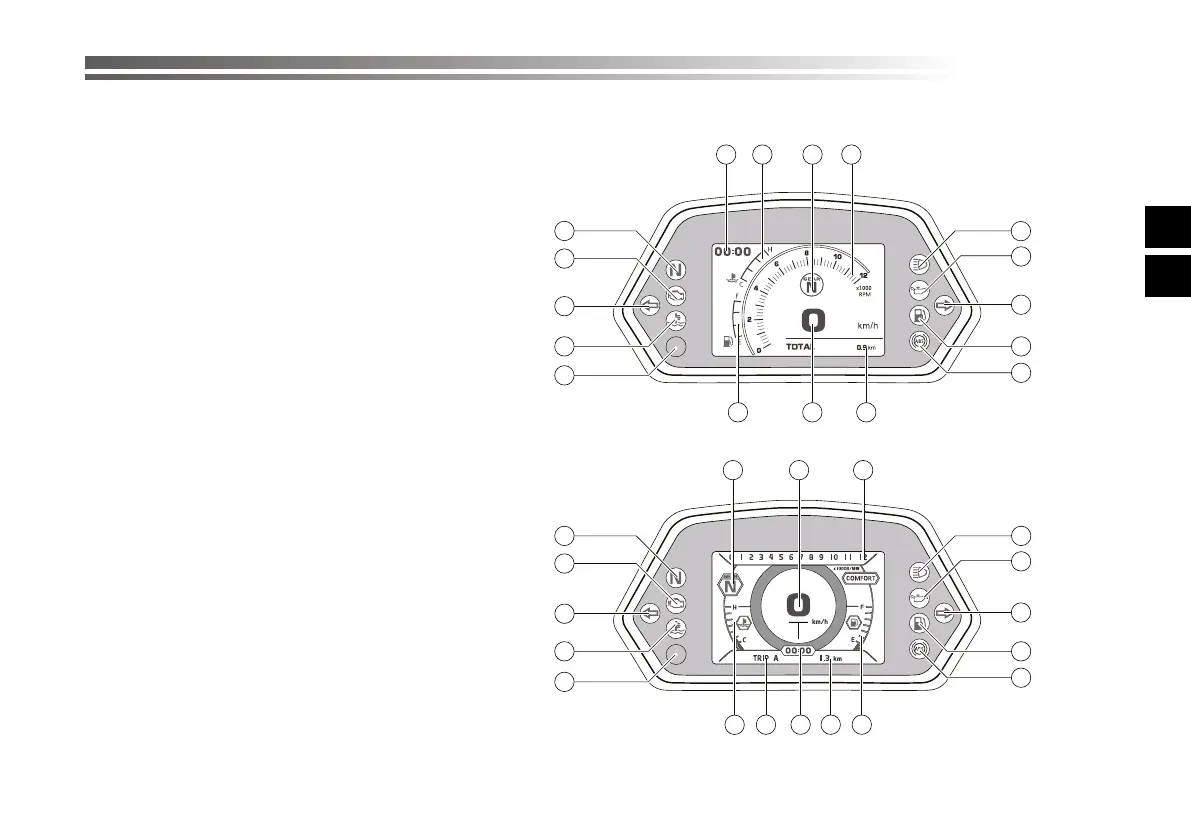

Multi-function meter unit and
Indicator lights and warning lights
1. LH direction indicator light
2. RH direction indicator light
3. High beam indicator light
4. Neutral indicator light
5. Water temperature warning lamp
6. Total kilometre counter
7. Water temperature indicator
8. Gear engaged indicator light
9. Tachometer
10. Speedometer
11. Oil pressure warning light
12. Partial kilometre counter
13. Fuel reserve warning light
14. Digital clock
15. Engine fault indicator light
16. Fuel gauge
17. ABS warning light
18. Photosensitive switch
1
2
1
2
4
3
1 5
5 1 3
1 7
1 4 7
7
6
8
8
9
91 0
1 6
1 61 2 1 4
1 0 6
1 1
4 3
1 5
5
1 8
1 8
1 3
1 7
1 1
Daytime mode
Night mode
