Periodic maintenance and adjustment
Checking the front and rear brake
pads
The front and rear brake pads must be
checked for wear at the intervals specied
in the periodic maintenance and lubrication
chart.
Front brake pads
Each front brake pad is provided with wear in-
dicators, which allows you to check the brake
pad wear without having to disassemble the
brake. To check the brake pad wear, check the
position of the wear indicators while applying
the brake.
If a brake pad has worn to the point that a
wear indicator almost touches the brake disc,
have a Benelli dealer replace the brake pads
as a set.
Rear brake pads
Each rear brake pad is provided with wear in-
dicator grooves, which allow you to check the
brake pad wear without having to disassem-
ble the brake.
To check the brake pad wear, check the wear
indicator grooves. If a brake pad has worn to
the point that a wear indicator groove almost
appears, have a Benelli dealer replace the bra-
ke pads as a set.
Checking the brake uid level
Before riding, check that the brake uid is
above the minimum level mark.
Check the brake uid level with the top of the
reservoir level.
Replenish the brake uid if necessary.

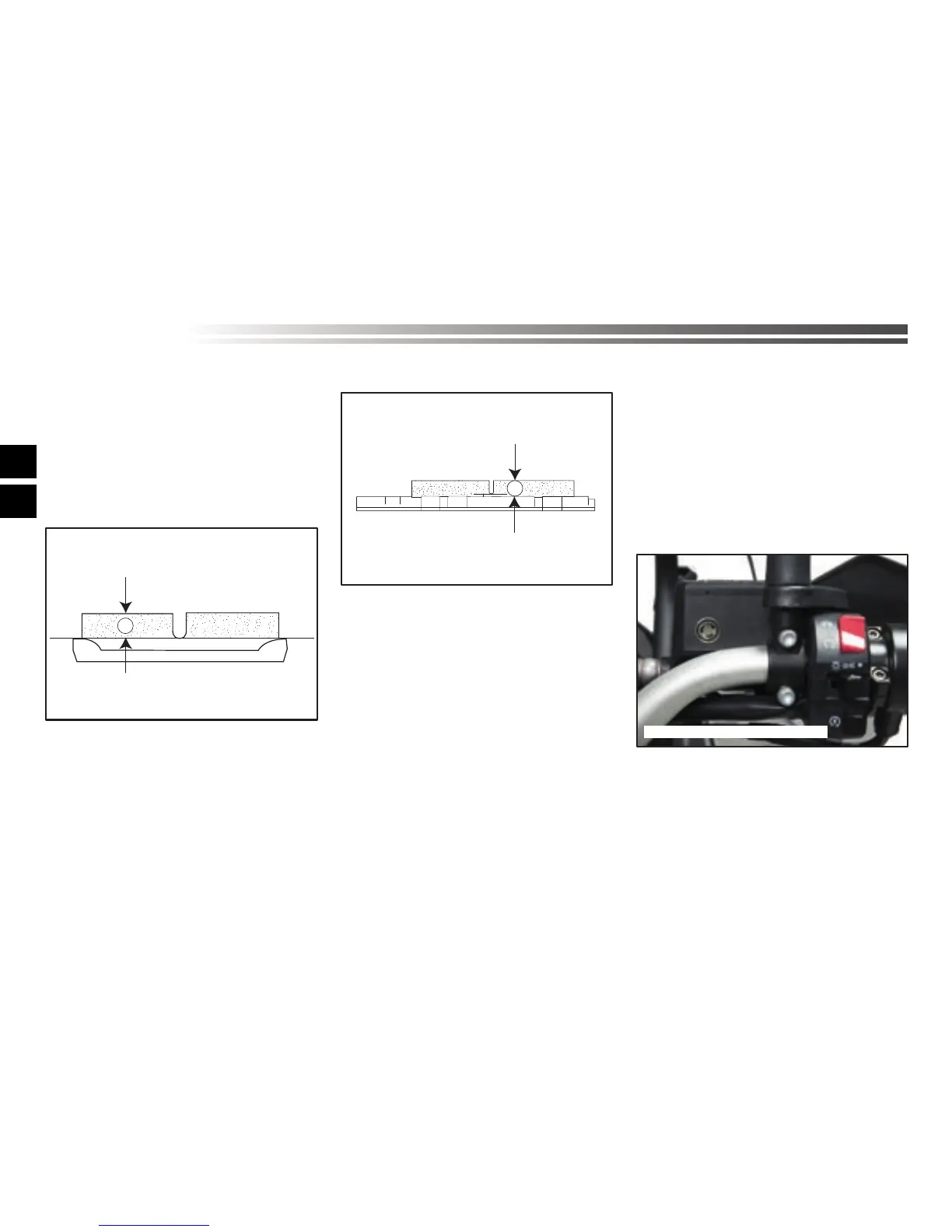

Front brake
1
1. Brake pad wear indicator
1
1. Brake pad wear indicator
Front brake uid reservoir

Benelli TRK 502 Specifications

General

Displacement	500 cc
Transmission	6-speed
Fuel Tank Capacity	20 liters
Seat Height	800 mm
Wet Weight	235 kg
Bore x Stroke	69 mm x 66.8 mm
Compression Ratio	11.5:1
Clutch	Wet multi-plate
Frame	Steel trellis
Wheelbase	1505 mm
Ground Clearance	190 mm
Max Power	47.6 hp (35 kW) @ 8500 rpm
Max Torque	46 Nm @ 6000 rpm
Front Suspension	50 mm upside-down fork
Front Brake	Double floating discs, 320mm, 4-piston calipers
Rear Brake	Single 260 mm disc
Fuel System	Electronic Fuel Injection (EFI)
ABS	Dual-channel ABS
Front Tire	120/70 R17
Rear Tire	160/60 R17
Engine Type	Liquid-cooled, four-stroke, parallel twin cylinder, DOHC, 4 valves per cylinder
