Benelli TRK 502 User Manual

Instrument and control functions
3 - 1
EN
3

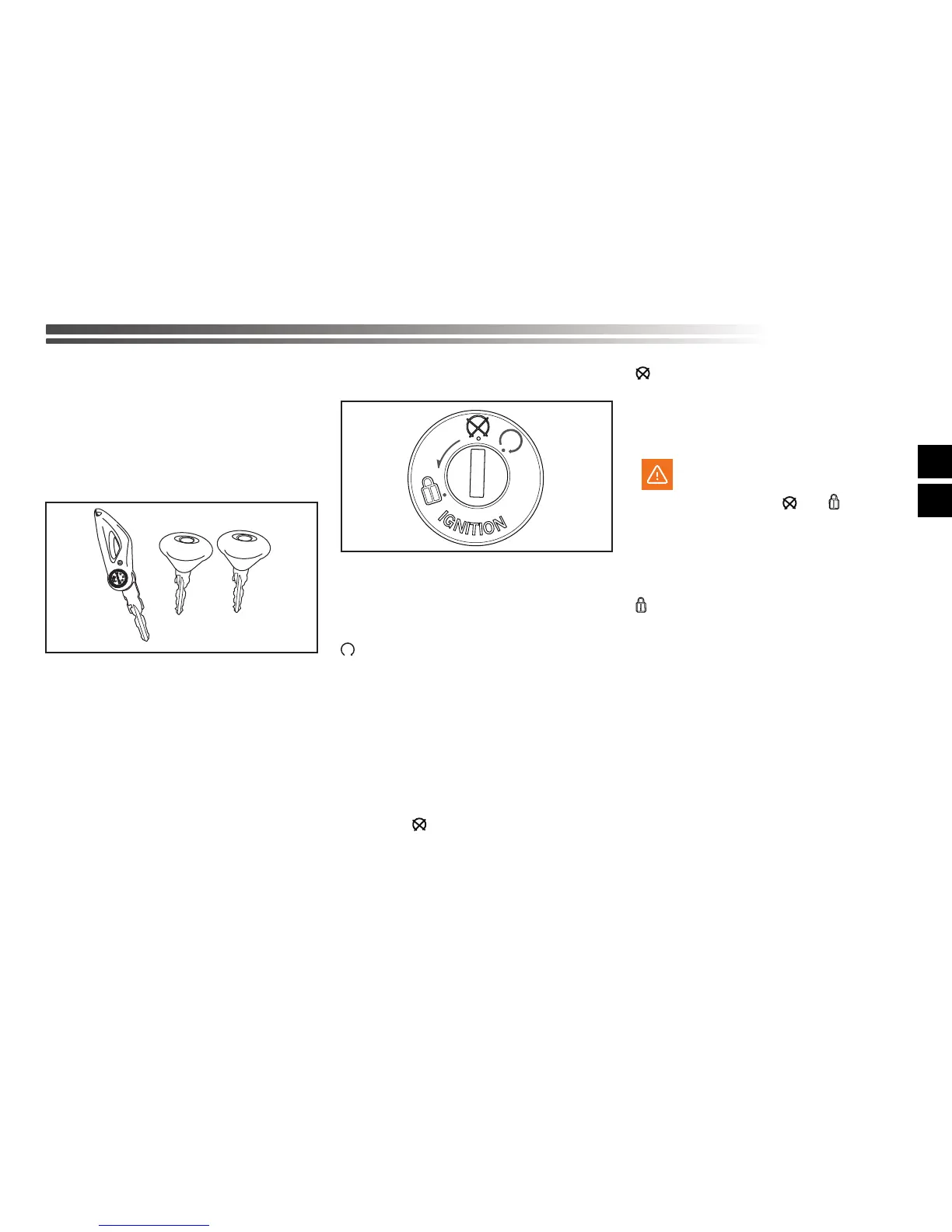

Key
The bike is supplied with 3 keys for:
- Opening the fuel cap
- Steering lock
- Ignition
- Opening the saddle
NOTICE
• Do not submerse any key in water.
• Do not expose any key to excessively
high temperatures.
• Do not place heavy items on any key.
• Do not grind any key or alter its sha-
pe.
• Do not disassemble the plastic part of
any key.
• Always keep duplicate keys separa-
tely from the bike
Main switch/steering lock
The main switch/steering lock controls the
ignition and lighting systems, and is used to
lock the steering.
The various positions are described below.
(on)
All electrical circuits are supplied with power.
The meter lighting, taillight, license plate light
and auxiliary lights come on, and the engine
can be started. The key cannot be removed.
TIP
The headlights come on automatically when
the engine is started and stay on until the key
is turned to .
(o)
All electrical systems are o.
The key can be removed.
WARNING
Never turn the key to “ ” or “ ” while the
vehicle is moving. Otherwise the electrical
systems will be switched o, which may re-
sult in loss of control or an accident.
(lock)
The steering is locked and all electrical sy-
stems are o. The key can be removed.
P
U
S
H
NOTE
.............................................................................................................................................................................................................
.............................................................................................................................................................................................................
.............................................................................................................................................................................................................
.............................................................................................................................................................................................................
.............................................................................................................................................................................................................
.............................................................................................................................................................................................................
.............................................................................................................................................................................................................
.............................................................................................................................................................................................................

Benelli TRK 502 Specifications

General

Displacement	500 cc
Transmission	6-speed
Fuel Tank Capacity	20 liters
Seat Height	800 mm
Wet Weight	235 kg
Bore x Stroke	69 mm x 66.8 mm
Compression Ratio	11.5:1
Clutch	Wet multi-plate
Frame	Steel trellis
Wheelbase	1505 mm
Ground Clearance	190 mm
Max Power	47.6 hp (35 kW) @ 8500 rpm
Max Torque	46 Nm @ 6000 rpm
Front Suspension	50 mm upside-down fork
Front Brake	Double floating discs, 320mm, 4-piston calipers
Rear Brake	Single 260 mm disc
Fuel System	Electronic Fuel Injection (EFI)
ABS	Dual-channel ABS
Front Tire	120/70 R17
Rear Tire	160/60 R17
Engine Type	Liquid-cooled, four-stroke, parallel twin cylinder, DOHC, 4 valves per cylinder
